Allen Products/Adaptive Technologies BC7-12-GE
Gimbaled Style Beam Clamp

OUR PART #:  BC7-12-GE

Standard, pre-engineered channel style beam clamps anchor to a building’s beam structure to provide a safe and predictable method of rigging grids, clusters...
Learn More
Our Price: $440.00
List Price: $550.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Allen Products/Adaptive Technologies BC7-12-GE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

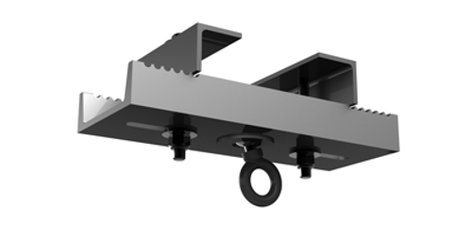

Standard, pre-engineered channel style beam clamps anchor to a building’s beam structure to provide a safe and predictable method of rigging grids, clusters, arrays and other objects. The BC7-12-GE Gimbaled Style beam clamp from Allen Products is unique in that it offers a gimballed swivel eye that accommodates up to 20° of off-axis side loading in any direction without losing any of its working load. The gimbaled feature is especially predictable when bridling suspended objects from wire rope, rigging chain, span sets, etc. The body of the clamp mounts flush underneath the building’s I-beams and side clamps adjust to accommodate beam flange widths between 7" and 12".

Allen Products BC7-12-GE Includes:

  • 16" Channel
  • Two Lock/Angle Brackets
  • 5/8" Eyebolt
  • Swivel Ball
  • Five Flatwashers
  • Two Nyloc Nuts
  • Hex Nut
  • Two Hex Bolts
  • Two 1/4" Spacers
  • Two 1/2" Spacers
  • Two 1" Spacers

Allen Products BC7-12-GE Features:

  • For Beam Flanges 7" - 12"
  • Accomadates thicker beam flanges
  • Gimballed hang point swivels 360°
  • Hang point retains same WLL from 0° - 20°
  • Non loosening fasteners

Allen Products BC7-12-GE Specifications:

  • Materials: Alloy Steel Components
  • Width: 7" to 12" (178 mm to 305 mm)
  • Color: Black
  • Design Factor: 5:1
  • Vertical WLL: 2000 lbs (908 kg) WLL (Vertical)
  • 20Âş WL: 2000 lbs (908 kg) WLL
  • 45Âş WL: 1200 lbs (545 kg)
  • 90Âş WL: Do Not Exceed 65°
