Studio Monitor Bundle, (2) A8X and (1) Sub 12, Matched

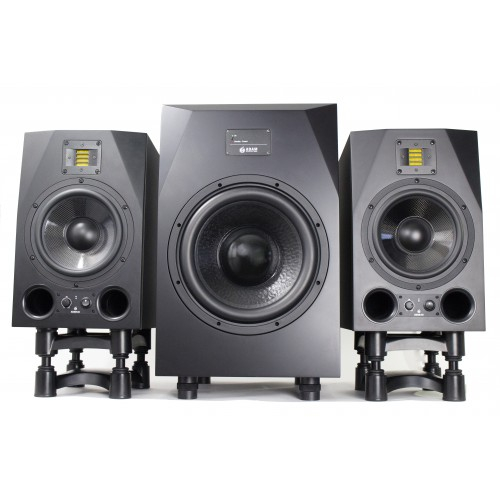

The ADAM Audio BUNDLEA8XSUB12 is a studio monitor bundle that comes with (2) A8X monitors and (1) Sub12 subwoofer.
Learn More
Our Price: $3,499.97
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

The ADAM Audio BUNDLEA8XSUB12 is a studio monitor bundle that comes with (2) A8X monitors and (1) Sub12 subwoofer.
The A8X adds to the AX-Series as a unique model because its power and radiation characteristics allow it to be used as both a nearfield and midfield monitor. It represents a particularly attractive entry-level model for midfield monitoring which offers transparent reproduction of higher frequencies, clear mids and an excellent transient response.

The extra-large, front-positioned bass reflex ports are perfectly matched with the bass/midrange driver that has a 1.5" voice coil. Thus the A8X can play very low registers with a powerful punch, and the greatest possible precision. The 150 Watt PWM amplifier for the midrange speakers in conjunction with the 50 Watt A/B tweeter amp enable the A8X to generate impressive maximum sound pressure levels of 120dB per pair at one meter.

The Sub12 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 22Hz.

A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.

The Sub12 subwoofer provides a precise combination of low cutoff frequency (-3dB at 22Hz) and an undistorted high sound pressure level (115dB SPL at 1m).

ADAM Audio A8X Features:

  • X-ART tweeter
  • 8.5” carbon/rohacell/glass fiber-midwoofer
  • 50W/150W amplification
  • On-/off-switch and volume gain on the front
  • Tweeter gain and 2 shelf filters on the rear panel
  • 38 Hz – 50 kHz
  • XLR & RCA connectors
  • 120 dB max peak SPL per pair

ADAM Audio A8X Specifications:

  • Frequency response: 38 Hz - 50 kHz
  • THD 90dB/1m > 100 Hz: </= 0.5 %
  • Max SPL with sine wave acoustic 100 Hz to 3 kHz at 1m: >/= 112 dB
  • Max SPL per pair at 1m: >/= 120 dB
  • Crossover frequencies: 2300 Hz
  • Input impedance: 30 KOhm
  • Weight: 28.7 lb (13 kg)
  • Magnetically shielded: No
  • Dimensions (H x W x D): 15.5 x 10 x 12.5" (400 x 255 x 320 mm)

ADAM Audio Sub12 Features:

  • Extended cone travel
  • Heavy-duty coil
  • Low cutoff frequency (-3 dB at 22 Hz)
  • Both balanced (XLR) and unbalanced (RCA) input/output connectors

ADAM Audio Sub12 Specifications:

  • Panel: Rear
  • Frequency Response: 22 Hz – 150 Hz
  • THD > 60 Hz: </= 1%
  • Peak SPL max at 1m: >/= 115 dB
  • Crossover frequencies: 50 – 150 Hz
  • Input impedance: 10 kOhm
  • Weight: 57.3 lb (26 kg)
  • Dimensions (H x W x D): 23.5 x 14 x 17.5” (600 x 360 x 450 mm)
