Product Overview

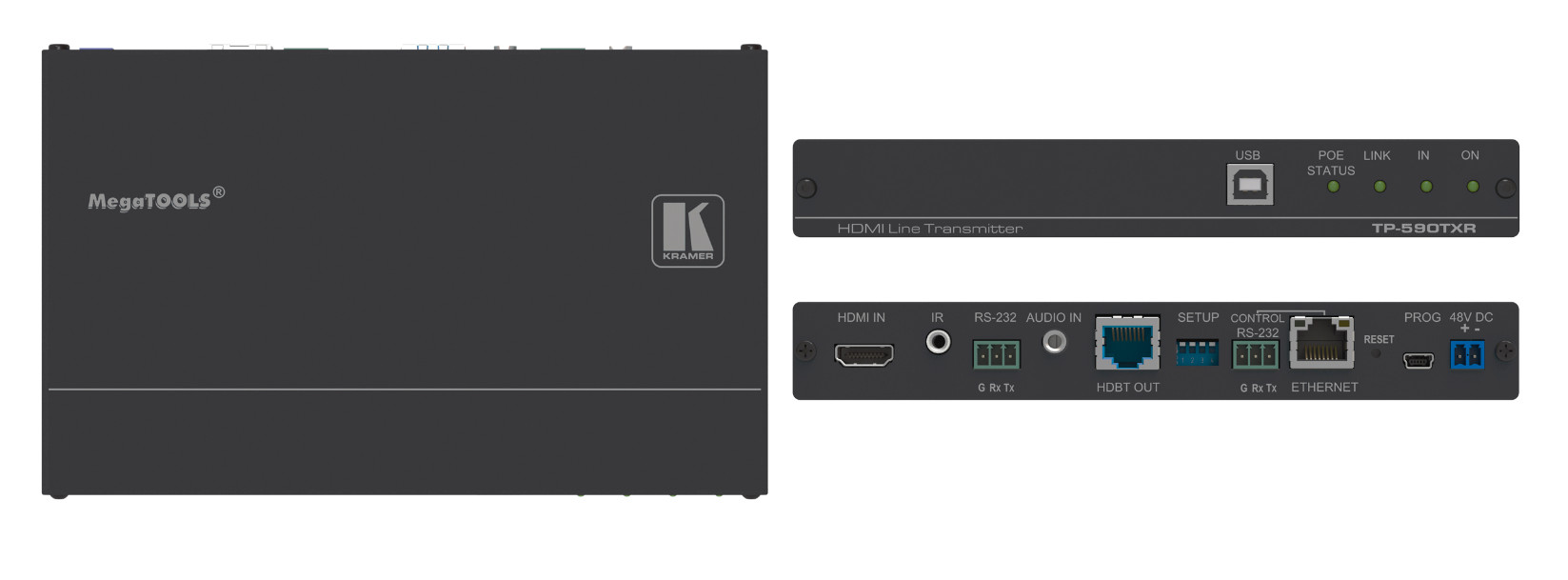

Kramer's TP-590TXR is a 4K UHD extended range, HDBaseT 2.0 transmitter for HDMI, USB 2.0, audio, bidirectional RS-232 and IR signals. It supports resolutions up to 4K@60 UHD (4:2:0). The TP-590TXR converts the HDMI, USB 2.0, audio, RS-232 and IR input signals into an HDBaseT twisted pair signal that it sends to the TP-590RXR for decoding.
Applications
- Conference rooms
- Boardrooms
- Auditoriums
- Hotels
- Churches
- Production studios
Features
- Resolution Support - Up to 4K@60 UHD (4:2:0)
- Maximum Data Rate - 10.2Gbps (3.4Gbps per graphic channel)
- HDTV Compatible
- HDCP Compliant
- HDBaseT V2 Support
- USB Support - USB 1.1 & USB 2.0 (up to 127Mbps)
- Supports Isochronous USB Cameras
- HDMI Support - Deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, CEC, 2K, 4K, 3D
- System Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-HDKat6a cables
- Cables - For optimum range and performance, use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges
- EDID Pass Through - Passes EDID signals from the source to the display
- USB Pass-Through - For connecting a peripheral device, such as, a mouse or a keyboard
- Bidirectional RS-232 Interface - Data flows in both directions via the RS-232 interface, allowing status requests and device control
- Bidirectional Infrared Interface - For remote control of peripheral devices
- USB Pass-Through - For connecting a peripheral device, such as, a mouse or a keyboard
- Power over Ethernet (PoE) - The transmitter can provide power over the TP cable to a PoE-compatible receiver
- Audio Support - Embedded and unbalanced stereo audio transmission
- Indicators - LED status indicators for input, output, HDBT link and power
- Size - Compact MegaTOOLS® - Two units can be rack mounted side-by-side in a1U rack space with the optional RK-T2B rack adapter
Specifications
- Inputs: HDMI connector, stereo analog audio on a 3.5mm mini jack
- Outputs: HDBT on a RJ-45 connector
- Ports: IR on a 3.5mm mini jack, 1 USB 2.0 on a USB connector, 1 RS-232 on a 3-pin terminal block for the serial link, 1 RS-232 on a 3-pin terminal block for transmitter control, 1 Ethernet on an RJ-45 connector for transmitter control
- Max. Data Rate: Supports up to 10.2Gbps (3.4Gbps bandwidth per graphic channel)
- RS-232 Baud Rate: 115200
- Compliance with HDMI Standard: Supports HDMI and HDCP
- USB Standard: USB 1.1 and 2.0
- Supported Web Browsers:
- Windows 7 and higher: Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35
- MAC: Chrome version 35, Firefox version 27, Safari version 7
- Android OS: Chrome version 35; iOS:Chrome version 35, Safari version 7
- Enclosuer Type: Aluminium
- Cooling: Convection, vents
- Operating Temperature: 32° to 104°F (0° to +40°C)
- Storage Temperature: -40° to 158°F (-40° to +70°C)
- Humidity: 10% to 90%, RHL non-condensing
- Power Consumption: 48V DC, 800mA
- Product Dimensions (WxDxH): 7.38" x 4.53" x 1.00" (18.75cm x 11.50cm x 2.54cm)
- Product Weight: 0.0kg (0.0lbs) approx.
- Shipping Dimensions (WxDxH): 13.82" x 8.35" x 2.83" (35.10cm x 21.20cm x 7.20cm)
- Shipping Weight: 0.0kg (0.0lbs) approx.
- Vibration: ISTA 1A in carton (International Safe Transit Association)
- Safety Regulatory Compliance: CE
- Environmental Regualtory Compliance: RoHs and WEEE
