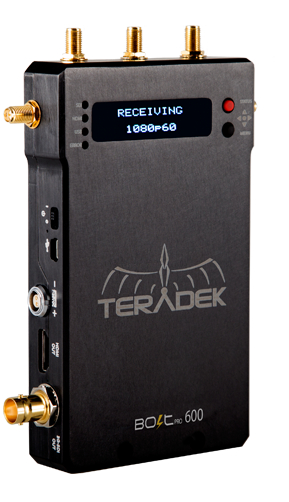

Teradek Bolt Pro 600
Wireless HD-SDI/HDMI Dual Format Receiver

OUR PART #  TER-BOLT-600

Our Price: $2,368.28
List Price: $2,390.00
In Stock

Recommended Accessories

The Teradek Bolt 600 Dual Format Reciever is part of Teradek's Bolt series, a zero delay (< 1ms) wireless video system that transmits uncompressed 1080p60, 4:2:2 video up to 2,000ft over the unlicensed 5GHz band. This particular Bolt model is the 600 receiver unit, providing a range of 600ft, and featuring external antenna, plus an OLED screen for settings selection. Just like all Bolt systems, it can be part of a multicast system able to work with up to 3 additional receivers (sold separately), supports timecode and metadata pass through, as well as the USB 3.0 GRAB Engine.

3D LUT Integration
Bolt receivers feature integrated 3D LUTs that output custom graded video—ideal for directors and producers who want to monitor footage using a color palette that's closer to final grade rather than a flat RAW image. Custom LUTs can be loaded by using the Bolt Manager, then selected on individual Bolt Receiver OLED screens.

Long-Range Panel Antenna
The Panel Antenna is a go-to accessory for challenging environments that require robust reliability in high RF interference areas, letting you can get the most out of your Bolt system. This high gain antenna is compatible with the Bolt 600, and comes complete with mounting hardware as well as a convenient bracket for positioning the Bolt's signal exactly where you need it.

Real-Time Cross Conversion & Extras
For your added convenience, all Bolt models provide real-time cross conversion from TX to RX, so you can automatically cross convert from HDMI to 3G-SDI, or vice versa, without any additional hardware. All Bolt units include real-time resolution standards conversion, and/or frame rate control directly on-board the receiver OLED.

USB 3.0 GRAB Engine
Capture cards are now a relic of the past with the Teradek GRAB Engine. Every Bolt RX has a USB 3.0 output that lets you to ingest Bolt's uncompressed video feed directly into a computer or DIT cart with no added delay.

Teradek Bolt 600 Receiver Includes:

  • Bolt 600 Receiver
  • 5x Wireless Antennas
  • 1/4-20" Thumb Screw
  • 1/2-20" Lightstand Adapter
  • PSU 2-Pin Lemo 18W
  • SDI Cable
  • HDMI Cable
  • 1-Year Warranty

Teradek Bolt 600 Receiver Specifications:

Video:

  • Video resolution:
    • 1080p60/59.94/50/30/29.97/25/24/23.98
    • 1080psf30/29.97/25/24/23.98
    • 1080i60/59.94/50
    • 720p60/59.94/50
    • 480p59.94/576p50 (via HDMI ports only)
    •  480i (NTSC)/576i (PAL)
  • Color sampling: Depends on the input/output types and RX settings; SDI 10-bit with no format conversion and FPGA v.1.1.0 or later, 8-bit colors for the rest
  • Inputs: No
  • Outputs:
    • 1 x USB 3.0 micro B receptacle
    • 1 x 75 Ohm BNC
    • 1 x Type A receptacle HDMI< /LI> < /UL><LI>Delay (TXto RX):0.001sec

    Audio:

    • Format support: 48kHz 24-bit PCM

    Wireless:

    • Frequency:
      • Non-DFS Frequencies:
        • US : 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
        • EU & JP : 5.19 ~ 5.23 GHz
      • DFS Frequencies:
        • US : 5.27 ~ 5.55 GHz and 5.67 GHz
        • EU & JP : 5.27 ~ 5.67 GHz
    • RF power: 17dbm EIRP(with one 2dbi TX antenna)
    • Range: Up to 600ft line of sight
    • Unicast / Multicast: Unicast/Multicast
    • Noise rejection: Can coexist with WiFi and 5GHz cordless phones

    Power:

    • Input: 2-Pin Lemo 7-28 VDC
    • Internal battery: No
    • Consumption(1080p60): 8.5 Watts

    General:

    • LCD screen: Yes
    • Size: 5.8" x 3.5" x 1.0" (147.3 x 88.5 x 25 mm)
    • Weight: 13.3oz (376g)
    • Firmware: Upgrade via Mini-USB
    • Operating temperature: 0° ~ 50° C
