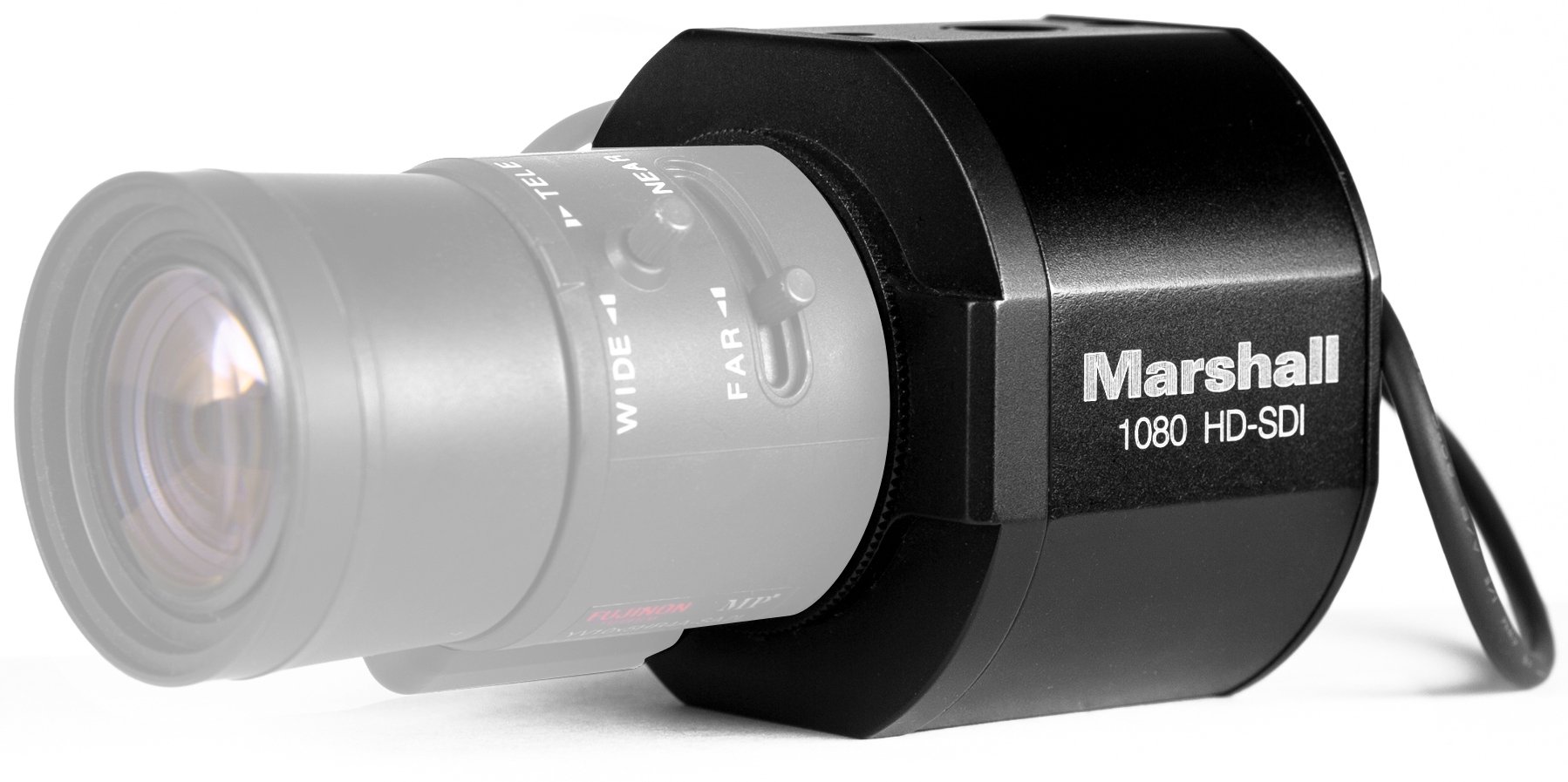

Marshall Electronics CV345-CSB
Compact 2Mp Full HD (3G/HD-SDI) Video Camera with HDMI Out

OUR PART #:  CV345-CSB

Our Price: $599.00
List Price: $699.00
You save 14%!
Write the first review.
Marshall Electronics CV345-CSB
Qty:
In Stock

Related Products

The next-generation Compact CV345 HD Pro-Series Camera from Marshall Electronics adds the convenience of a 3.5mm TRS input (audio embedding) with 2.5V power to microphone and broadcast convenient HDSDI/3GSDI (BNC), and HDMI (v1.3) simultaneous outputs. Newer pixel technology captures sharp, vivid color images in very low light conditions, and industry-leading low power consumption draws very low power in full-HD resolutions.

Applications:

  • Broadcast Television
  • Professional Sports
  • College Sports
  • OB Vans/Trucks
  • Concert & Studio Music Video
  • Reality TV
  • Performing Arts
  • Culinary Shows
  • Car TV Shows
  • Hidden Camera Shows
  • International Racing Circuits
  • Off-road Racing
  • Horse Racing
  • House of Worship
  • POV Video Shots

Marshall Electronics CV345-CSB Features:

  • 2.5 Megapixel 1/3" CMOS sensor
  • CS/C-Mount with DC-Auto Iris (lenses sold separately)
  • Resolutions/Frame Rates: 1920x1080p59.94/29.97, 1920x1080i59.94, 1280x720p59.94/29.97fps
  • Lemo-style (I/O) connector contains: RS-485(+/-), 12V power connector & TRS microphone input with 2.5V power supplied
  • 3G/HDSDI (BNC) & HDMI (full size-v1.3) built into rear panel
  • Captures sharp, vivid color images at 0.2 lux (low light sensitive)
  • WDR function supports high speed and high sensitivity to various light sources
  • Audio Mic 3.5mm TRS input embedding with 2.5V power (embeds on 3G/HDSDI & HDMI)
  • OSD Menu Joystick, RS-485 (Pelco/Visca)
  • Free Downloadable Software Control
  • Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust
  • Power Supply Included

Marshall Electronics CV345-CSB Specifications:

  • Image Sensor: 1/3" Progressive CMOS (Approx. 2.1 mega)
  • Scannning System: 16:9 Progressive
  • Sync. System: Internal
  • Effective Pixel: 1920(H) x 1080(V)
  • Min. Illumination: 0.2Lux (Day), 0.1Lux (Night), 0.005Lux(DSS on)
  • Horizontal Resolution: 1000TVL
  • Lens: CV345 (CS/C mount w/ DC-Auto Iris) - variable lens options
  • Functions:
    • Back Light Compensation: WDR (Wide Dynamic Range) / BLC (Back Light Compensation), HLC (High Light Compensation)
    • Exposure: Auto/Maunal
    • White Balance: Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / Manual
    • Day & Night System: AGC (Auto Gain Control) / TDN (ICR)
    • Electronic Shutter:
      • NTSC: 1/30~1/30000,
      • PAL: 1/25~1/30000, DSS ( ~X64)
    • Functions: Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W
  • Video Outputs:
    • 3G-SDI (+optional Audio), HD-SDI (+optional Audio):
      • SMPTE 424M (2.97Gbps): 1920x1080p @ 59.94fps
      • SMPTE 292M (1.485Gbps):
        • 1920x1080p @ 29.97
        • 1920x1080i @ 59.94
        • 1280x720p @ 59.94/29.97fps
      • 800mVp-p, 75O unbalanced generator (single-ended)
    • HDMI(+Audio) Output (HDMI type A female):
      •  HDMI 1.3 compliant
      • 1920x1080p @ 59.94fps >1920x1080p @ 29.97 >1920x1080i @ 59.94 >1280x720p @ 59.94/29.97
  • MIC Input:
    • Microphone Level (1Vrms): 2.5V Mic bias
    • 16-, 20-, 24-, 32-bits audio format. 48KHz sample rates
    • Gain: -12dB ~ 59.5dB
  • Operation Temperature: -10°C ~ 50°C
  • Power Input: 12VDC, includes power supply
  • Power Consumption: Max 6W
  • Dimensions (WxHxD): 60 x 57 X 45mm
  • Weight (Net): Approx. 160 g
  • Control Interface: RS-485
  • Camera Control Software Interface Screen Capture:
  • Free POV Camera Control Application
