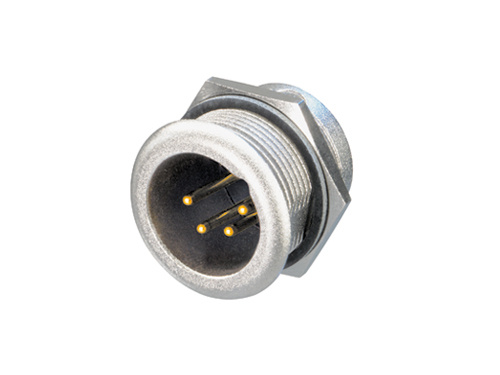

Neutrik NC4MPR-HD
4 Pin XLR-M Chassis Mount Connector

OUR PART #:  NC4MPR-HD

Neutrik's NC4MPR-HD is a heavy-duty sealed male 4-pole XLR chassis connector designed for outdoor use.
Learn More
Our Price: $9.34
List Price: $13.23
You save 29%!
Write the first review.
Neutrik NC4MPR-HD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Neutrik's NC4MPR-HD is a heavy-duty sealed male 4-pole XLR chassis connector designed for outdoor use. This chassis connector is well suited for outdoor and weatherproof applications as well as a wide range of industrial applications.

Neutrik NC4MPR-HD XLR Chassis Connector Features:

  • IP 65 - in combination with NC4FX-HD cable connector (sold separately )
  • Well suited for outdoor applications
  • Sealing gasket for water tight panel mount
  • Gold plated contacts
  • Fastening nut included

Neutrik NC4MPR-HD XLR Chassis Connector Specifications:

  • Electrical:
    • Capacitance between contacts: = 7 pF
    • Contact resistance: = 5 mO
    • Dielectric strength: 1.5 kVdc
    • Insulation resistance: > 10 GOhms (initial)
    • Rated current per contact: 10 A
    • Rated voltage: < 50 V
  • Mechanical:
    • Insertion force: = 20 N
    • Withdrawal force: = 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: max. 1.5 mm²
    • Wiresize: max. 16 AWG
    • Wiring: Solder contacts
    • Locking device: Latch lock
    • Mounting direction: Front mounting
    • Chassis shape: P
  • Material:
    • Contact plating: 0.2 µm Au over 2 µm Ni
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking element: Steel Ck67
    • Gasket: Tesnit®
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
  • Environmental:
    • Flammability: UL 94 HB
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 65
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
