OUR PART # CN-MX15F

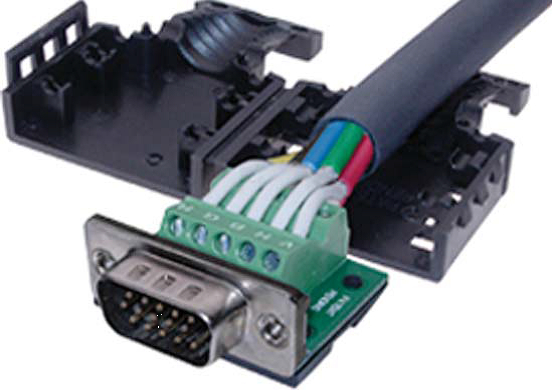

West Penn's MaxBloxâ„˘ CN-MX15F is a high-density 15-pin (HD15) female VGA connector designed for professional cables and panel mounts. Along with genuine Phoenix Contact terminal blocks that dramatically reduce installation time and cost by eliminating the need for soldering or crimping, the unique sled-type bottom allows these connectors to slide, snap and lock into the West Penn MaxBlox CN-MX915H hood (sold separately) for a secure, rugged and solderless cable mount connection.
The CN-MX15F's terminal block contains ten clearly labeled screw terminals for R, G, B, H, & V and their respective grounds. Each terminal accommodates cable sizes ranging from 16 AWG to 30 AWG. A high resolution five-conductor coax cable should be used when wiring these connectors.
