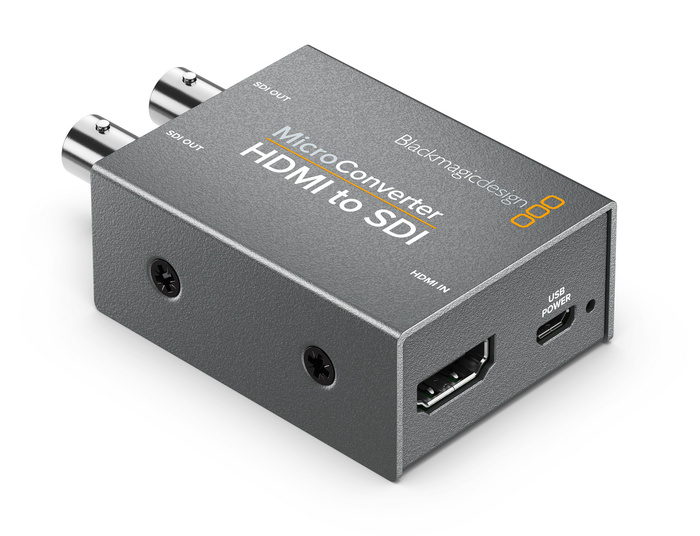

Blackmagic Design CONVCMIC/HS
Micro Converter HDMI to SDI

OUR PART #:  CONVCMIC/HS

Our Price: $85.00
Write the first review.
Blackmagic Design CONVCMIC/HS
Qty:
In Stock
Similar Products

The Micro Converter HDMI to SDI from Blackmagic Design (also known as CONVCMIC/HS)  allows you to take the HDMI output from laptop computers or consumer cameras and convert it to SDI for use with broadcast switchers, routers, monitors and more. The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You get 2 SDI outputs, support for Level A and Level B equipment, and power over USB.

Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into a proper metal enclosure so you get a professional design you can trust. You get full size professional 3G-SDI connections, HDMI and more. The converters include two LED status indicators to confirm power and video signal. Blackmagic Micro Converters include a power supply that has a USB connection. That means you can power it from the wall or you can use the USB power connection to power it from any USB socket on a television or a laptop computer.

Even though they’re incredibly small, Blackmagic Micro Converters feature full size 3G-SDI and HDMI connections. The SDI connections are multi-rate, making them compatible with SD and HD-SDI equipment. For maximum compatibility, micro converters support both level A and level B 3G-SDI devices. Micro Converter SDI to HDMI also includes an SDI input loop through connection. Micro Converter HDMI to SDI features two 3G-SDI outputs, so you can connect it to multiple devices such as switchers, routers, monitors and more.

Blackmagic Design CONVCMIC/HS Includes:

  • Micro Converter HDMI to SDI
  • +5V universal power supply with international socket adapters

Blackmagic Design CONVCMIC/HS Specifications:

  • Product ID: CONVCMIC/HS
  • Connections:
    • SDI Video Output: Automatically matches the SD, HD or 3G-SDI HDMI video input
    • HDMI: HDMI Type A in
    • Multi Rate Support: Auto detection of SD or HD
    • Updates, Configurations and Power: Micro USB
    • Reclocking: Yes
  • Standards:
    • SDI Format Support: 525i29.97 NTSC, 625i25 PAL
    • HD Format Support:
      • 720p50, 59.94, 60
      • 1080p24, 25, 29.97, 30, 50, 59.94,
      • 1080i50, 59.94, 60
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
    • SDI Video Rates: SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility.
    • SDI Color Precision: 4:2:2
    • SDI Color Space: YUV and RGB
    • SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
    • HDMI Format Support:
      • 525i29.97 NTSC, 625i25 PAL
      • 720p50, 59.94, 60
      • 1080p24, 25, 29.97, 30, 50, 59.94, 60
      • 1080i50, 59.94, 60
    • HDMI Color Precision: 4:2:2
    • HDMI Color Space: YUV and RGB
  • Software:
    • Software Control: Mac OS X™ and Windows™ software upgrade via micro USB
    • Internal Software Upgrade: Via micro USB
  • Operating Systems:
    • Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later.
    • Windows 8.1 or Windows 10.
  • Settings Control: Via software utility
  • Power Requirements:
    • Power Supply: +5V universal power supply included with international socket adapters for all countries.
    • Power Consumption: 2.0 Watts
    • Operational Voltage Range: 4.4 to 5.25V DC
  • Physical Specifications:
    • Dimensions (HxWxD): 0.98" x 1.80" x 3.01"
    • Weight: 5.29 oz.
  • Environmental Specifications:
    • Operating temperature: 32° to 104° F (0° to 40° C)
    • Storage temperature: -4° to 140° F (-20° to 60° C)
    • Relative Humidity: 0% to 90% non-condensing
