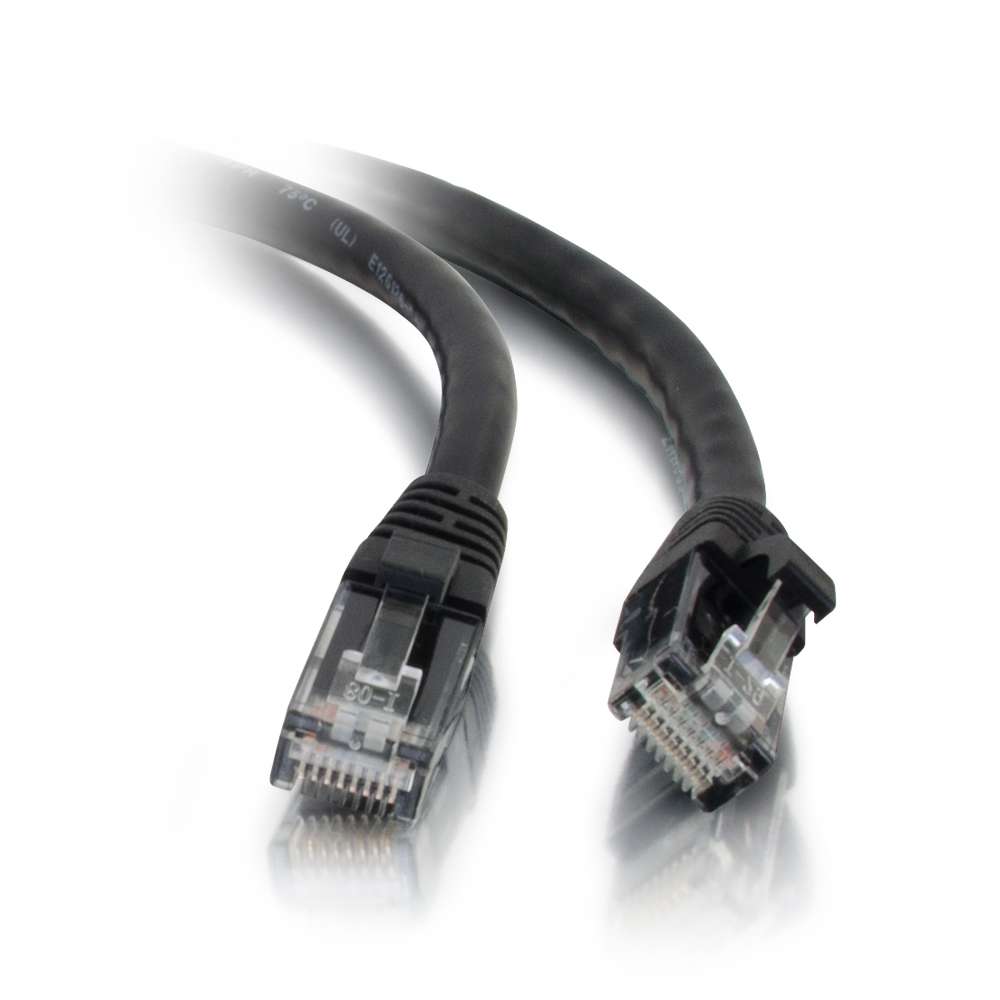

Cables To Go 20038 Cat5e Snagless Unshielded (UTP) Patch Cable Black Ethernet Network Patch Cable, 50 ft

OUR PART #: 20038 MFR #: 20038

Copied to clipboard

The Snagless Unshielded Cat5e patch cable (model no. ...Read more

Cables To Go 20038 Cat5e Snagless Unshielded (UTP) Patch Cable Black Ethernet Network Patch Cable, 50 Ft Image 1
Cables To Go 20038 Cat5e Snagless Unshielded (UTP) Patch Cable Black Ethernet Network Patch Cable, 50 Ft Image 2
Cables To Go 20038 Cat5e Snagless Unshielded (UTP) Patch Cable Black Ethernet Network Patch Cable, 50 Ft Image 3
Cables To Go 20038 Cat5e Snagless Unshielded (UTP) Patch Cable Black Ethernet Network Patch Cable, 50 Ft
Our Price: $24.99
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Snagless Unshielded Cat5e patch cable (model no. 20038) from Cables To Go is well suited for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. This Ethernet network cable meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.

C2G Cat5e Snagless Unshielded Network Patch Cable Features:

  • Snagless design protects clips when plugging and unplugging
  • Standard RJ45 connectors and unshielded twisted pair wires
  • Suitable for network adapters, hubs, switches, routers, DSL/cable modems,patch panels, and other high performance networking applications

C2G Cat5e Snagless Unshielded Network Patch Cable Specifications:

  • Model Number: 20038
  • Color: Black
  • Connector 1: (1) RJ-45 Male
  • Connector 2: (1) RJ-45 Male
  • Warranty: Lifetime
  • Weight: 1.030 lbs
  • Length: 50 ft
  • Electrical Characteristics:
    • Conductor DC Resistance - 89 Ohm/km (maximum)
    • Insulation Resistance - 100 Ohm/km (maximum)
    • Dielectric Strength: 500 MV/m
  • Conductor:
    • Conductor Type - 24AWG (7/0/2.0), Stranded Bare Copper
    • Insulation Material - H-D PE
    • Diameter - 0.95 ± 0.05mm
    • Colors - Blue/Blue-White, Orange/Orange-White, Green/Green-White, Brown/Brown-White
  • Connector:
    • Number of contacts - Eight
    • Gender - Male
    • Connector Material - Polycarbonate
    • Contact Material - Copper Alloy, Gold Plating - 50µm
    • Hood Material - Molded PVC
  • Overall Cable:
    • Jacket - FR-PVC
    • Nominal Thickness - 0.55mm
    • Outer Diameter - 5.30mm
