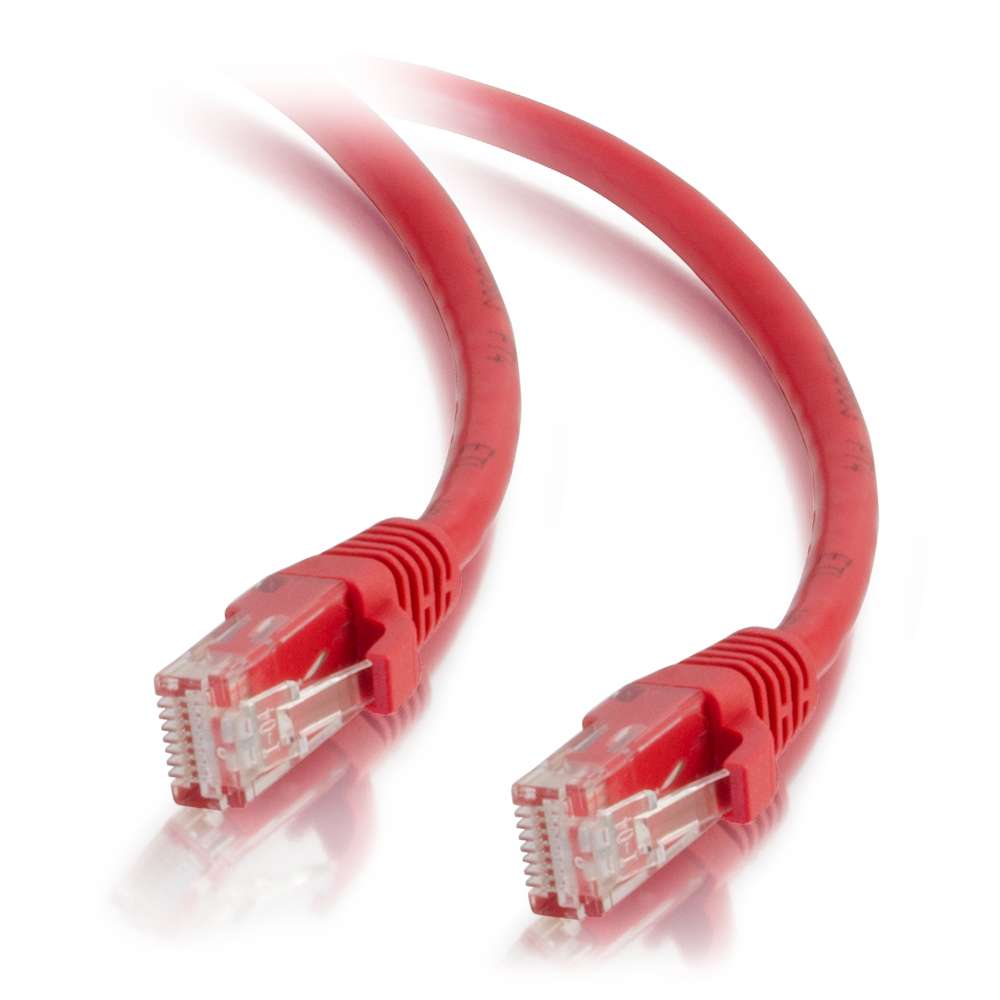

Cables To Go Cat5e Snagless Unshielded (UTP) Patch Cable
Red Ethernet Network Patch Cable, 5 ft

OUR PART #:  15190

The Snagless Unshielded Cat5e patch cable (model no.
Learn More
Our Price: $2.60
List Price: $6.99
You save 63%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Cables To Go Cat5e Snagless Unshielded (UTP) Patch Cable
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Snagless Unshielded Cat5e patch cable (model no. 15190) from Cables To Go is well suited for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. This Ethernet network cable meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.

C2G Cat5e Snagless Unshielded Network Patch Cable Features:

  • Snagless design protects clips when plugging and unplugging
  • Standard RJ45 connectors and unshielded twisted pair wires
  • Suitable for network adapters, hubs, switches, routers, DSL/cable modems, patch panels, and other high performance networking applications

C2G Cat5e Snagless Unshielded Network Patch Cable Specifications:

  • Model Number: 15190
  • Color: Red
  • Connector 1: (1) RJ-45 Male
  • Connector 2: (1) RJ-45 Male
  • Warranty: Lifetime
  • Weight: 0.130 lb
  • Length: 5 ft
  • Electrical Characteristics:
    • Conductor DC Resistance - 89 Ohm/km (maximum)
    • Insulation Resistance - 100 Ohm/km (maximum)
    • Dielectric Strength: 500 MV/m
  • Conductor:
    • Conductor Type - 24AWG (7/0/2.0), Stranded Bare Copper
    • Insulation Material - H-D PE
    • Diameter - 0.95 ± 0.05mm
    • Colors - Blue/Blue-White, Orange/Orange-White, Green/Green-White, Brown/Brown-White
  • Connector:
    • Number of contacts - Eight
    • Gender - Male
    • Connector Material - Polycarbonate
    • Contact Material - Copper Alloy, Gold Plating - 50µm
    • Hood Material - Molded PVC
  • Overall Cable:
    • Jacket - FR-PVC
    • Nominal Thickness - 0.55mm
    • Outer Diameter - 5.30mm
