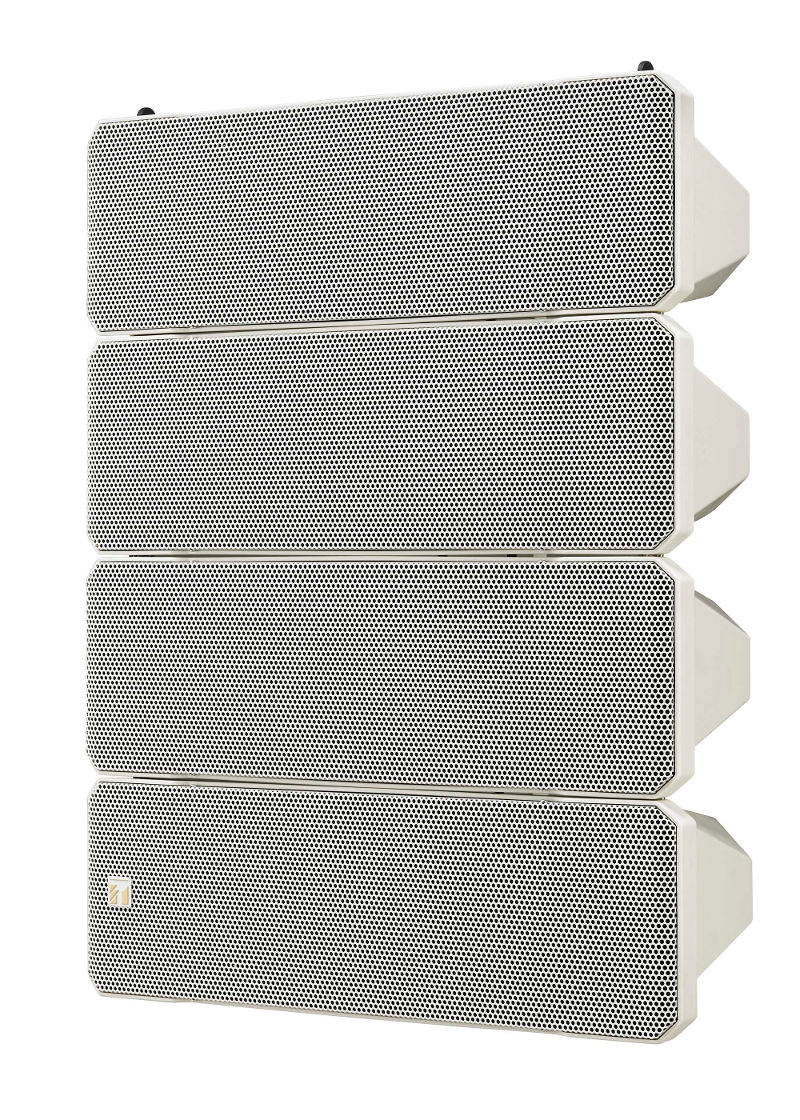

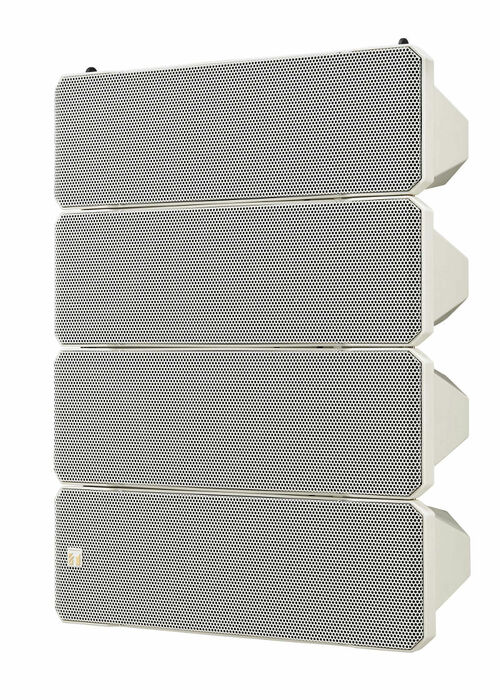

Variable Dispersion Speaker, 750 W, 8 Ohms, White


The TOA HX-7 is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in a vertical directivity.
Learn More
Our Price: $1,436.91
List Price: $1,778.17
You save 19%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The TOA HX-7 is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in a vertical directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise. The HX-7 is designed for indoor use.

TOA HX-7W Features:

  • 4 cell configuration each incorporating:
    • (2) 5" Low-frequency drivers
    • (1) Center-mounted, wave guide-loaded, 1"-exit compression driver
  • Flexible vertical angle adjustment between 0° and 45° (60°with second HX-7 and optional adapter).
  • Power handling: 750W Continuous Program @ 8 Ohms.
  • 100 dB sensitivity (1W @ 1m).
  • Optional hardware for stand, wall, ceiling and flown installations.
  • Black or White and weather-proof (WP) versions available.

TOA HX-7W Specifications:

  • Enclosure: Bass-reflex type
  • Power Handling Capacity:
    • Continuous pink noise: 250 W
    • Continuous program: 750 W
  • Rated Impedance: 8 Ohms
  • Sensitivity: 100 dB (1 W, 1 m)
  • Frequency Response: 75 Hz - 20 kHz
  • Crossover Frequency: 1.7 kHz
  • Directivity Angle:
    • Horizontal: 100 degrees
    • Vertical: Depending on directivity angle mode
  • Speaker Component:
    • Low Frequency: 13 cm cone - type X 8
    • High Frequency: Wave front control horn with compression driverX4
  • Input Terminal: Speakon NL4MP X 2 and M4 screwterminal, distance between barriers: 9 mm
  • Finish:
    • Enclosure: polypropylene, black
    • Punch net: surface - treated steel plate, black, paint
    • Hanging bracket: steel plate, t3.0, black, paint
  • Dimensions: 497 (W) X 664 (H) X 274 (D) mm
  • Weight: 30 kg (66.14 lbs)
Hanging Bracket Used To Suspend HX-7, Black
TOA HY-PF7B Hanging Bracket Used To Suspend HX-7, Black
The TOA HY-PF7B Speaker rigging frames is used exclusively to suspend the HX-7B or HX-7W Speaker system from the high ceiling indoors. The FB-150B Subwoofer system can also be suspended using the HY-PF7B or HY-PF7W and the Speaker rigging ...
