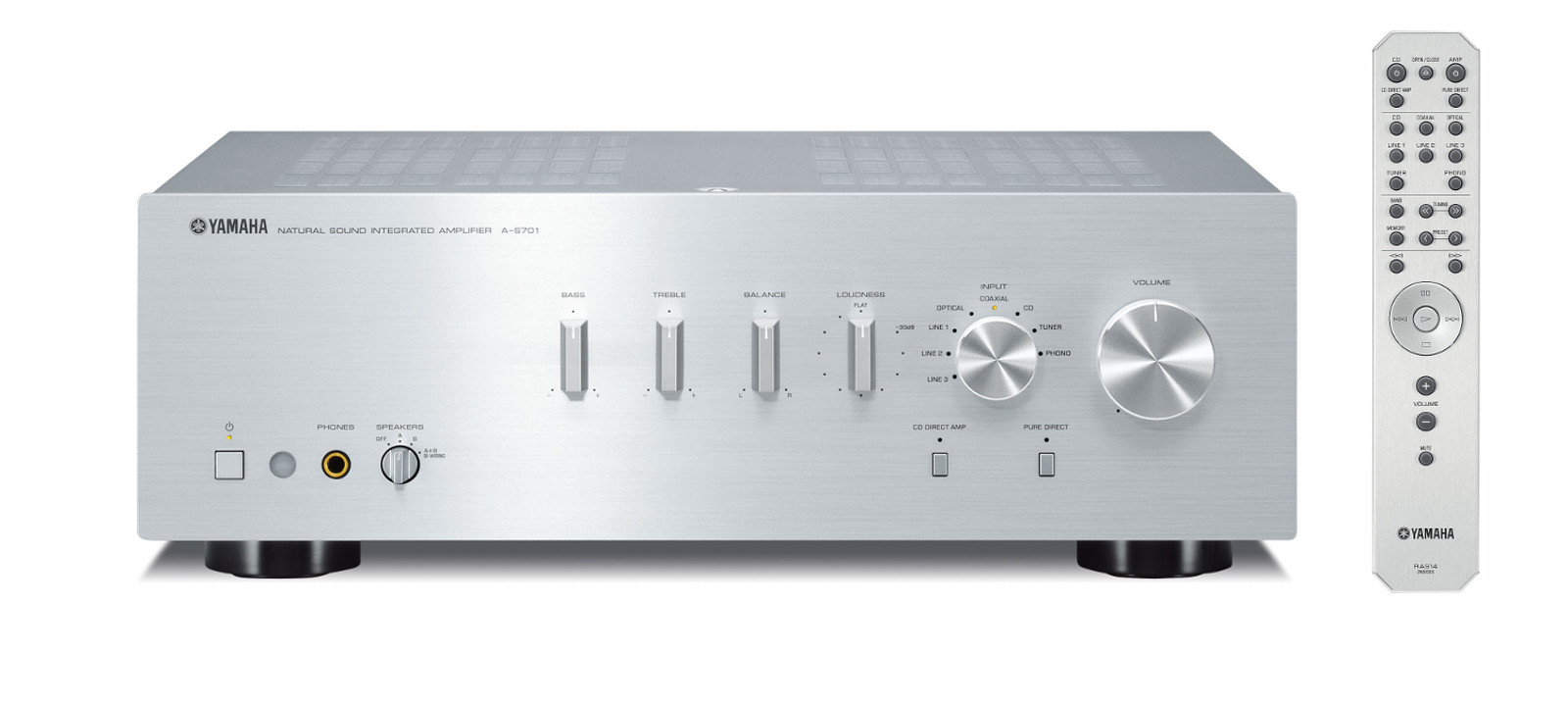

Yamaha A-S701
Integrated HI-FI Amplifier

OUR PART #  A-S701

Our Price: $799.95
List Price: $899.95
You save 11%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Yamaha A-S701 is an integrated HI-FI amplifier that provides pure sound quality and outstanding drive power. This amplifier features digital audio inputs for TV and Blu-ray Discâ„¢ player, CD direct amplification and pure direct.

Yamaha A-S701 Features:

  • 100 W x 2-ch (20 Hz - 20 kHz)
  • ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
  • I/O (input to output) direct symmetrical design
  • ART (Anti-Resonance and Tough) Base
  • Custom-made power transformer / 12,000 uF block capacitors / extruded aluminum heat sinks
  • Gold-plated speaker terminals and RCA terminals
  • Simple yet sophisticated design (aluminum front panel and knobs)
  • Continuously variable loudness control

Yamaha A-S701 Specifications:

  • Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz): 100W + 100 W (0.019% THD)
  • High Dynamic Power/Channel (8/6/4/2 ohms): 140 / 170/ 220 / 290 W
  • Frequency Response: 10 Hz - 100 kHz +/- 1.0 dB
  • Total Harmonic Distortion (CD to Sp Out, 20 Hz-20kHz): 0.019% (50 W / 8 ohms)
  • Signal-to-Noise Ratio (CD): 99 dB (input shorted, 200mV)
  • Damping Factor: 240
  • Digital Input: Yes (optical / coaxial)
  • Audio In / Out: 8 / 2
  • Subwoofer Out: Yes
  • Pure Direct: Yes
  • ToP-ART: Yes
  • Switchable CD Direct Amplification: Yes
  • DC out: Yes
  • Standby Power Consumption: 0.5 W
  • Power Management (Auto Power Standby): Yes
  • Dimensions (WxHxD): 17-1/8" x 6" x 15-1/4"
  • Weight: 24.7 lbs

Yamaha A-S701
Integrated HI-FI Amplifier

OUR PART #  A-S701

Product Information:

The Yamaha A-S701 is an integrated HI-FI amplifier that provides pure sound quality and outstanding drive power. This amplifier features digital audio inputs for TV and Blu-ray Discâ„¢ player, CD direct amplification and pure direct.

Yamaha A-S701 Features:

  • 100 W x 2-ch (20 Hz - 20 kHz)
  • ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
  • I/O (input to output) direct symmetrical design
  • ART (Anti-Resonance and Tough) Base
  • Custom-made power transformer / 12,000 uF block capacitors / extruded aluminum heat sinks
  • Gold-plated speaker terminals and RCA terminals
  • Simple yet sophisticated design (aluminum front panel and knobs)
  • Continuously variable loudness control

Yamaha A-S701 Specifications:

  • Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz): 100W + 100 W (0.019% THD)
  • High Dynamic Power/Channel (8/6/4/2 ohms): 140 / 170/ 220 / 290 W
  • Frequency Response: 10 Hz - 100 kHz +/- 1.0 dB
  • Total Harmonic Distortion (CD to Sp Out, 20 Hz-20kHz): 0.019% (50 W / 8 ohms)
  • Signal-to-Noise Ratio (CD): 99 dB (input shorted, 200mV)
  • Damping Factor: 240
  • Digital Input: Yes (optical / coaxial)
  • Audio In / Out: 8 / 2
  • Subwoofer Out: Yes
  • Pure Direct: Yes
  • ToP-ART: Yes
  • Switchable CD Direct Amplification: Yes
  • DC out: Yes
  • Standby Power Consumption: 0.5 W
  • Power Management (Auto Power Standby): Yes
  • Dimensions (WxHxD): 17-1/8" x 6" x 15-1/4"
  • Weight: 24.7 lbs
