Atlas Sound I8SCM+
8" In-Wall/In-Ceiling, PoE+ Indoor IP Loudspeaker System With LED Display And Microphone

OUR PART #:  I8SCM+

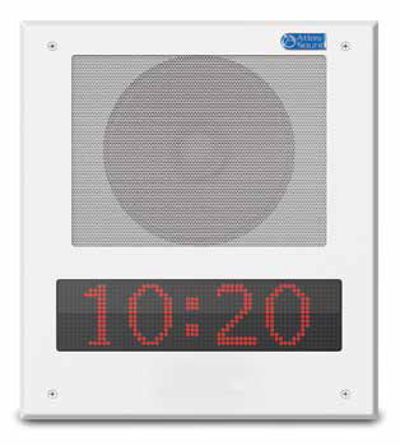

AtlasIED I8SCM+ is an indoor wall mount IP loudspeaker with integrated talkback microphone and LED display.
Learn More
Our Price: $876.99
List Price: $1,094.99
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound I8SCM+
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

AtlasIED I8SCM+ is an indoor wall mount IP loudspeaker with integrated talkback microphone and LED display. It leverages VoIP communication to extend tele-presence with enhanced audio for environments where network-wide communication is desired and high-output loudspeakers are required to overcome high ambient noise and/or large spaces.

AtlasIED I8SCM+ registers as a communication endpoint directly within InformaCast, GCK, and SA-Announce advanced notification
applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced
alerting, bell schedules, pre-recorded & scheduled announcements, while leveraging the WAN or LAN network architecture.

When used within a Cisco environment, the I8SCM+ loudspeakers can join Cisco’s Unified Survivable Remote Site Telephony (SRST)
as a supported device. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco
Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination
of phones and loudspeakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

Where 3rd party notification applications are not required, the I8SCM+ loudspeakers can register as SIP devices directly to a SIP
server or VoIP Communications Manager for critical alerts, intercom and public address applications.

Under Title II of the ADA, all state and local governments are required to take steps and ensure effective communication to people
with disabilities. The AtlasIED I8SCM+ IP loudspeakers with talkback microphone and LED display provide effective communication for all individuals.

AtlasIED I8SCM+ Features:

  • 2 General Purpose Inputs
  • 1 Relay Output (2A @ 30 VDC)
  • Phone/Night Loud Ringer
  • External Power Supply Option
  • (8) 64 LED Display for Clock or Scrolling Text
  • Integrated Microphone Allows for Half-Duplex or Full-Duplex Paging

AtlasIED I8SCM+ Specifications:

  • System:
    • Type: PoE+ Indoor IP Loudspeaker System with LED Display and Microphone
    • Operation Mode: Self Powered
    • Indicators: Network Status (On Back)
    • Operating Range (-10db): 70 Hz - 15.5 kHz
    • Frequency Response (+/- 5dB): 86 Hz - 15.5 kHz
    • Vertical Coverage: 105° 800 Hz - 4 kHz Horizontal Coverage: 105° 800 Hz - 4 kHz
    • Directivity Factor (Q): 4.7 @ 2 kHz
    • Max SPL at 1 m (passive): 106 dB SPL Continuous / 109 dB SPL Peak
    • Recommended Signal Processing: Built-In Processing
    • General Purpose Interface: Two Trigger Inputs / One Relay Output (2A @ 30 VDC)
  • Display:
    • Display Type: LED Display
    • Display Color Range: Red Only
    • Display Lumens: 162 lux
    • LED's Per Character: 16 X 64
    • Character Max Height: 2.125" (54mm)
    • Viewable Dimensions (H x W): 10.125 x 2.5625" (257 x 65 mm)
    • Control Time via NTP - Text Controlled via Software
  • Enclosure:
    • Color: White (RAL 9010)
    • Grille Material: Powder Coated Steel, White Finish, Paintable
    • Baffle Material: 18-gauge Corrosion-Resistant Zinc Plated Steel
    • Mounting/Rigging Provisions: Mounting Enclosure is Not Included (See Optional Enclosure)
    • Safety Agency Ratings: ETL Listed to Comply with UL-60950-1, and CAN/CSA-C22.2 No. 60950-1
    • Ingress Protection: IP-30
    • Logo: Blue and Removable
    • Product Dimensions (HxWxD) 14.38 x 12.88 x 2.77" (365 x 327 x 70.36 mm)
    • Shipping Dimensions (HxWxD) 14.56 x 13.19 x 4.5" (369 x 335 x 114 mm)
    • Net Weight: 4.82 lbs (2.2kg)
    • Shipping Weight: 6 lbs (2.7kg)
