Blackmagic Design MULVIEW4K
Blackmagic Multiview 4


The Blackmagic Design MultiView 4 has four completely independent 6G-SDI inputs that work with all SD, HD and Ultra HD formats up to 2160p30.
Learn More
Our Price: $495.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Blackmagic Design MULVIEW4K
In Stock

Similar Products

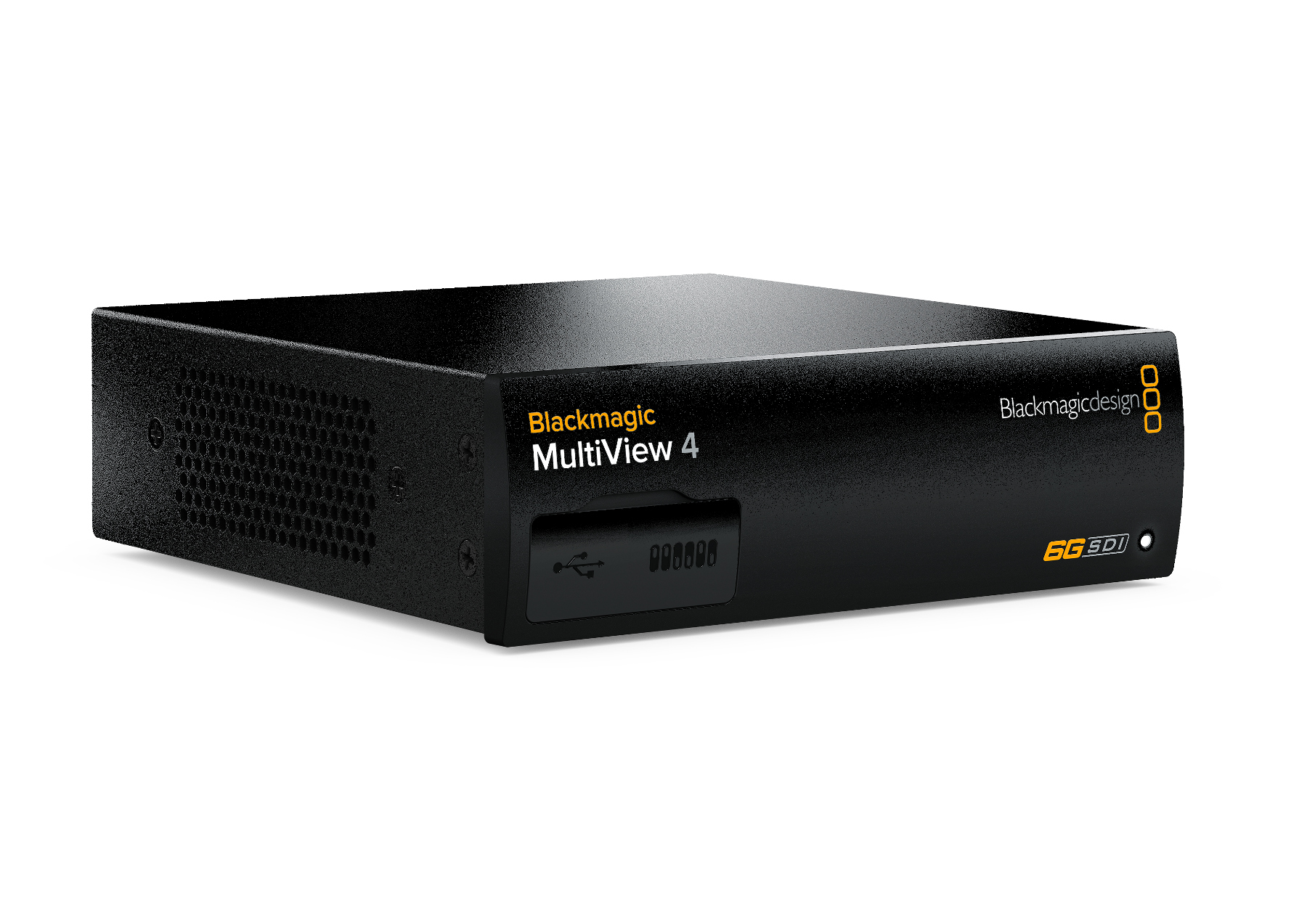

The Blackmagic Design MultiView 4 has four completely independent 6G-SDI inputs that work with all SD, HD and Ultra HD formats up to 2160p30. Simply connect your sources and you’ll get a standard 2x2 grid view on an HD or Ultra HD television. Using the included Ethernet remote control software, you can turn on audio meters, choose which audio to output, as well as create custom labels. MultiView 4 is compatible with the Teranex Mini Rack Shelf so you can use it on your desktop or rack mount it. You can also add an optional Teranex Mini Smart Panel for front panel control. For the ultimate in broadcast reliability and redundancy, you can power MultiView 4 via the AC connection as well as power over Ethernet.

Blackmagic MultiViews are the world’s first native Ultra HD multi viewers that let you monitor completely independent SDI video sources on a single HD or Ultra HD display. With full frame re-synchronization on every input, you can monitor any combination of SD, HD and Ultra HD formats and frame rates all at the same time, on the same display. When used with an Ultra HD television, the quad split view gives you four full resolution 1080 HD monitors on a single screen.

Blackmagic Design MultiView 4 Specifications:

  • SDI Video Input: 4 x 10-bit SD-SDI, HD-SDI and 6G-SDI
  • SDI Video Loop Output: 4 x 10-bit SD-SDI, HD-SDI and6G-SDI
  • SDI Video Multi View Outputs: 1 x 10-bit HD-SDI and10 bit 6G-SDI
  • HDMI Video Multi View Outputs: 1 x HDMI type Aconnector. Output supports EDID of the monitor
  • Control: Optional front mounted Teranex Mini SmartPanel with LCD, rotary knob and six settings buttons
  • Configuration: RJ45 Ethernet or USB 2.0 for firmwareupdates and IP address setting
  • Reclocking: On all SDI outputs, auto switchingbetween standard definition, high definition or 6G-SDI video
  • Operating temperature: 0° to 40° C (32° to 104° F)
  • Storage temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing
