Blackmagic Design ARDUINO-SDI

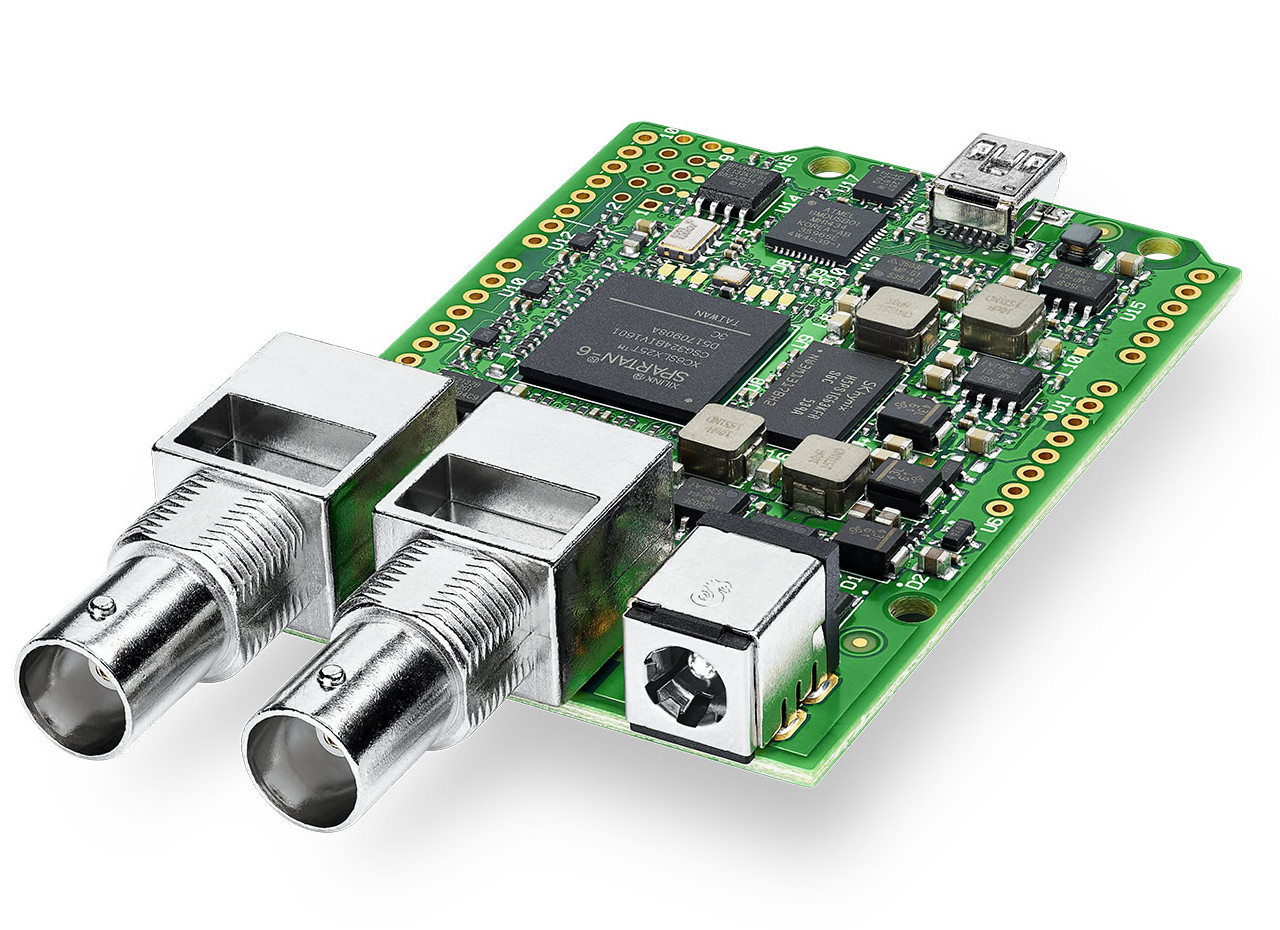

Blackmagic 3G-SDI Arduino Shield

OUR PART #:  ARDUINO-SDI

The Blackmagic Design 3G-SDI Ardunio Sheild allows users to build their own custom controllers for cameras and other SDI devices.
Learn More
Our Price: $95.00
Blackmagic Design ARDUINO-SDI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Blackmagic Design 3G-SDI Ardunio Sheild allows users to build their own custom controllers for cameras and other SDI devices. The 3G-SDI Ardunio Shieild makes it easier for technicians and broadcast engineers to create custom control solutions for Blackmagic Design cameras.

Expansion boards are called “shields” in the Arduino world and Blackmagic Design decided to take advantage of this standardized expansion capability to build its Blackmagic 3G-SDI Arduino Shield interface card. Blackmagic Design has also written some sample code that shows how the Arduino communicates with the Blackmagic 3G-SDI Arduino Shield, and how the shield will then send the camera control commands to the camera.

The Blackmagic 3G-SDI Arduino Shield is a simple expansion board or “shield” that includes 1 SDI input and 1 SDI output. The SDI input allows any video source to be connected, and the SDI output is connected to the camera and has camera control protocol commands embedded into it. The Blackmagic 3G-SDI Arduino Shield is very easy to use by a software developer, as they just look up the camera control commands they want to use in the instruction manual and then add them to Arduino software code that sends them to the Blackmagic 3G-SDI Arduino Shield to be inserted into the SDI link.
