Cables To Go 29303
DisplayPort HDBaseT Extender over Cat5

OUR PART #:  29303

Our Price: $618.03
List Price: $775.99
You save 20%!
Write the first review.
Cables To Go 29303
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

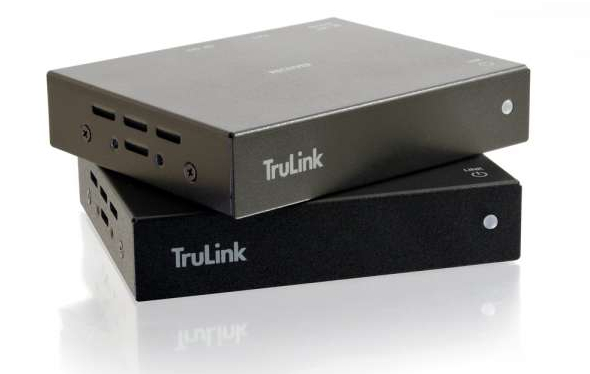

The Cables to Go 29303 DisplayPort™ HDBaseT™ Extender over CAT5 allows the user to connect a device with a DisplayPort input over a single Cat5 cable up to 300 ft at a 1080p resolution. The solution is compatible with any operating system and is truly plug and play with no drivers or software required.

Cables to Go 29303 DisplayPort™ Extender Includes:

  • DisplayPort HDBaseT transmitter
  • DisplayPort HDBaseT receiver
  • Power adapter
  • Two Mounting bracket pack with screws
  • Two Foot pad set
  • User manual

Cables to Go 29303 DisplayPort™ Extender Features:

  • Extend DisplayPort up to 300 feet at a 1080p resolution
  • Utilizes a single category cable for extension
  • HDBaseT technology supports HDCP and EDID pass through
  • Includes a DisplayPort transmitter and DisplayPort receiver

Cables to Go 29303 DisplayPort™ Extender Specifications:

  • Color: Black
  • UPC: 757120293033
  • Warranty: 3 Years
  • Vendor: C2G
  • Weight: 3.400 LB
  • Electrical Characteristics:
      • Maximum Resolution Supported: WQXGA (2560x1600 @ 60Hz), Full HD (1920x1080 @ 60Hz)
      • Features Supported: HDBaseT, 3D, HDCP, EDID
      • Distance Support: 230ft @ 2560x1600, 328ft @ 1920x1080
    • Power Adapter
      • Input Voltage: 100-240V @ 50-60Hz
      • Input Current: 0.6A
      • Output Voltage: 18V
      • Output Current: 1.0A
      • Pin Diameter: OD - 4.7mm, ID - 1.7mm
      • Center Pin Polarity: Positive
      • Cable Length: 5ft
  • Physical Characteristics:
    • Operating Temperature: 0°C - 50°C
    • Storage Temperature: -20°C - 70°C
    • Humidity: 0-80% Relative Humidity
    • Dimensions (HxWxD): 0.9" x 4.3" x 3.4"
    • Enclosure: Metal
    • Approvals: CE
