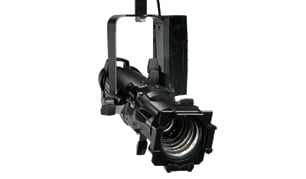

ETC/Elec Theatre Controls 4M26LG
19° Source Four Mini LED Gallery Fixture

OUR PART #:  4M26LG

ETC's Source Four Mini™ is everything you expect from the Source Four® brand but packaged in a tiny fixture that is just one-third the size of the Source Four.
Learn More
Our Price: $429.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls 4M26LG
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

ETC's Source Four Mini™ is everything you expect from the Source Four® brand but packaged in a tiny fixture that is just one-third the size of the Source Four. The Source Four Mini can go anywhere: museums, retail outlets, restaurants, light labs, children's theaters, and other small scale installations where size matters.

ETC 4M26LG Source Four Mini Features:

  • 19° field angle
  • 9" long, 2.5" diameter
  • 12W LED (35,000-hour life)
  • Portable, canopy-mount and track-mount versions
  • E-size pattern holder
  • Gel media frame
  • Rotating barrel ± 175°
  • Three-plane stainless-steel shutter blade assembly
  • Tool-free lamp replacement
  • Insulated rear handle
  • Rugged die-cast aluminum construction

ETC 4M26LG Source Four Mini Specifications:

  • Die-cast aluminum construction (A380 grade)
  • Fine-texture, high-temperature powder-coated paint
  • Steel yoke with 0.406” diameter mounting hole
  • Rotating shutter assembly ±175°
  • Electrical:
    • Power at full intensity: 12W typical, 14W max
    • 18 AWG input wire size
    • Input voltage options:
      • 90-135V, 50/60Hz
      • 190-250V, 50/60Hz
    • Dimmable (forward and reverse phase)
    • Inrush (first half-cycle)
      • 120V: <1A
      • 240V: <1A
  • Lamp:
    • Cree LED (Available in 80+ and 90+ CRI)
    • Long-life lamp: 35,000 hours L70 lumen maintenance
    • 3000K color temperature
  • Thermal: 0°C to +40°C
Source Four Mini Pattern Holder, E Size
ETC/Elec Theatre Controls 4MPH-E Source Four Mini Pattern Holder, E Size
ETC's 4MPH-E is a Size E Source Four Mini Pattern Holder.
10.00

In Stock
Source Four Mini Color Frame
ETC/Elec Theatre Controls 4MCF Source Four Mini Color Frame
This Source Four Mini accessory is a mini color frame. All accessories are standard in black, but white or silver options are available.Product shown in image is for illustrative purposes only. Actual product may vary in appearance.
5.00

In Stock
26° Source Four Mini Lens Tube in Black
ETC/Elec Theatre Controls 4M26LT 26° Source Four Mini Lens Tube in Black
This Source Four Mini accessory is a 26° lens tube that has a black finish. All accessories are standard in black, but white or silver finish options are available.NOTE: Product shown in image is for illustrative purposes only. Actual ...
65.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
Source Four Mini Top Hat
ETC/Elec Theatre Controls 4MTH Source Four Mini Top Hat
This accessory is a Source Four Mini Top Hat which controls light and reduces flare on your audience. All Source Four Mini accessories are standard in black, but white or silver finishes are additional color options.NOTE: Product shown in ...
20.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
Source Four Mini Donut in Black
ETC/Elec Theatre Controls 4MDN Source Four Mini Donut in Black
This Source Four Mini accessory is a mini donut. All accessories are standard in black, but white or silver options are available.NOTE: Product shown in image is for illustrative purposes only. Actual product may vary in appearance.
5.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
