The Light Source TC Clamp
Mounting Clamp with T-Handle in Black Anodized Finish

OUR PART #  TCB-LIGHTSOURCE

Our Price: $29.25
List Price: $40.00
You save 27%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

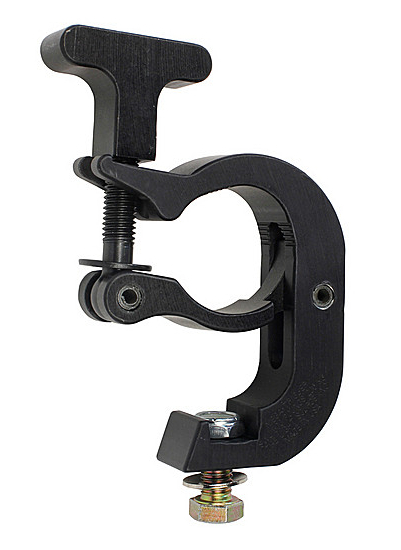

The Light Source TC Clamp is a mounting clamp that fastens on 2" OD to 1.5" OD tubes. This black anodized clamp has a 2.5" T-handle so no tools are required to fasten to the pipe. Includes a 1.25" x 0.5"-13 TPI Grade 8 fastener, Nylock Nut and 1" diameter Belleville Spring washer for connecting your load.

The Light Source TC Clamp Specifications:

  • Part Number: TCB
  • Minimum Size: 1.5" OD tube, 1.25" pipe, 1.66" OD pipe
  • Maximum Size: 2" OD truss tube, 1.5" pipe, 1.9" OD pipe
  • Safe Vertical Working Load: 450 lbs (200 kg)
  • Hardware:
    • 1.25" x 0.5"-13 TPI Grade 8 fastener with Nylock nut
    • 1" Belleville spring washer
  • Dimensions (HxWxD): 4.625" x 4" x 1.19" (11.7 x 10.16 x 3 cm)
  • Weight: 1.25 lbs (0.55 kg)

The Light Source TC Clamp
Mounting Clamp with T-Handle in Black Anodized Finish

OUR PART #  TCB-LIGHTSOURCE

Product Information:

The Light Source TC Clamp is a mounting clamp that fastens on 2" OD to 1.5" OD tubes. This black anodized clamp has a 2.5" T-handle so no tools are required to fasten to the pipe. Includes a 1.25" x 0.5"-13 TPI Grade 8 fastener, Nylock Nut and 1" diameter Belleville Spring washer for connecting your load.

The Light Source TC Clamp Specifications:

  • Part Number: TCB
  • Minimum Size: 1.5" OD tube, 1.25" pipe, 1.66" OD pipe
  • Maximum Size: 2" OD truss tube, 1.5" pipe, 1.9" OD pipe
  • Safe Vertical Working Load: 450 lbs (200 kg)
  • Hardware:
    • 1.25" x 0.5"-13 TPI Grade 8 fastener with Nylock nut
    • 1" Belleville spring washer
  • Dimensions (HxWxD): 4.625" x 4" x 1.19" (11.7 x 10.16 x 3 cm)
  • Weight: 1.25 lbs (0.55 kg)
