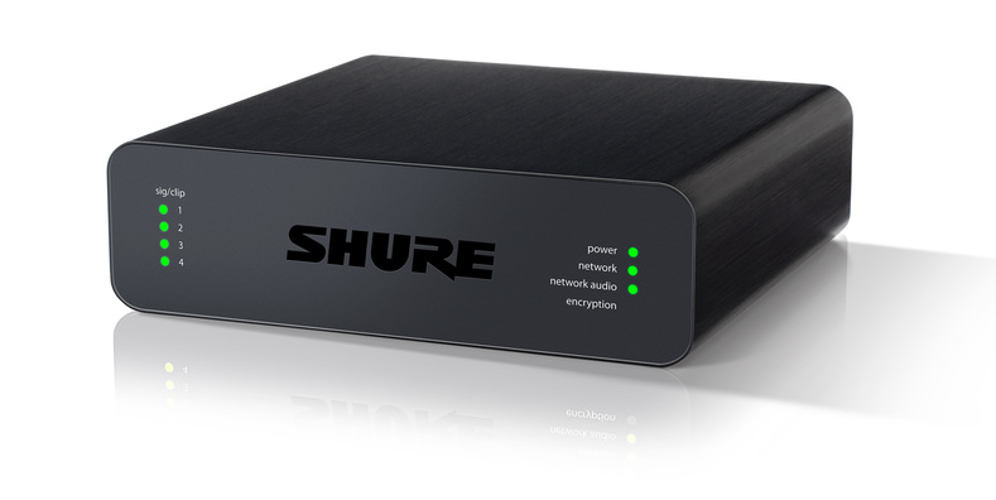

Shure ANI4IN-BLOCK
Audio Network Interface

OUR PART #:  ANI4IN-BLOCK

The Shure ANI4IN Audio Network Interface converts up to four line / mic analog signals onto a Dante network for easy audio routing and browser-based control.
Learn More
Our Price: $780.00
Write the first review.
Shure ANI4IN-BLOCK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The Shure ANI4IN Audio Network Interface converts up to four line / mic analog signals onto a Dante network for easy audio routing and browser-based control.

Shure ANI4IN Features:

  • Single Ethernet port carries Dante audio, power (PoE – class 0)
  • LEDs indicate device status and audio signal
  • Control strings for third-party preset controllers including Crestron® and AMX®
  • 4 Band C/S PEQ on every channel
  • Provides channel summing to combine input signals and send them over a single Dante™ channel
  • Browser-based software control for all device parameters, per input channel:
    • Preamp gain
    • Mute control
    • Digital gain
    • Polarity control
    • Phantom power
  • 1/3 Rack unit wide
  • Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
  • Block connector (audio + logic)

Shure ANI4IN Specifications:

  • Inputs: Four 6-pin block connector
  • Phantom Power: +48  V
  • Logic Connections (Block connectors only):
    • Sent as Ethernet command strings
    • LED, Switch
  • Polarity: Non-inverting, any input to any output
  • Output: (1) RJ45
  • Power Requirements: Power over Ethernet (PoE), Class 0
  • Power Consumption: 10W, maximum
  • Weight: 1.5 lbs (672 g)
  • Dimensions (HxWxD): 1.6" x 5.5" x 5.0" (4 x 14 x 12.8 cm)
  • Control Application: HTML5 Browser-based
  • Temperature:
    • Operating Temperature Range: 20°F - 104°F (-6.7°C - 40°C)
    • Storage Temperature Range: -20°F - 165°F (-29°C - 74°C)
