Bose ESP-880-PROCESSOR
Control Space Processor

OUR PART #:  ESP-880-PROCESSOR

The Bose® ControlSpace® ESP-880 engineered sound processor is a single-rack-space DSP with an 8x8 analog audio configuration, built-in ESPLink output...
Learn More
Similar Products

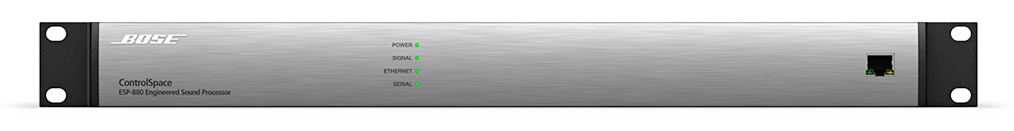

The Bose® ControlSpace® ESP-880 engineered sound processor is a single-rack-space DSP with an 8x8 analog audio configuration, built-in ESPLink output, and an open digital expansion slot ready to accommodate an optional Dante™ network audio card. This model meets today’s strict requirements for high-quality signal processing and control in a cost-effective package. The ESP-880 is designed for a
wide variety of applications ranging from small self-contained projects to larger networked applications.

The ESP-880 accommodates a total of 56 audio channels through analog audio connections (8 input, 8 output), ESPLink (8 output), and when an optional Dante™ audio network card is used, an additional 32 channels (16 input, 16 output) are available for signal processing, routing and switching. Alternatively, a Network Control card is available for clean rear-panel control network connections. For standalone applications or convenient service access, a front panel Ethernet connector allows for local configuration and monitoring. Onboard connectivity includes Serial over Ethernet, RS-232, 5 control inputs and 5 control outputs.

Any of the elegant Bose wall-mounted user interfaces—Including the programmable CC-64 and CC-16 controllers and three simplified zone volume interfaces— can be used to control all Bose networkable devices.

Open architecture configuration and control is enabled using Bose ControlSpace Designer™ software where an ever-expanding list of algorithms and improvements offers a high level of functionality for audio installations. Bose single-rack-space ESPs are designed for a wide variety of applications ranging from small self-contained projects to larger networked applications.

Bose ControlSpace® ESP-880 Features:

  • High-quality analog circuitry
  • Advanced digital signal processing
  • Expansion card slot
  • Bose® ControlSpace® Designer™ software
  • Front panel RJ-45 Ethernet
  • Built-in Bose ESPLink output
  • A variety of control options
  • Integration with industry-standard control systems

Bose ControlSpace® ESP-880 Specifications:

  • Dimensions (H x W x D): 1.7 x 19 x 8.5" (44 x 483 x215 mm)
  • Net Weight: 5.8 lb (2.6 kg)
  • Operating Temperature: 32 °F - 104 °F (0 °C - 40 °C)
  • Cooling System: Passive, side venting
  • PC Configuration Software: ControlSpace® Designer™ software
  • Network Control: Ethernet (RJ-45), 100 Mb
  • Communications Ports: RS-232 (DB9M, DTE), Bose CC-16 (3.81 mm Phoenix Contact®, 3-pin)
  • Expansion Slots: 1 control/audio network
  • Audio Channel Capacity: 56 (8 x 8 analog, 8 ESPLink out, 16 x 16 digital with expansion card)
