Bose ESP-880-REARETHERNET
Control Space Processor With Rear Ethernet Card

OUR PART #:  ESP-880-REARETHERNET

The Bose® ControlSpace® ESP-880 engineered sound processor is a single-rack-space DSP with an 8 x 8 analog audio configuration, built-in ESPLink output...
Learn More
Similar Products

The Bose® ControlSpace® ESP-880 engineered sound processor is a single-rack-space DSP with an 8 x 8 analog audio configuration, built-in ESPLink output, and an open digital expansion slot ready to accommodate an optional Dante™ network audio card. This model meets today’s strict requirements for high-quality signal processing and control in a cost-effective package. The ESP-880 is designed for a
wide variety of applications ranging from small self-contained projects to larger networked applications.

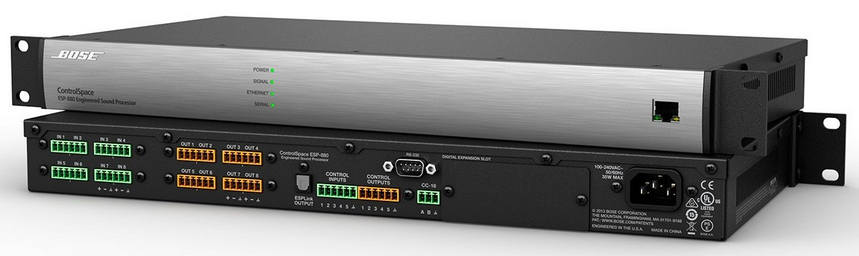

Note: Image shown is for display purposes only. For more information please contact your Full Compass Sales Pro.

The ESP-880 accommodates a total of 56 audio channels through analog audio connections (8 input, 8 output), ESPLink (8 output), and when an optional Dante™ audio network card is used, an additional 32 channels (16 input, 16 output) are available for signal processing, routing and switching. Alternatively, a Network Control card is available for clean rear-panel control network connections. For standalone applications or convenient service access, a front panel Ethernet connector allows for local configuration and monitoring. Onboard connectivity includes Serial over Ethernet, RS-232, 5 control inputs and 5 control outputs.

Any of the elegant Bose wall-mounted user interfaces— Including the programmable CC-64 and CC-16 controllers and three simplified zone volume interfaces— can be used to control all Bose networkable devices.

Open architecture configuration and control is enabled using Bose ControlSpace Designer™ software where an ever-expanding list of algorithms and improvements offer a high level of functionality for audio installations. Bose single-rack-space ESPs are designed for a wide variety of applications ranging from small self-contained projects to larger networked applications.

Bose® ControlSpace® ESP-880 Features:

  • High-quality analog circuitry offers both mic andline-level I/O, operates with ultra-low noise and 115 dB dynamic range
  • Advanced digital signal processing supports audio at 48kHz sample rate/24-bit, uses a floating-point open architecture DSP andoperates at low latencies for sound system precision
  • Expansion card slot supports the use of accessory networking cards, allowing digital audio to be sent and/or received from othercompatible products
  • Optional Dante™ network cards allow ESP processors to closely integrate with other product supporting Audinate®'s Dante audio networking solution
  • Bose® ControlSpace® Designer™ software enables a largeset of signal processing modules, such as automatic mic mixing, multibandgraphic and parametric EQs, Bose loudspeaker libraries, signal generators,routers, mixers, AGCs, duckers, gates, compressors, source selectors and delays
  • Built-in Bose ESPLink output sends up to 8 channels of uncompressed digital audio to ESPLink-equipped Bose PowerMatch® amplifiers
  • A variety of control options – ControlSpace ESP products are compatible with the programmable Bose CC-64 and CC-16 controllersand three simplified zone volume interfaces, as well as potentiometers and switches built by other manufacturers
  • Integration with industry-standard control systems using a comprehensive serial protocol through onboard RS-232 and Ethernet ports

Bose® ControlSpace® ESP-880 Specifications:

  • Dimensions (H x W x D): 1.7 x 19 x 8.5" (44 x 483 x 215mm)
  • Net Weight: 5.8 lb (2.6 kg)
  • Operating Temperature: 32 °F - 104 °F (0 °C - 40 °C)
  • Cooling System: Passive, side venting
  • PC Configuration Software: ControlSpace® Designer™software
  • Network Control: Ethernet (RJ-45), 100Mb
  • Communications Ports: RS-232 (DB9M, DTE), Bose CC-16(3.81 mm Phoenix Contact®, 3-pin)
  • Expansion Slots: 1 control/audio network
  • Audio Channel Capacity: 56 (8 x 8 analog, 8 ESPLink out, 16 x 16 digitalwith expansion card)
