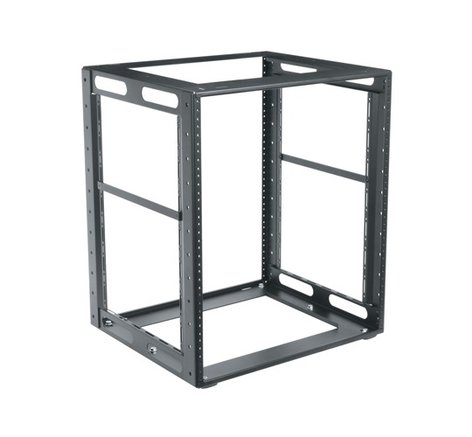

Middle Atlantic Products CFR-16-18
16RU, 18" Deep CFR Series Cabinet Frame Rack

OUR PART #:  CFR-16-18

Middle Atlantic's CFR-16-18 is a 16RU, 18" deep CFR Series cabinet frame rack.
Learn More
Our Price: $298.50
List Price: $398.00
You save 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Middle Atlantic Products CFR-16-18
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Middle Atlantic's CFR-16-18 is a 16RU, 18" deep CFR Series cabinet frame rack. This low profile, welded steel rack frame is designed to provide rackspace in entertainment systems, cabinets, credenzas, podiums, lecterns, and other similar spaces.

Middle Atlantic CFR-16-18 Cabinet Frame Rack Features:

  • Low-profile design maximizes amount of useable rackspace
  • Strong, welded steel frame construction allows for pre-loading equipment and transportation to the installation site
  • Comes standard with two adjustable front to rear lacing bars for cable dressing or mounting accessories
  • Rackrail features offset cable tie area which keeps the rack to a slim 19.25" width

Middle Atlantic CFR-16-18 Cabinet Frame Rack Specifications:

Technical Specifications

  • Material: Steel
  • Finish: Black Powder Coat
  • Rackrail Type: 10-32
  • Mounting: Horizontal
  • UL Load Capacity: 250 lbs (113.64 kg)
  • UL Standards Tested: UL1678

Listing Agencies

  • RoHS: Yes
  • Greenguard: Yes
  • UL Listing Number: E173107

Physical Specifications

  • Usable Depth: 18" (45.7 cm)
  • Usable Height: 28" (71.12 cm)
  • Dimensions: 18" D x 28.94" H x 19.25" W (45.7 x 73.51 x 48.9 cm)
  • Rack Units: 16
