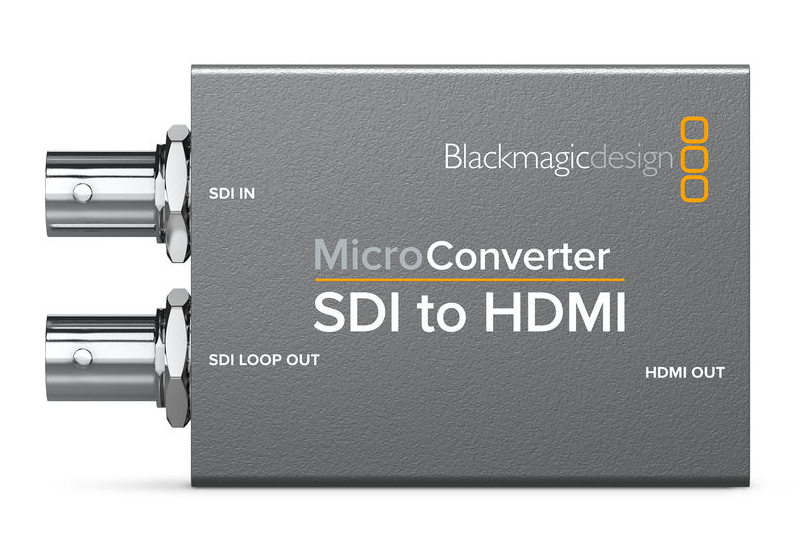

Blackmagic Design CONVCMIC/SH
SDI to HDMI Micro Converter

OUR PART #:  CONVCMIC/SH

From Blackmagic Design comes the CONVCMIC/SH, a miniaturized broadcast quality SD and HDMI video converter that converts SDI from professional equipment such as cameras, decks...
Learn More
Our Price: $85.00
Write the first review.
Blackmagic Design CONVCMIC/SH
Qty:
In Stock
Similar Products

From Blackmagic Design comes the CONVCMIC/SH, a miniaturized broadcast quality SD and HDMI video converter that converts SDI from professional equipment such as cameras, decks, switchers and routers, and converts it into HDMI for use with consumer TVs, projectors and more. The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You also get 3G-SDI loop through, support for Level A and Level B equipment, and power over USB.

This model, the CONVCMIC/SH (along with its HDMI to SDI micro converter counterpart) features full size HDMI and professional 3G-SDI connections for working with all SD and HD formats up to 1080p60. Unlike other small video converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into a proper metal enclosure. Customers get the same broadcast quality 10-bit video processing found in full size converters. In addition, Blackmagic Micro Converters also have SDI re-clocking on the 3G-SDI input which regenerates the SDI video input, reduces SDI jitter and improves SDI eye pattern before the signal is processed. This allows longer cable lengths and makes them incredibly reliable for use in professional broadcast.

Blackmagic Micro Converters are powered via the same micro USB connection that’s used on smartphones so customers can use the included DC plug pack, any USB device, or even a smartphone charger to power the converters. The included external power supply supports 110 to 240V AC and comes with 4 different AC socket adapters so customers can plug them into outlets anywhere in the world. That means they can be run from the external power supply, or even over USB from things such as big screen televisions or laptop computers if there are no AC wall outlets available.

Blackmagic Micro Converters are part of a large family of professional broadcast converters that include even more advanced models with a massively increased range of features. This range includes 3G, 6G and 12G-SDI models that are compatible with SD, HD and Ultra HD all the way up to high frame rate 2160p60. Blackmagic Mini Converters and Teranex Mini converters feature support for a wide range of connections such as balanced analog and AES/EBU audio, redundant inputs, analog video, optical fiber and more.

Blackmagic CONVCMIC/SH Micro Converter Includes:

  • Micro Converter SDI to HDMI
  • +5V universal power supply with international socket adapters

Blackmagic CONVCMIC/SH Micro Converter Features:

  • Available in SDI to HDMI model or HDMI to SDI model
  • Full size HDMI and 3G-SDI connections for working with all SD and HD formats up to 1080p60
  • Durable metal enclosure designed to be rugged enough to use anywhere
  • Professional Blackmagic Design broadcast quality10-bit video processing
  • SDI re-clocking on 3G-SDI input to reduce SDI jitter and improve SDI eye pattern
  • Power via micro USB connection from devices such as laptop computers, phone chargers, and televisions, or via the included DC plug pack with external 110V - 240V AC power supply

Blackmagic CONVCMIC/SH Micro Converter Specifications:

  • Connections:
    • SDI Video Input: 1 x SD, HD or 3G-SDI
    • SDI Video Output: 1 x SDI loop out
    • HDMI Output: HDMI Type A out
    • Multi Rate Support: Auto detection of SD or HD
    • Updates, Configurations and Power: Micro USB
  • Standards:
    • SDI Format Support: 525i29.97 NTSC, 625i25 PAL
    • HD Format Support:
      • 720p50, 720p59.94, 720p60
      • 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,1080p 60
      • 1080PsF25, 1080PsF29.97, 1080PsF30
      • 1080i50, 1080i59.94, 1080i60
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
    • SDI Video Rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI
    • SDI Color Precision: 4:2:2
    • SDI Color Space: YUV and RGB
    • SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
    • HDMI Format Support:
      • 525i29.97 NTSC, 625i25 PAL
      • 720p50, 59.94, 60
      • 1080p24, 25, 29.97, 30, 50, 59.94, 60
      • 1080i50, 59.94, 60
    • HDMI Color Precision: 4:2:2
    • HDMI Color Space: YUV
  • Software:
    • Software Control: Mac OS X™ and Windows™ software upgrade via micro USB
    • Internal Software Upgrade: Via micro USB
  • Operating Systems:
    • Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later
    • Windows 8.1 or Windows 10
  • Settings Control: Via sotware utility
  • Power Requirements:
    • Power Supply: +5V universal power supply included with international socket adapters for all countries.
    • Power Consumption: 1.60 Watts
    • Operational Voltage Range: 4.4V to 5.25V DC
  • Physical Specifications:
    • Dimensions (WxLxH): 1.80" x 3.01" x 0.98"
    • Weight: 5.29 oz.
  • Environmental Specifications:
    • Operating temperature: 32° to 104° F (0° to 40° C)
    • Storage temperature: -4° to 140° F (-20° to 60° C)
    • Relative Humidity: 0% to 90% non-condensing
  • Warranty: 3 Year Limited Manufacturer's Warranty
