NTI ICP Adapter ASD
48V to ICP Power Adapter for XL2 Audio Analyzer

OUR PART #:  600-010-223

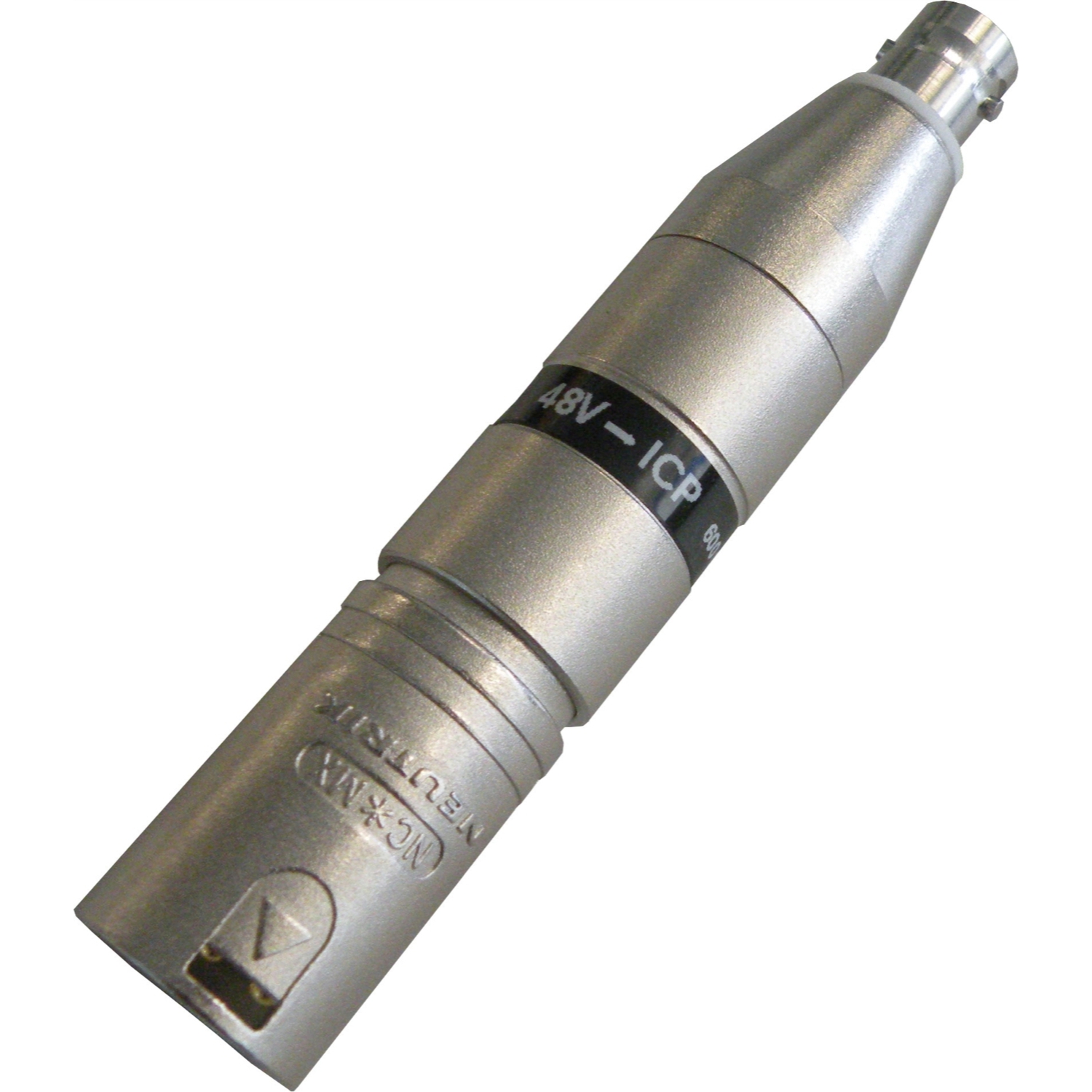

The ICP® Adapter ASD (part no. 600 010 223) from NTi Audio connects to NTi's XL2 Audio Analyzer and generates ICP power supply for accelerometers and other custom sensors.
Learn More
Our Price: $275.32
List Price: $285.00
Write the first review.
NTI ICP Adapter ASD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

The ICP® Adapter ASD (part no. 600 010 223) from NTi Audio connects to NTi's XL2 Audio Analyzer and generates ICP power supply for accelerometers and other custom sensors. This adapter offers an electronic data sheet, which stores the sensitivity and individual serial number of the connected sensor.

NTi Audio ICP Adapter ASD Specifications:

  • Part Number: 600 010 223
  • Output / Input: XLR / BNC
  • Power Supply for Sensors:
    • ICP
    • 4 mA +/- 0.02 mA
  • Power Supply from XL2: 48 V Phantom Power
  • Maximum Input Level: 8.84 V (146.9 dB @ Sensitivity =20 mV/Pa)
  • Residual Noise typical:
    • LA = 2.5 µV
    • LZ = 3.5 µV
  • THD @ 1 kHz, 1 Vrms: < 80 dB
  • Frequency Range: 2.1 Hz - 300 kHz
