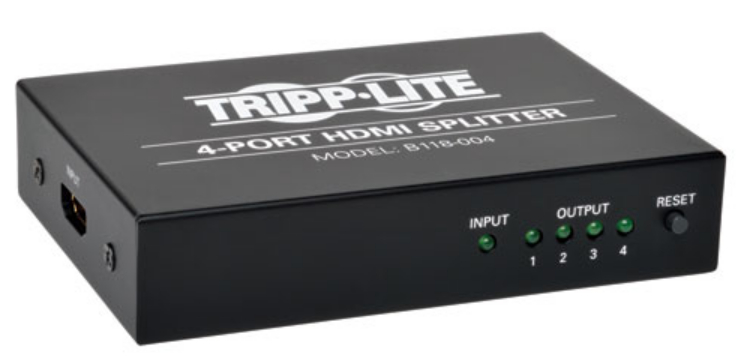

Tripp Lite B118-004
4-Port HDMI Splitter for Video and Audio

OUR PART #  B118-004

Our Price: $109.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

By using Tripp Lite's B118-004, 4-Port HDMI Splitter you can prevent a fuzzy signal from clouding up your digital display message. The B118-004 is a splitter that can handle 1920x1200 at 60Hz/1080p (HDMI F/4xF) which allows the digital signal from a Blu-Ray player or other HDMI device to be displayed on four HDMI displays. Connect a DVI-D Single Link display using an HDMI to DVI adapter, such as Tripp Lite's P566-Series cables. Installation is quick and simple, with no software or drivers to install.

Simply locate your HDMI source up to 13 ft. (4 m.) from the splitter, and the splitter up to 16 ft. (5 m.) from a display, for a max distance of 29 ft. (9 m.) between source and display. Multiple splitters can be cascaded together to connect additional monitors, with no more than 6 levels of splitters in all. This model supports HD video resolutions up to 1080p, and computer video resolutions up to 1920 x 1200. This unit is High Speed HDMI and 3D compliant, with support for 36-bit Deep Color (12-bits per channel). It also supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio along with being HDCP and EDID compliant.

Tripp Lite B118-004 System Requirements:

  • TV's with an available HDMI port and a HDMI peripheral device (e.g. Blu-Ray player, DVR, etc.)
  • The cable connecting the HDMI source to the splitter must be no longer than 13 ft. (4 m.)
  • The cable connecting the splitter to a HDMI monitormust be no longer than 16 ft. (5 m.)

Tripp Lite B118-004 Includes:

  • B118-004 4-Port HDMI Splitter
  • External Power Supply with NEMA 1-15P Plug (Input:100-240V, 50/60Hz, 0.5A; Output: 5V, 1.2A, 4.9 ft.)
  • Owners Manual

Tripp Lite B118-004 Features:

  • Transmit a HDMI signal from a single source to four displays
  • Display HD video resolutions up to 1080p, and computer video resolutions up to 1920 x 1200
  • Supports up to 36-bit Deep Color (12-bits per channel)
  • High Speed HDMI and 3D compliant
  • Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio
  • HDCP and EDID compliant
  • Plug and play; No software or drivers required
  • Locate a monitor up to 29 ft. (9 m.) from a HDMI source; up to 13 ft. (4 m.) between the source and the switch; up to 16 ft. (5m.) between the switch and a monitor
  • Cascade multiple levels of splitters together to increase the number of connected monitors, with no more than 6 levels of splitters in all
  • Connect a DVI-D Single Link display using an HDMI toDVI adapter, such as Tripp Lite's P566-Series cables

Tripp Lite B118-004 Specifications:

  • Overview:
    • AC Adapter  Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 1.2A, 4.9 ft
  • Connections:
    • Connector A: HDMI (FEMALE)
    • Connector B: (4) HDMI (FEMALE)
    • Number of Connectors: 5
    • Ports: 4
  • Warranty:
    • Product Warranty Period (Worldwide): 1-year limited warranty



Tripp Lite B118-004
4-Port HDMI Splitter for Video and Audio

OUR PART #  B118-004

Product Information:

By using Tripp Lite's B118-004, 4-Port HDMI Splitter you can prevent a fuzzy signal from clouding up your digital display message. The B118-004 is a splitter that can handle 1920x1200 at 60Hz/1080p (HDMI F/4xF) which allows the digital signal from a Blu-Ray player or other HDMI device to be displayed on four HDMI displays. Connect a DVI-D Single Link display using an HDMI to DVI adapter, such as Tripp Lite's P566-Series cables. Installation is quick and simple, with no software or drivers to install.

Simply locate your HDMI source up to 13 ft. (4 m.) from the splitter, and the splitter up to 16 ft. (5 m.) from a display, for a max distance of 29 ft. (9 m.) between source and display. Multiple splitters can be cascaded together to connect additional monitors, with no more than 6 levels of splitters in all. This model supports HD video resolutions up to 1080p, and computer video resolutions up to 1920 x 1200. This unit is High Speed HDMI and 3D compliant, with support for 36-bit Deep Color (12-bits per channel). It also supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio along with being HDCP and EDID compliant.

Tripp Lite B118-004 System Requirements:

  • TV's with an available HDMI port and a HDMI peripheral device (e.g. Blu-Ray player, DVR, etc.)
  • The cable connecting the HDMI source to the splitter must be no longer than 13 ft. (4 m.)
  • The cable connecting the splitter to a HDMI monitormust be no longer than 16 ft. (5 m.)

Tripp Lite B118-004 Includes:

  • B118-004 4-Port HDMI Splitter
  • External Power Supply with NEMA 1-15P Plug (Input:100-240V, 50/60Hz, 0.5A; Output: 5V, 1.2A, 4.9 ft.)
  • Owners Manual

Tripp Lite B118-004 Features:

  • Transmit a HDMI signal from a single source to four displays
  • Display HD video resolutions up to 1080p, and computer video resolutions up to 1920 x 1200
  • Supports up to 36-bit Deep Color (12-bits per channel)
  • High Speed HDMI and 3D compliant
  • Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio
  • HDCP and EDID compliant
  • Plug and play; No software or drivers required
  • Locate a monitor up to 29 ft. (9 m.) from a HDMI source; up to 13 ft. (4 m.) between the source and the switch; up to 16 ft. (5m.) between the switch and a monitor
  • Cascade multiple levels of splitters together to increase the number of connected monitors, with no more than 6 levels of splitters in all
  • Connect a DVI-D Single Link display using an HDMI toDVI adapter, such as Tripp Lite's P566-Series cables

Tripp Lite B118-004 Specifications:

  • Overview:
    • AC Adapter  Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 1.2A, 4.9 ft
  • Connections:
    • Connector A: HDMI (FEMALE)
    • Connector B: (4) HDMI (FEMALE)
    • Number of Connectors: 5
    • Ports: 4
  • Warranty:
    • Product Warranty Period (Worldwide): 1-year limited warranty
