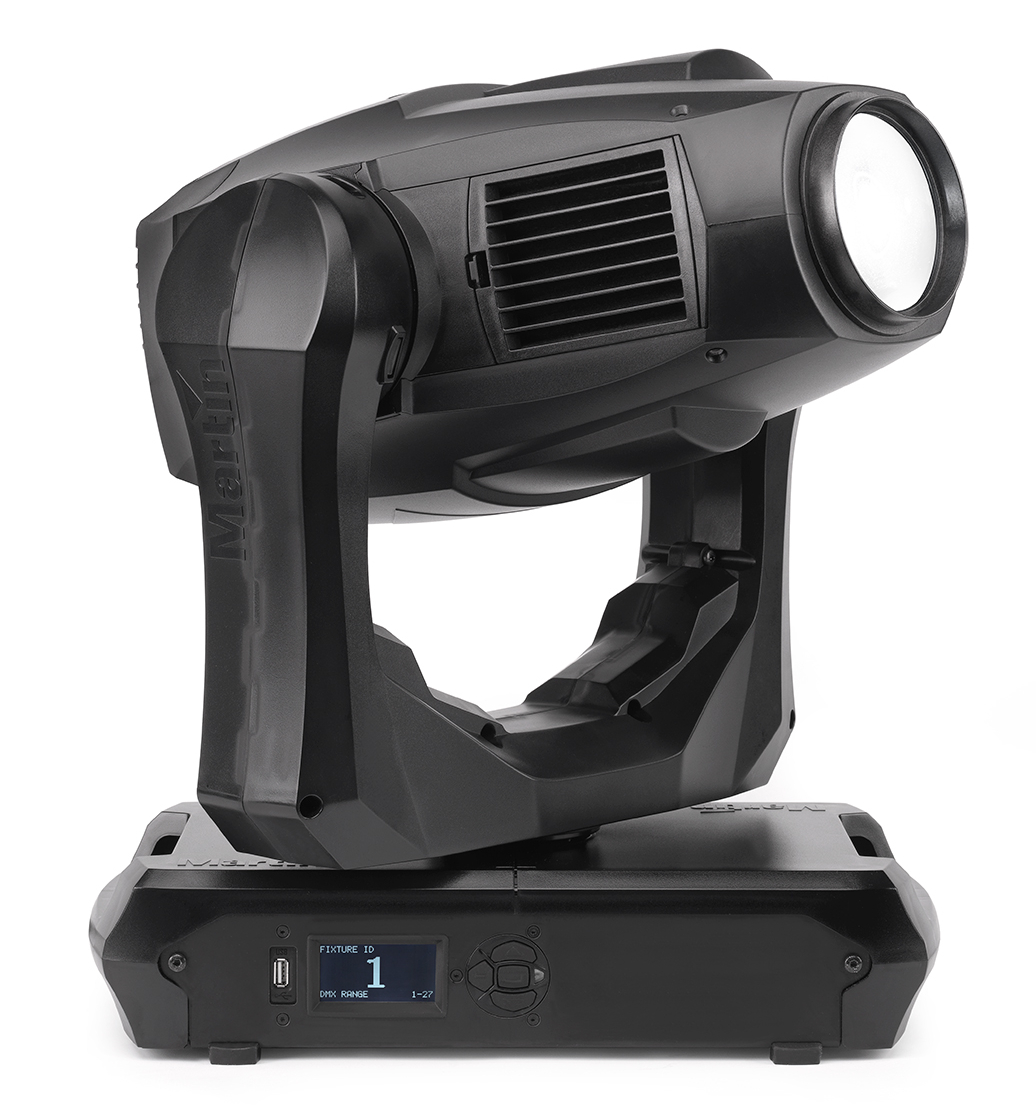

Martin Pro MAC Quantum Profile 475W LED Moving Head Fixture With Zoom And CMY Color Mixing In 2-unit Case Image 1
Martin Pro MAC Quantum Profile 475W LED Moving Head Fixture With Zoom And CMY Color Mixing In 2-unit Case Image 2
Martin Pro MAC Quantum Profile 475W LED Moving Head Fixture With Zoom And CMY Color Mixing In 2-unit Case Image 3
Martin Pro MAC Quantum Profile 475W LED Moving Head Fixture With Zoom And CMY Color Mixing In 2-unit Case
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The MAC Quantum Profile™ (FC) from Martin is an extremely bright LED profile fixture that combines top-quality white light with a fast, smooth CMY color mixing system and crisp gobo projection on surfaces as well as mid-air. This model (P/N 90240010) comes in a 2-unit flightcase and includes two (2) omega brackets for rigging clamp attachment (P/N 91602001.) With all this and the new Animotion™ FX system that allows never-before seen beam animations, the market is now seeing the first real 700/800 W discharge lamp replacement in a profile fixture that effectively harnesses cutting-edge LED technology.

Martin MAC Quantum Profile (FC) Features:

  • First real alternative to a 700/800 watt HID fixture
  • Flat field, crisp image, high contrast
  • Pure white LED with 6,500 K combined with quick and even CMY color mixing
  • Full feature set including CMY color mixing and 1:3 zoom
  • Very low weight and compact design
  • Super high-speed movements and effects
  • Consistent photometric performance via latest LED technology

Martin MAC Quantum Profile (FC) Specifications:

  • Ordering Info:
    • MAC Quantum Profile™ in 2-unit flightcase: P/N 90240010
  • Physical:
    • Length: 452 mm (17.8 in.)
    • Width (across yoke): 431 mm (17.0 in.)
    • Height (head straight up): 642 mm (25.3 in.)
    • Height (maximum): 648 mm (25.5 in.)
    • Weight: 23.2 kg (51.1 lbs.)
  • Dynamic Effects:
    • Color mixing: CMY, independently variable 0 - 100%
    • Color wheel: 6 color filters plus open
    • Rotating gobo wheel: 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
    • Static gobo wheel: 10 gobos plus open, wheel indexing, rotation and shake
    • Beam effects: Rotating three-facet prism
    • Zoom: Motorized
    • Focus: Motorized, with zoom-focus tracking
    • Iris: 0 - 100%, pulse effects
    • Shutter effect: Electronic, with variable speed regular and random strobe
    • Electronic dimming: Four dimming curve options
    • Pan: 540°
    • Tilt: 268°
    • Pan and tilt speed: Adjustable via onboard control panel and DMX
  • Control and Programming:
    • Control system: DMX
    • RDM: Implemented
    • Control resolution: 8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tilt
    • DMX channels: 19/27
    • Setting and addressing: Control panel with backlit graphic display
    • DMX compliance: USITT DMX512-A
    • RDM compliance: ANSI/ESTA E1.20
    • Transceiver: RS-485
    • Fixture software update: Direct using USB memory stick or via DMX link using Martin USB Duo™ DMX Interface Box
  • Optics:
    • Light source: 475 W LED engine
    • LED refresh rate: 3000 Hz
    • Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
  • NOTE: *Figure obtained under manufacturer´s test conditions
      • Zoom range: 12° - 36° (1:3)
      • Output: 12 700 lumens
    • Construction:
      • Color: Black
      • Housing: High-impact flame-retardant thermoplastic
      • Protection rating: IP20
    • Installation:
      • Mounting points: 4 pairs of quarter-turn locks
      • Location: Indoor use only, must be fastened to surface or structure
      • Orientation: Any
      • Minimum distance to combustible materials: 0.2 m
      • Minimum distance to illuminated surfaces: 2.0 m
    • Connections:
      • AC power input: Neutrik PowerCon
      • DMX and RDM data in/out: 5-pin locking XLR
    • Electrical:
      • AC power: 120-240 V nominal, 50/60 Hz
      • Power supply unit: Auto-ranging electronic switch mode
      • Maximum total power consumption: 750 W
      • Typical half-cycle RMS inrush current: 10.3 A
    • Typical power consumption, all effects static, zero light output: Approx. 50 W
    • Maximum total power consumption: 750 W
    • Typical half-cycle RMS inrush current: 10.3 A
    • Typical Power and Current:
    • 120 V, 60 Hz: 4.8 A, 576 W, PF 0.999
    • 208 V, 60 Hz: 2.8 A, 568 W, PF 0.991
    • 230 V, 50 Hz: 2.5 A, 565 W, PF 0.988
    • 240 V, 50 Hz: 2.4 A, 565 W, PF 0.988
  • NOTE: Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
    • Thermal:
      • Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
      • Maximum ambient temperature (Ta max.): 40° C / 104° F
      • Minimum ambient temperature (Ta min.): 5° C / 41° F
      • Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
    • Approvals:
    • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
    • EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
    • US safety (pending): UL 1573
    • US EMC: FCC Part 15 Class A
    • Canadian safety (pending): CSA C22.2 No. E598-2-17 (CSA E60598-1)
    • Canadian EMC: ICES-003 Class A
    • Australia/NZ: C-TICK N4241
