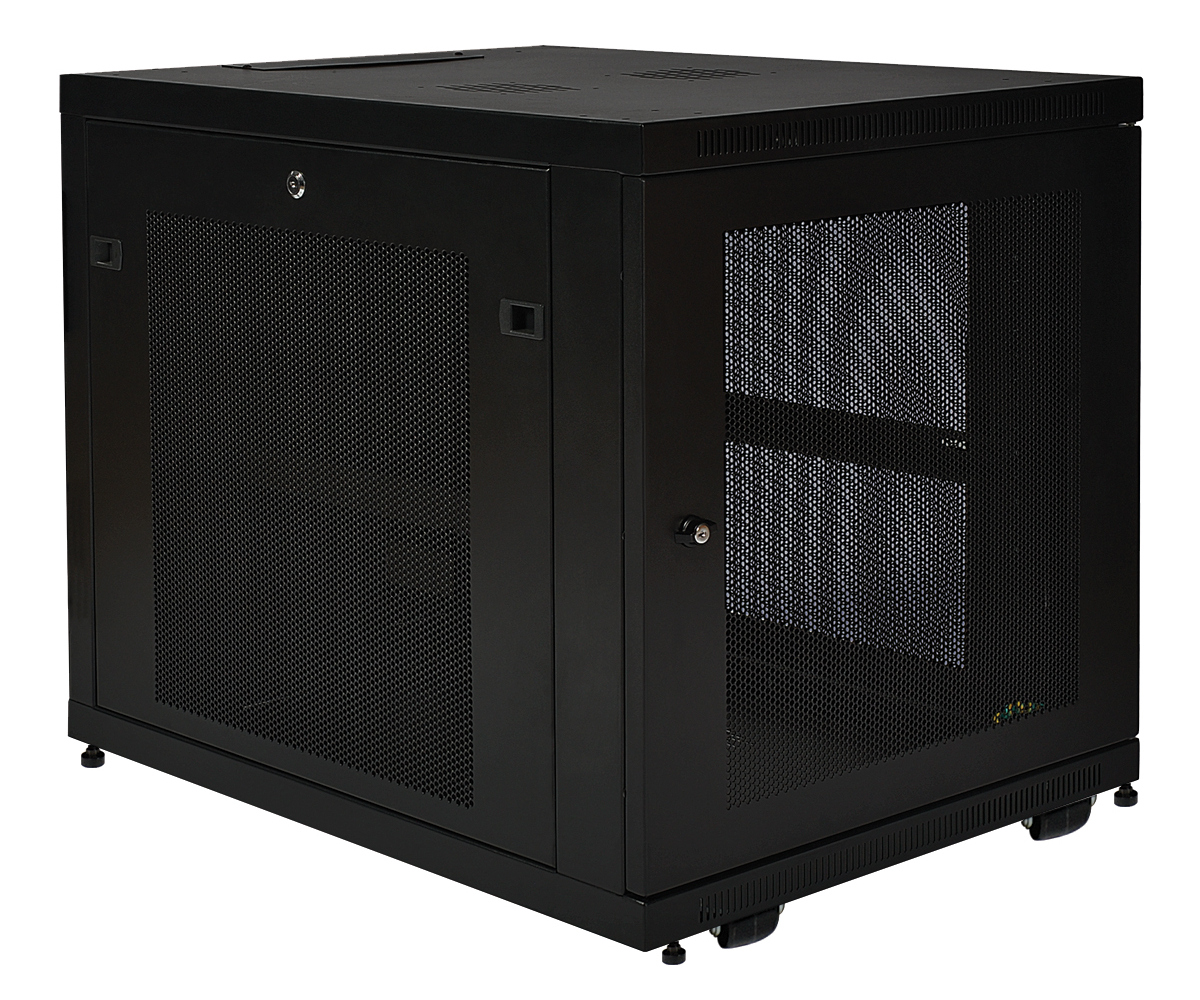

Tripp Lite SR12UB
12RU SmartRack Deep Rack Enclosure Cabinet

OUR PART #  SR12UB

Our Price: $630.00
List Price: $810.00
You save 22%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Tripp Lite's SR12UB premium SmartRack 12RU Deep Rack Enclosure Cabinet is designed to simplify rack equipment installation and maintenance. Compatible with all standard 19" rack equipment, this black heavy-duty rack enclosure is well suited for data centers and IT environments that need a secure, extra depth cabinet capable of supporting up to 1,000 lbs of equipment in a full 12RU of rack space.

Tripp Lite SR12UB SmartRack 12RU Enclosure Cabinet Includes:

  • SR12UB Rack Enclosure
  • (36) M6 screws
  • (36) M6 cage nuts
  • (36) M6 washers
  • SRACASTER kit (includes 4 casters)
  • (2) keys
  • Owner's manual

Tripp Lite SR12UB SmartRack 12RU Enclosure Cabinet Features:

  • Simple Installation: Compatible with all standard 19" rack equipment and is designed to simplify equipment installation. It features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from 3" to 32.5".The rails feature square mounting holes and are capable of supporting up to 1,000 lbs. of equipment with included installation hardware. The top and bottom panels are also provided with ports for cable routing. Each rack space within the enclosure is numbered for easy reference.
  • Secure Equipment Access: Designed to provide a safe, secure installation solution fo rup to 1,000 lbs. of mission-critical rackmount equipment. It features a locking, reversible front door and locking, removable side panels. This prevents unauthorized access to installed equipment while making it easy for authorized personnel to perform inspections, maintenance and equipment replacement.
  • Convection Cooling: The top and bottom panels are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection.The panels also support installation of standard user-supplied case fans
  • Casters for Mobility: Comes with an accessory caster kit consisting of 4 casters and all required installation hardware. With the casters installed, the SR12UB can easily be maneuvered into the desired location, and then secured in place by adjusting the unit’s levelers.PLEASE NOTE: the casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances.

Tripp Lite SR12UB SmartRack 12RU Enclosure Cabinet Specifications:

  • Rack Height: 12RU
  • Maximum Device Depth: 32.5" (82.55 cm)
  • Minimum Device Depth: 3" (7.62 cm)
  • Dimensions: 25.1" H x 23.63" W x 33.5" D (63.754 x 60.02 x 85.09 cm)
  • Weight: 105 lbs (47.7 kg)
  • Color: Black
  • Weight Capacity - Stationary: 1000 lbs (454.55 kg)
  • Weight Capacity - Rolling: 1000 lbs (454.55 kg)
  • Factory Preset Rack Depth: 28.31" (71.9 cm)
  • Cable Access Hole Measurement: 9.812" L x 2.35" W (24.9 x 5.97 cm)
  • Grounding Lug: Front and back door frames
  • Certifications: RoHS; UL/CSA 60950-1
  • NOM: Tested to NOM (Mexico)
  • Approvals: EIA/ECA-310-E
  • Warranty: 5-year limited
