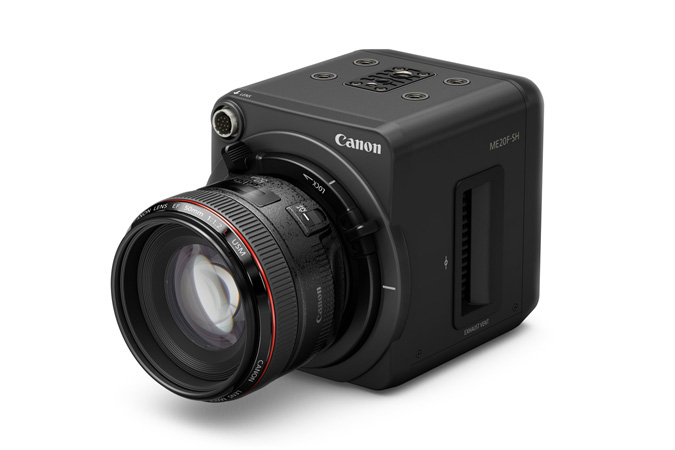

Canon ME20F-SH HD Multi Purpose Low Light Camera
with EF mount

OUR PART #:  ME20F-SH

Canon's new ME20F-SH Multi-Purpose Camera features a newly designed Canon 2.2MP high sensitivity CMOS sensor helping users to shoot crisp...
Learn More
Similar Products

Canon's new ME20F-SH Multi-Purpose Camera features a newly designed Canon 2.2MP high sensitivity CMOS sensor helping users to shoot crisp, clean high definition full-color video in extreme low light conditions. The ME20F-SH's versatile, rugged, modular design, combined with a 35mm full frame CMOS sensor with an equivalent sensitivity in excess of 4,000,000 ISO, make it ideal for a wide variety of markets. A remarkable example of Canon's innovative engineering, the camera can be used for television, cinema, nature and wildlife, documentary production, astronomy, military, security and law enforcement.

Canon ME20F-SH Multi-Purpose Camera Includes:

  • ME20F-SH
  • 2-pin DC Power Contact

Canon ME20F-SH Multi-Purpose Camera Features:

  • Exceptional Low Light Performance
  • Versatile, Rugged Design
  • Full HD Video up to 60fps
  • Professional Connectivity
  • Compatible with EF-mount Lenses
  • Infrared Shooting
  • Built-In Density ND Filter
  • Digital Teleconverter
  • One-Shot AF
  • Push Auto Iris

Canon ME20F-SH Multi-Purpose Camera Specifications:

  • Image Sensor:
    • Sensor: 35mm Full Frame CMOS (16:9 extract)
    • Total Pixels: Approx. 2.59M (2160 x 1200)
    • Effective Pixels: Approx. 2.26M (2000 x 1128)
    • Resolution: 1920 x 1080, 1280 x 720
    • Pixel Size: 19um x 19um
    • Min. Sub. Illum.: 0.0005 lux or less (at 75dB, F1.2, 29.97P, 50IRE)
    • Color Filter Array: RGB Bayer
  • Lens System:
    • Canon EF Mount: Cinema Lock type
    • Canon EF Lenses: EF, EF-S & Cinema (EF) (compatible lenses to be confirmed)
  • Input Terminals:
    • GEN LOCK: Black burst or Tri-level reference
    • Microphone: f3.5mm stereo mini jack (plug-in power mic supported)
    • Remote Control:
      • Remote A: f2.5mm stereo mini jack (Canon protocol)
      • Remote B: Circular 8-pin for RS-422 (Canon protocol)
  • Output Terminals:
    • 3G/HD-SDI:
      • Terminal 1 (On screen display optional)
      • Terminal 2 (Clean out only)
      • Bit Depth: YCbCr422 10bits (effective bits: 8)
      • Frame Rates:
        • 1920 x 1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P
        • 1280 x 720: 59.94P/50P/29.97P/25P/23.98P
    • HDMI:
      • Terminal 1 (On screen display optional)
      • Bit Depth: RGB444, YCbCr422, YCbCr444 (effective bits: 8 for each format)
      • Frame Rates:
        • 1920 x 1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P
        • 1280 x 720: 59.94P/50P/29.97P/25P/23.98P
  • Exposure Modes:
    • Auto Exposure (AE):
      • Iris, Gain, Shutter and ND filter operating together (Cannot set auto/manual separately)
      • AE shift/AE response selectable
      • AGC limit can be set from 36dB to Off/75dB (3-dB intervals)
    • Manual:
      • Iris: 1/2 stops (push auto iris can be set to an assign button)
      • Gain: 0dB to 75dB @ 3-dB intervals (approx. ISO 4,560,000 equivalent at 75dB)
      • Shutter: 1/3 to 1/2000 (1/4 stops)
  • Image Control:
    • Focus Control:
      • Manual Focus (when used with RC-V100)
      • ONE SHOT AF (can be set to an assign button)
    • W/B: AWB (2,000K-15,000K), Daylight, Tungsten, Custom Set A, Custom Set B
    • Optical Filters:
      • ND filters: 1/8 & 1/64 Built-in (auto or motorized manual)
      • IR cut filter: On/Off (motorized manual)
    • Digital Teleconverter: 2x, 4x
    • Custom Picture Setting: EOS Standard, Wide DR, Canon Log, Custom 1-6
    • Other Functions: Auto black balance, color bar, test tone (interlocking with color bar), assign buttons, peripheral illumination correction, focus limit, crop for EF-S Lens, scan reverse, flicker reduction, noise reduction, time display, hour meter
  • Power Input:
    • Terminals: XLR 4-pin or terminal block 2-pin jack
    • Input: DC +11V ~ +17V
    • Consumption: Power Consumption Approx. 12W (body only)
  • Operating Temperature: Approx. 0 - 40 °C (32-104 °F)
  • Dimensions: 4.0" x 4.6" x 4.4" (102 x 116 x 113mm)
  • Weight: Approx. 2.4 lbs. (1,100g)
  • Related Accessories: Canon RC-V100 Remote Controller, Canon EF Lenses
