Product Overview

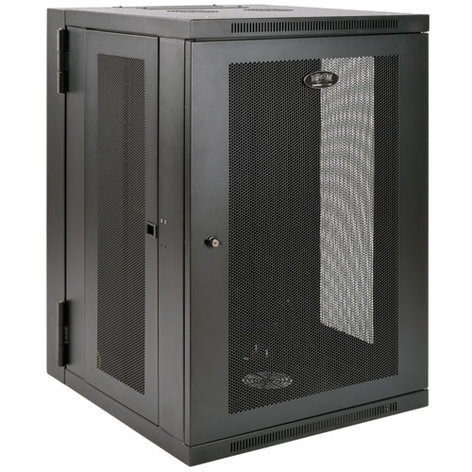

Tripp Lite's SRW18USDP SmartRack 18RU UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19" rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, this wall-mount cabinet has a maximum load capacity of 250 lbs. Its vertical mounting rails adjust in 7/8" increments to accommodate equipment up to 24.5" deep, such as network switches, UPS systems and related battery packs and cabling.
The SRW18USDP enclosure swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage or theft, and the front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. Other features include reversible doors that open left or right by rotating the cabinet 180° before mounting, and convenient top and bottom ports for easy cable routing. The enclosure comes fully assembled and ready to mount to the wall
Tripp Lite SRW18USDP SmartRack 18RU Wall-Mount Rack Enclosure Includes:
- SRW18USDP SmartRack 18RU UPS-Depth Wall-Mount Rack Enclosure Cabinet
- (42) M6 screws
- (42) M6 cage nuts
- (42) M6 washers
- (42) 12-24 screws
- (2) Keys
- Owner's Manual
Tripp Lite SRW18USDP SmartRack 18RU Wall-Mount Rack Enclosure Features:
- Saves Valuable Workspace
- Well suited for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space
- Houses EIA-standard 19" rack equipment in 18RU of space
- Maximum load capacity of 250 lbs
- Hinged Cabinet for Convenient Access
- Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance
- Rotate cabinet 180° before mounting to open reversible doors left or right
- Keeps Important Equipment Secure
- Side panels and doors lock securely to help prevent damage, tampering or theft
- Vented panels allow generous airflow that keeps equipment cool
- Convenient ports with removable covers allow cable routing through top and bottom
- Easy Enclosure and Equipment Installation
- Ships fully assembled for quick installation
- Mounts to wall or rolls on floor with Tripp Lite’s optional SRCASTER caster kit (sold separately)
- Wall-mounting holes spaced 16" apart for standard wall stud placement
- Vertical mounting rails adjust in 7/8" increments to accommodate equipment up to 24.5" deep, such as network switches, UPS systems, battery packs and cabling
- Rails adjust easily—unscrew them, slide them to desired depth, and screw them back in
- Rails support square-hole or threaded-hole mounting
- Rack spaces numbered for easy reference
- Meets Payment Card Industry Standards
- Provides physical equipment and media security required for PCIDSS (Payment Card Industry Data Security Standard) compliance
Tripp Lite SRW18USDP SmartRack 18RU Wall-Mount Rack Enclosure Specifications:
- Physical Specifications:
- Rack Height: 18RU
- Maximum Service Depth: 24.5" (62.23 cm)
- Minimum Service Depth: 3" (7.62 cm)
- Dimensions: 35.61" H x 23.5" W x 26" D (90.45 x 59.69 x 66.04 cm)
- Weight: 100.9 lbs (45.9 kg)
- Color: Black
- Weight Capacity (Stationary): 250 lbs (113.64 kg)
- Factory Preset Rack Depth: 9.84" (24.99 cm)
- Cable Access Hole Measurement: 9.812" L x 2.35" W (24.9 x 5.97 cm)
- Special Features:
- Grounding Lug: Front and back door frames
- Certifications:
- NOM: Tested to NOM (Mexico)
- Approvals: EIA-310-D, IEC 60297-3-100, IP20 Protection Rating, RoHS
- Warranty: 5-year limited warranty
