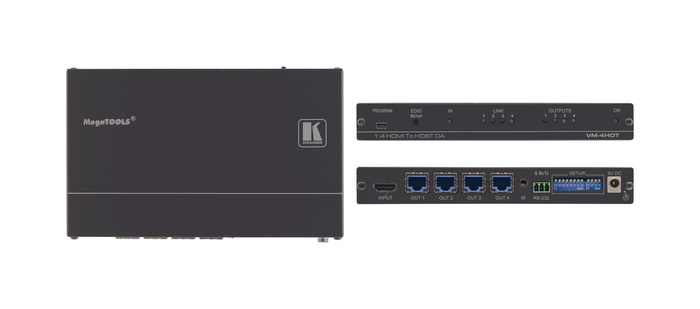

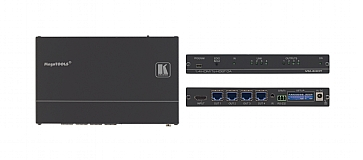

Kramer VM-4HDT
1:4 4K UHD HDMI to HDBaseT Distribution Amplifier

OUR PART #:  VM-4HDT

Kramer's VM-4HDT is a high-quality 1:4 4K UHD HDMI to HDBT distribution amplifier that takes one HDMI input...
Learn More
Our Price: $840.00
List Price: $1,050.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VM-4HDT
Qty:
In Stock

Similar Products

Kramer's VM-4HDT is a high-quality 1:4 4K UHD HDMI to HDBT distribution amplifier that takes one HDMI input, equalizes and reclocks the signal and distributes it to four identical HDBT outputs. The VM-4HDT distributes signals having resolutions of up to 4K and including WUXGA and 1080p. Power supply is included.

Applications:

  • Boardrooms and meeting rooms
  • Presentation and multimedia applications
  • Home theater
  • Rental and staging

Kramer VM-4HDT Distribution Amplifier Specifications:

  • Maximum Data Rate - 10.2Gbps (3.4Gbps per graphic channel)
  • Max. Resolution - Up to 4K UHD and WUXGA, including 4K @60Hz (4:2:0)
  • HDMI Support - 3D, Deep Color, x.v.Color™, 3D
  • HDCP Compliance - Sources that support HDCP output HDCP protected content
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling and processing algorithm that ensures Plug and Play operation for HDMI systems
  • Default EDID - For fast and efficient connection
  • 3D Pass-Through
  • Range - 70m (230ft)
  • Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter
  • Input: HDMI connector
  • Outputs: Four HDBT connectors
  • MAX. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • MAX. Resolution: Up to 4K and 1080p at 60Hz
  • Compliance with HDMI Standard: Supports HDMI and HDCP
  • Controls: EDID Setup button, RS-232, IR
  • Indicator LEDs:
    • Outputs: 1 to 4
    • Link: 1 to 4, IN
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing
  • Power Consumption: 5V DC, 800mA
  • Dimensions (WxDxH): 7.4" x 4.53" x 1.15" (18.8cm x 11.5cm x 2.9cm)
  • Weight: 1.01lb (0.46kg)
  • Options: RK-T2B 19” rack adapter
