Product Overview

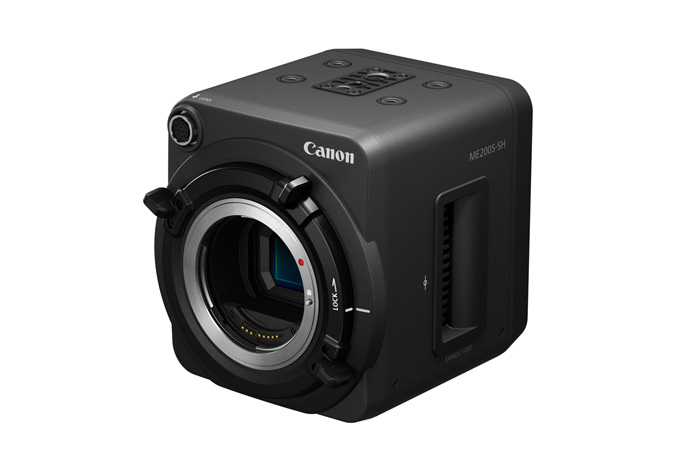

Canon's ME200S-SH Multi-Purpose camera delivers the high quality video and versitility needed for a wide range of professional video production applications. The ME200S-SH camera's modular design allows you to connect only the components you need, depending on how you want to use the camera- making it easy to incorporate into a variety of camera systems. An HDMI terminal allows for connection to compatible third party external displays, and 3G/HD-SDI terminals allow for connection to compatible third party external displays and recording devices. Offering high quality video and flexible expandability, the affordable ME200S-SH Multi-Purpose camera can be ideal for television, nature and wildlife, documentary production, security and law enforcement.
Canon ME200S-SH Multi-Purpose Camera Includes:
- ME200S-SH
- 2-pin DC Power Contact
Canon ME200S-SH Multi-Purpose Camera Features:
- Canon Super 35mm CMOS Sensor
- Dual Pixel CMOS AF (Auto-Focus)
- Outstanding Low Light Performance
- Professional Connectivity and Remote ControlCompatibility
- Full HD Video up to 60fps
- Compact, Rugged Box-Style Design
- Compatible with Select EF-mount Lenses
- Lens Function Compatability
- Infrared Shooting
- Neutral Density Filters
- Digital Teleconverter (2x, 4x, 8x)
- One-Shot AF
- Push Auto Iris
Canon ME200S-SH Multi-Purpose Camera Specifications:
- Image Sensor:
- Sensor: Super 35mm CMOS
- Total Pixels: Approx. 9.84 (4206 x 2340)
- Effective Pixels: Approx. 8.29M (3840 x 2160)
- Resolution: 1920 x 1080, 1280x720
- Min. Sub. Illum.: 0.015 lux or less (at 56dB, F1.2, 29.97P, 1/30 sec shutter)
- Color Filter Array: RGB Bayer
- Lens System:
- Canon EF Mount: Cinema Lock type
- Cinema Lock type: Select EF, EF-S and Cinema (EF-mount) Lenses
- Input Terminals:
- GEN LOCK: Black burst or Tri-level reference
- Microphone: f3.5mm stereo mini jack (plug-in power mic supported)
- Remote Control:
- Remote A: f2.5mm stereo mini jack (Canon protocol)
- Remote B: Circular 8-pin for RS-422 (Canon protocol)
- Output Terminals:
- 3G/HD-SDI:
- Terminal 1 (On screen display optional)
- Terminal 2 (Clean out only)
- Bit Depth: YCbCr422 10bits (effective bits: 8)
- Frame Rates:
- 1920 x 1080:59.94P/59.94i/50P/50i/29.97P/25P/23.98P
- 1280 x 720: 59.94P/50P/29.97P/25P/23.98P
- HDMI
- Terminal 1 (On screen display optional)
- Bit Depth: RGB444, YCbCr422, YCbCr444 (effective bits: 8 for each format)
- Frame Rates:
- 1920 x 1080:59.94P/59.94i/50P/50i/29.97P/25P/23.98P
- 1280 x 720: 59.94P/50P/29.97P/25P/23.98P
- Exposure Modes:
- Auto Exposure (AE):
- Iris, Gain, Shutter and ND filter operating together (Cannot set auto/manual separately)
- AE shift/AE response selectable
- AGC limit can be set from 30dB to 54dB (3dB intervals) / Off(56dB)
- Iris: 1/2 stops (push auto iris can be set to an assign button)
- Gain: 0dB to 56dB @ 3dB intervals (approx. ISO 204,800 equivalent at 56dB
- Shutter: 1/3 to 1/2000 (1/4 stops); 1/3 only at 23.98p
- Image Control:
- Focus Control:
- Continuos Auto-Focus (Dual Pixel CMOS AF)
- One-Shot AF (can be set to an assign button)
- W/B: AWB (2,000K-15,000K), Daylight, Tungsten, Custom Set A, Custom Set B
- Optical Filters:
- ND filters: 1/8 & 1/64 Built-in (auto or motorized manual)
- IR cut filter: On/Off (motorized manual)
- Digital Teleconverter: 2x, 4x, 8x
- Custom Picture Setting: EOS Standard, Wide DR, Canon Log, Custom 1-6
- Other Functions: Auto black balance, color bar, test tone (interlocking with color bar), assign buttons, peripheral illumination correction, focus limit, crop for EF-S Lens, scan reverse, flicker reduction, noise reduction, time display, hour meter
- Power Input:
- Terminals: XLR 4-pin or terminal block 2-pin jack
- Input: DC +11V ~ +17V
- Consumption: Power Consumption Approx. 11W (body only)
- Operating Temperature: Approx. 0° - 40°C (32°-104°F)
- Dimensions: 4.0" x 4.6" x 4.4" (102 x 116 x 113mm)
- Weight: Approx. 2.2 lbs. (1,100g)
- Related Accessories: Canon RC-V100 Remote Controller, Canon EF Lenses
