Altinex DA1907LX [RESTOCK ITEM]
VGA Distribution Amplifier, 1-In 2-Out

OUR PART #:  DA1907LX-RST-03

The DA190LX (Ditto-Amp) is a high resolution...
Learn More
Sale Price: $103.01
List Price: $153.00
You save 33%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Altinex DA1907LX [RESTOCK ITEM]
Qty:
In Stock
Similar Products

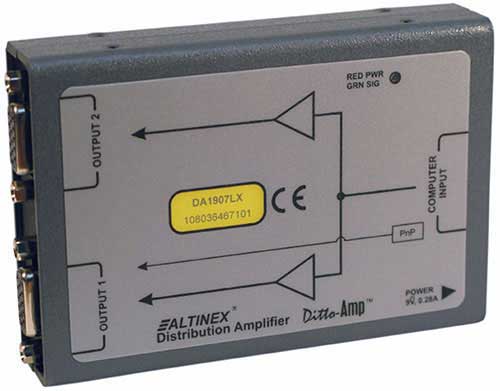

The DA190LX (Ditto-Amp) is a high resolution, 1-in 2-out Distribution Amplifier designed to allow the connection of a single VGA-UXGA source to up to two scan-rate compatible displays. Very high-resolution video signals are able to pass without degradation in the image quality.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

The DA190XL offers a female 15-pin HD input featuring native plug & play compatibility with output 1. An internal plug & play memory option may be selected at purchase for applications where using the plug & play feature of the remote device is not desired.

Compact and easy to use, the DA190LX is perfect for audio-visual installations where a single computer needs to be connected to a projector (or presentation monitor) and a local monitor simultaneously. The DA190LX has female 15-pin HD (VGA-type) connectors on all input and output connectors so it can be used with readily available standard VGA type cables. If desired, the input and/or output of the DA190LX can be easily adapted to 5BNC connectors through Altinex adapter cables.

The DA190LX is compatible with RGsB, RGBS, and RGBHV signal types, and using the proper cable type the DA190LX can be used with MAC, SUN, or SGI platform computers.

Altinex DA1907LX Distribution Amplifier Features:

  • Two buffered outputs
  • Ideal for use with LCD/Plasma/DLP Projectors
  • VESA DDC (EDID) pass through output #1
  • Comes with 3-foot male to male VGA input cable
  • Compact design
  • Solid metal enclosure
  • PNP internal/By-pass
  • External Power Supply (9V 500mA) included)
  • Includes: (1) power adapter, 3ft male-to-male VGA cable

Altinex DA1907LX Distribution Amplifier Specifications:

  • Input Connector: 1 x 15-pin HD female
  • Outputs 1 & 2: 2 x 15-pin HD female
  • DC Power: 1 x 2.5mm jack
  • Compatibility
    Signal Types: RGB, RGsB, RGBS, RGBHV, YPbPr, MAC, SUN,SGI
    VideoSignal Resolution: VGA-UXGA; 480p-1080i
  • Input Video Signal
    Analog Signal Level: 1.5V p-p max
    Impedance: 75ohms
    Coupling: DC
  • Input Sync Signal
    Horizontal/Vertical or Composite: TTL (+/-)
    Syncon Green: -0.3V
    Impedance:10k ohms
  • Output Video Signals
    Gain: 0dB +/-0.5dB
    Impedance: 75ohms
    Coupling: DC
  • Output Sync Signals
    Horizontal/Vertical or Composite: TTL (+/-)
    Syncon Green: -0.3V
    Impedance:10k ohms
  • Power Consumption
    ExternalAdapter: 9VDC, 280mA (2.5W max.)
  • Dimensions (W x H x D): 4.5" x 3" x 1"
  • Weight: 0.5 lbs (1 lb shipping)
  • Material: 0.1" aluminum
  • Finish: Gray
  • Top Panel: Lexan
  • Operating Temperature: 10°C-35°C
  • Maximum Temperature: 45°C
  • Humidity: 90% non-condensing
  • MTBF (cal.): 40,000 hours
  • Accessories Included:
    1 x Power Adapter, 1.1A
    1 x 3ft Video cable (15-pin HDM-M)
  • Optional: MB1001 "L" shaped mini-brackets
