Applied Microphone (AMT) Q7-LS
Wireless Instrument System

OUR PART #:  Q7-LS

The Applied Microphone Technology Q7-LS is a wireless microphone system for saxophones.
Learn More
Selected Model Price: $869.00
List Price: $1,089.00
Save up to 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Applied Microphone (AMT) Q7-LS
Select a Model: (shipping times are approximate)
Qty:

Similar Products

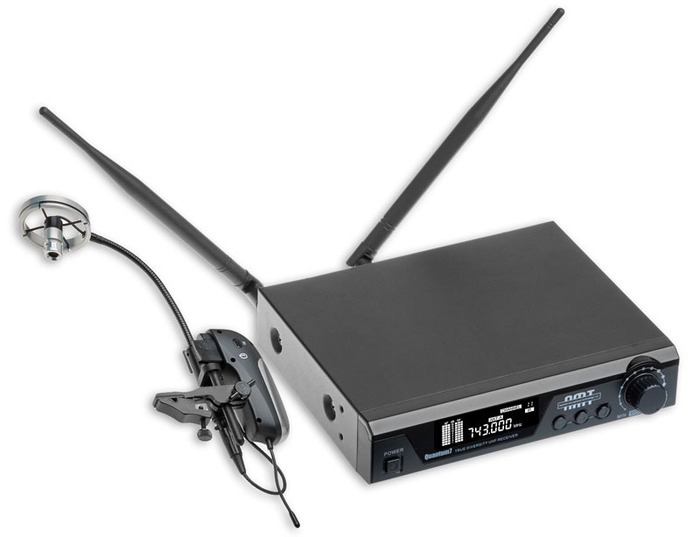

The Applied Microphone Technology Q7-LS is a wireless microphone system for saxophones. It comes with Quantum7 Wireless system, AA powered clip-on transmitter, true diversity 99-channel receiver, AMT LS sax microphone, rack-ears, and extension cables.

The AMT Quantum 7 is a high quality diversity wireless system designed for musical instruments. With 100 channels to choose from (region dependent) the system is simple to use while providing professional quality sound. The Q7 works with all past and present AMT models that include a disconnect (D.C .T.). Clip on the transmitter to create an operating environment free of belt packs and wires. The receiver is a true diversity design allowing the wireless reception up to approximately 100 meters. The receiver is constructed with a rugged metal chassis which includes both a 1/4 in and XLR output. It includes high quality transient response, no delay, no background noise, with multi-level narrow band filter technology.

Applied Microphone Technology Q7-LS Comes With:

  • Quantum7 Wireless system
  • AA Powered Clip-On Transmitter
  • True Diversity 99-Channel Receiver
  • AMT LS Saxophone Microphone
  • Extension Cables

Applied Microphone Technology Q7-LS Features:

  • True diversity for maximum distance
  • PLL frequency stabilization system
  • 100 preset adjustable frequencies
  • IR sync from receiver to transmitter
  • LCD display of Radio Frequency (RF) and AudioFrequency (AF)
  • EIA standard 1/2 U metal chassis
  • Rack mountable
  • Designed specific for acoustic musical instruments
  • Large analog style volume control for quick and easy access

AppliEd Microphone Technology Q7-LS Specifications:

  • Comprehensive Performance:
    • Frequency Range: 600-928 MHz
    • Modulation Mode: FM
    • Dynamic Range: > 100 dB
    • Frequency Response: 60 Hz - 17 KH z +/- 3 dB
    • Total Harmonic Distortion: 105 dB
    • Power Supply: DC 12V-18V / 500 mA
    • Dimensions:210 x 170 x44 mm
    • Audio Output: 1X XLR socket, 1X 6.3 mm jack socket
  • Transmitter:
    •  Frequency Range: 600 - 928 MHz
    •  RF Power: 10mW
    •  Microphone Type: Condenser
    •  Directivity: Cardioid
    •  Deviation: +/- 48 KHz
    •  Antenna: 1/ wave Length wire type
    •  Battery Voltage: 1.5 V (1x1.5V AA Battery)
    •  Power Consumption: 12-14 hours, battery-dependent
