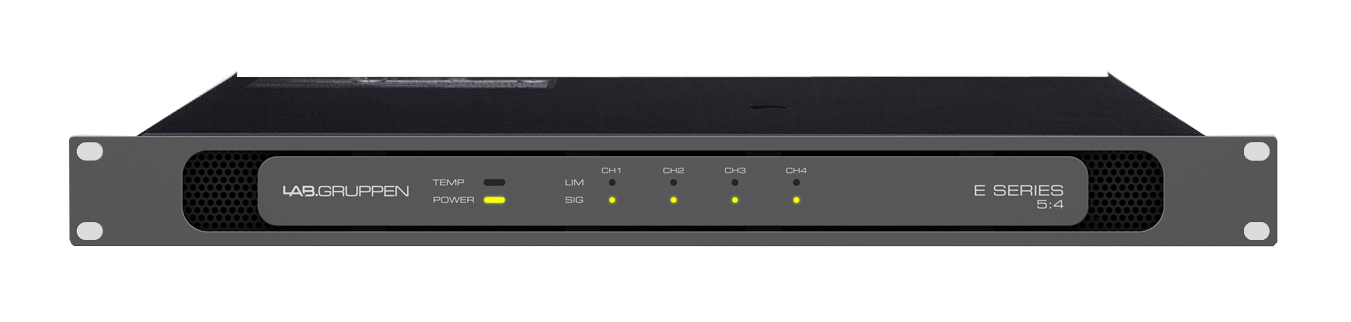

Lab Gruppen E 5:4
4-Channel Amplifier, Delivering 4x125 W At 4, 8, Or 16 Ohms Or 70 Vrms

OUR PART #:  E5-4

E Series is Lab.gruppen’s IDEEA (IntelliDrive Energy Efficient Amplifier) technology.
Learn More

Call for price! Not available online.

Similar Products

E Series is Lab.gruppen’s IDEEA (IntelliDrive Energy Efficient Amplifier) technology. Based around a patented Class D variant output stage, IDEEA produces high power levels with very low distortion while drawing minimal mains current.

Lab.gruppen’s proprietary Rail Sensing Limiter (RSL™), also exclusive to E Series, greatly reduces signal clipping to ensure high quality audio output at all times. User configurable for Hi-Z (70 V) or Lo-Z, RSL senses rail voltages and optimizes each output for instantaneous load conditions. RSL settings also facilitate asymmetric loading of the channels to optimize performance and efficiency. Total available output power can be allocated among the channels as required by the application. This makes it possible, for example, to drive a small sub on one channel, a number of 70 V ceiling loudspeakers on the second channel, and a pair of full-range low impedance loudspeakers on the two remaining channels.

Lab.gruppen E 5:4 Features:

  • High power density – 4 x 125 W in 1U
  • Certified Energy Star compliant
  • Flexible – IntelliDrive delivers similar power perchannel at 70 V or Low-Z (4, 8 and 16 ohms)
  • Asymmetric loading – Allows “mixing and matching” ofloads with different impedances to maximize both overall system efficiency andinventory utilization
  • IDEEA™ output stage based on patented Class D variant
  • Exceptionally low lifetime operating costs
  • High efficiency – Extremely low power consumption andheat output
  • Auto-standby function – Power consumption < 1 W instandby mode
  • RSL switch – Innovative circuit senses rail voltageand optimizes output for instantaneous load conditions
  • Efficient cooling – Dual temperature-controlled fan
  • Comprehensive circuit protection and fault indication

Lab.gruppen E 5:4 Specifications:

  • Number of channels: 4
  • Total output all channels driven: 500 W
  • Peak output voltage per channel: 100 V / 70 Vrms
  • Max. output current: 9.9 Arms
  • Nominal voltage: 100 - 240 VAC
  • Operating voltage: 85 - 265 VAC
  • Standby consumption: < 1 W
  • Mains connector: IEC inlet
  • Dimensions (W x H x D): 483 x 44 x 381 mm (19" x 1 Ux 15")
  • Weight: 13.2 lbs (6 kg)
  • Finish: Dark grey aluminum front and black steel chassis
