AJA 3G-AM-BNC 3G-SDI 8-Channel AES Embedder/Disembedder

OUR PART #:  3G-AM-BNC

An 8-channel AES audio Embedder/Disembedder, with support for 3G-SDI input and output up to 1080p-60...
Learn More
Our Price: $795.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc 3G-AM-BNC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

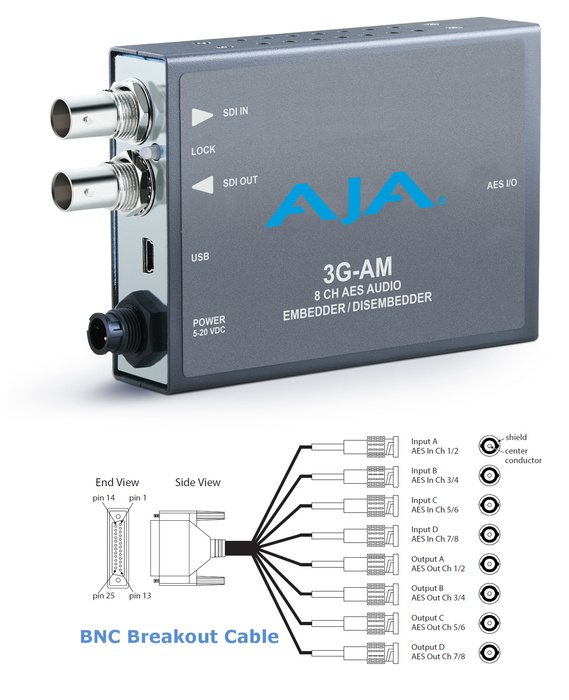

An 8-channel AES audio Embedder/Disembedder, with support for 3G-SDI input and output up to 1080p-60, AJA's 3G-AM-BNC also features audio disembedding that is always functional, providing 4 AES outputs, and includes a supplied BNC breakout cable, offering BNC connectivity. Its integrated audio embedding is user-selectable, allowing you to either pass 3G-SDI input audio or to embed input AES audio from the breakout cable, on a channel-pair basis. The onboard AES inputs feature sample rate conversion to a rate of 48KHz, that's synchronous to the video input, and it is designed to automatically detect and configure to the input video standard.

USB and Mini-Config Support
You can employ AJA's free Mini-Config software with any USB-enabled AJA Mini-Converter, which then provides an easy-to-use graphical interface with detailed information regarding current I/O formats. You also have control over all the parameters of any supported AJA Mini-Converter, and the ability to load firmware updates from AJA to bring in newer features and functionality.

Universal Power Supply
All AJA Mini-Converters are equipped with a universal power supply that has international plug connections which allow for implementation around the world.

Compact and Portable
These units are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig, and come with a locking power connector that can't accidentally pull loose. An optional P-TAP power cable (sold separately) provides battery power in remote locations.

AJA Quality - Guaranteed
All Mini-Converter units are covered by an AJA 5 year warranty, plus AJA's advanced replacement policy. If a replacement is needed, AJA will ship a new unit immediately without the need to send the original unit back first, to ensure that you are up and running again as soon as possible.

AJA 3G-AM-BNC Features:

  • 3G-SDI Embedder/Disembedder
  • 8-Channel AES I/O
  • Supplied breakout cable with BNC connectors
  • USB connectivity via AJA MiniConfig software
  • Dipswitch configuration
  • 5-20VDC Power

AJA 3G-AM-BNC Specifications:

Video Input:

  • SDI, 1x BNC:
    • HD SMPTE 292/296M
    • SD SMPTE 259M
    • 3G SMPTE 424/425M

Input Formats:

  • 1 x 3Gb SDI (level A or B):
    • 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 2048x1080psf 23.98, 24, 25, 29.97, 30
    • 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 1920x1080psf 23.98, 24, 25, 29.97, 30
    • 1920x1080i 25, 29.97, 30
    • 1280x720p 50, 59.94, 60
  • 1 x 1.5Gb SDI:
    • 2048x1080p 23.98, 24, 25, 29.97, 30
    • 2048x1080psf 23.98, 24, 25, 29.97, 30
    • 1920x1080p 23.98, 24, 25, 29.97, 30
    • 1920x1080psf 23.98, 24, 25, 29.97, 30
    • 1920x1080i 25, 29.97, 30
    • 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1 x 270Mb SDI:
    • 525i
    • 625i

Video Output:

  • SDI, 1x BNC

Output Formats:

  • Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.
  • Video Latency (time measured between video input and video output connector):
    • SD (270 Mb) = 17.2 usec
    • HD (1.5 Gb) = 6.3 usec
    • 3G level A = 3.2 usec
    • 3G level B = 6.1 usec

Audio Inputs and Outputs:

  • AES PCM Audio, 1 x 25 pin D female connector on converter, 8 channels in, 8 channels out, selectable in pairs.
  • Breakout cable provided with 1 x 25 pin D male connector: 4 x BNC male output breakout connectors (AES3 110 ohm)
  • Audio Data Formats:
    • AES3-2003
    • SMPTE 337M
  • Digital Audio Converters:
    • 24-bit
  • Embedded Audio:
    • SMPTE 272M (SD): 20-bit, 48KHz synchronous
    • SMPTE 299M (3G/HD): 24-bit, 48KHz synchronous
    • Incoming embedded audio can be passed, removed, or overridden.
    • Up to 16 channels supported.

NOTE: 2048x1080p/psf 29.97 and 30 formats support a maximum of 8 channels embedded audio.

  • Embed Path Audio Latency (time measured between audio input and video output connector):
    • 1500 usec (SRC ON)
    • 400 usec (SRC OFF)
  • Disembed Path Audio Latency (time measured between video input and audio output connector):
    • 210 usec

User Controls:

  • External DIP switch
  • USB port used with MiniConfig software application to configure device via PC/Mac

Power:

  • +5-20VDC, 5 watts. Power Supply required, and included with purchase

Size:

  • 5.8" x 3.1" x 1" (147 x 79 x 25 mm)

Environment:

  • Operating Temperature: 32 to 104┬░ F (0 to 40┬░ C)
  • Operating Relative Humidity: 10-90% non-condensing
  • Operating Altitude: <8,000 feet (<2,500 meters)
  • Safe Storage Temperature (Power OFF): -40 to 140 degrees F (-40 to 60 degrees C)
