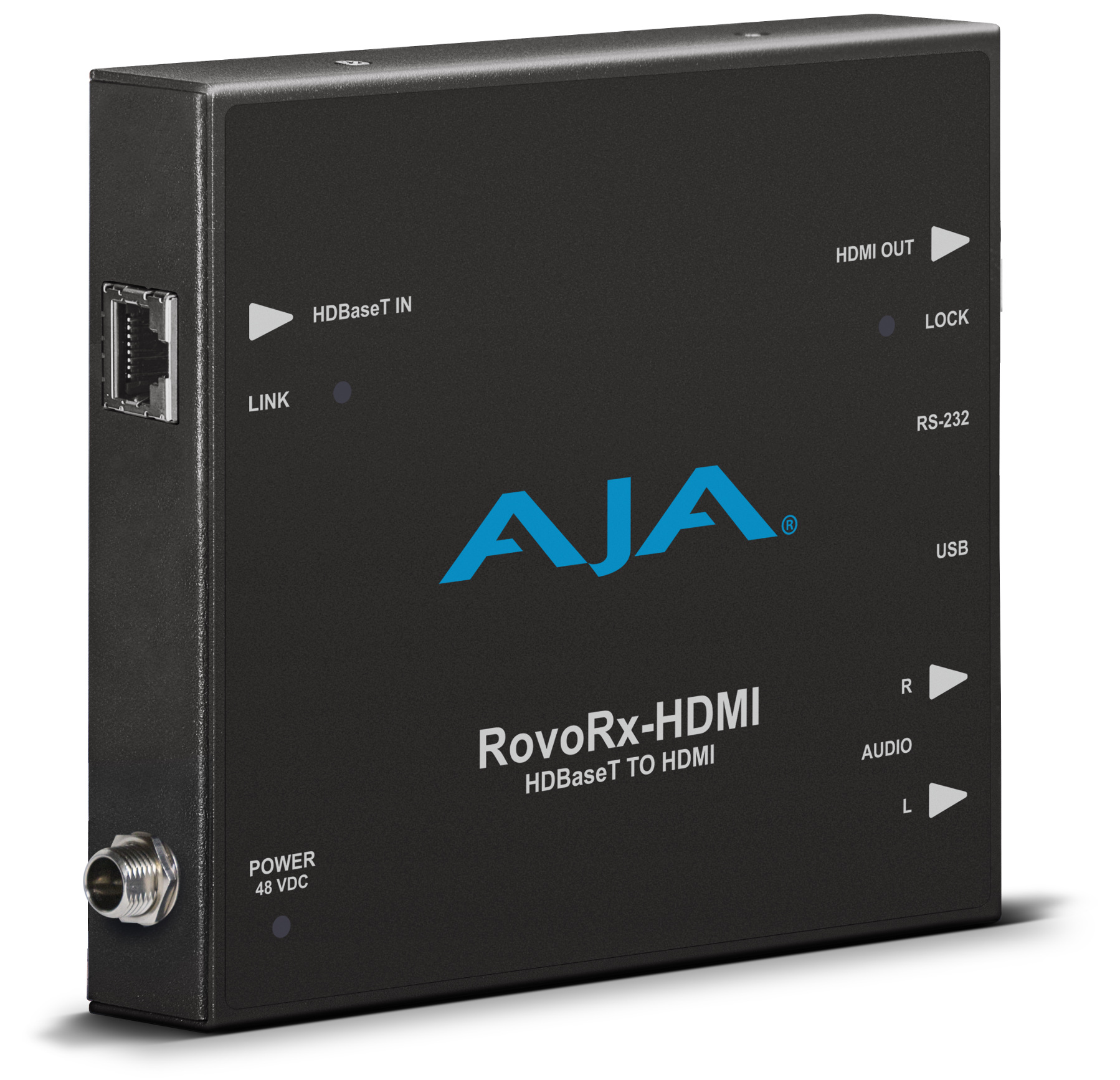

AJA Video Systems Inc RovoRx-HDMI
HDBaseT to HDMI (with PoH)

OUR PART #:  ROVORX-HDMI

An UltraHD/HD HDBaseT receiver, AJA's RovoRx-HDMI is equipped with integrated HDMI video and audio outputs specifically designed to receive RovoCam's output.
Learn More
Our Price: $495.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc RovoRx-HDMI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

An UltraHD/HD HDBaseT receiver, AJA's RovoRx-HDMI is equipped with integrated HDMI video and audio outputs specifically designed to receive RovoCam's output. It'll receive RovoCam's video and audio from a distance of up to 100m away from the camera, and outputs to HDMI TVs and devices. It's also well-suited for use with 3rd party-compatible devices that support uncompressed video, audio, power, and control, all over a single Cat 5e/6 cable, which greatly simplifies cabling and systems integration.

AJA RovoRx-HDMI Includes:

  • 1 x UltraHD/HD HDMI output
  • 1 x RCA stereo audio output
  • 1 x USB for firmware upgrades
  • 1 x RS-232 for RovoCam control
  • 1 x HDBaseT connector (RJ45)

AJA RovoRx-HDMI Features:

  • 1 x UltraHD/HD HDMI output
  • 1 x RCA stereo audio output
  • 1 x USB for signal extension*
    *future camera module firmware updates
  • 1 x RS-232 for RovoCam control or VISCA support
  • 1 x HDBaseT connector (RJ-45)

AJA RovoRx-HDMI Specifications:

  • Video Input: HDBaseT (RJ-45)
  • Video Formats*
    • (4K) 4096 x 2160P 50, 59.94, 60 (8-bit 4:2:0)
    • (4K) 4096 x 2160P 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160P 50, 59.94, 60 (8-bit 4:2:0)
    • (UltraHD) 3840 x 2160P 23.98, 24, 25, 29.97, 30
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080p 23.98, 24, 25, 29.97, 50, 59.94, 60
    • (HD) 1080i 25, 29.97
    • (HD) 720p 25, 29.97, 50, 59.94, 60
    • 525i, 625i
      *Note: Wide range of VESA formats supported for pass through see associated chart on VESA formats under "Documentation" tab above.

  • Video Output: HDMI 1.4b (as of April, 2016)
  • Video Displays: Refer to "AJA RovoRX-HDMI HDBaseT Cable Run PerformanceChart for 4K/UltraHD/HD" under "Documentation" tab above.
  • Audio Output, Analog*
    • 2 x RCA connectors, 2-channel unbalanced
      *Note: This feature only works when used in conjunction with RovoCam.

  • Audio Output, Digital:
    • 8-Channels (4 pairs) of HDMI embedded audio supported
    • Rates supported: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz
  • RS-232: 1 x 3.5mm TRS Input for RS-232/VISCA Bi directional signals
  • USB: 1 x USB for firmware and additional control
  • Power:
    • RovoRx-HDMI only: 48V @ 125mA = 6W typical, 48V @ 156mA = 7.5W max
    • RovoRx-HDMI powering RovoCam: 48V @ 271mA = 13W typical, 48V @ 312mA = 15W max
  • Physical:
    • Dimensions: 4.03" x 5.2" x 0.94" (102.4 x 132 x 23.9mm)
    • Weight: 0.44 lbs (0.2 kg)
  • Environment:
    • Safe Operating Temperature Range: 32° F to 104° F (0° C to 40° C)
    • Operating Relative Humidity: 10-90% non-condensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
    • Safe Storage Temperature (Power OFF): -40° to 140° F (-40° to 60° C)

NOTE: For more information, please refer to items under the "Documentation" tab above. All information subject to change without notice.
