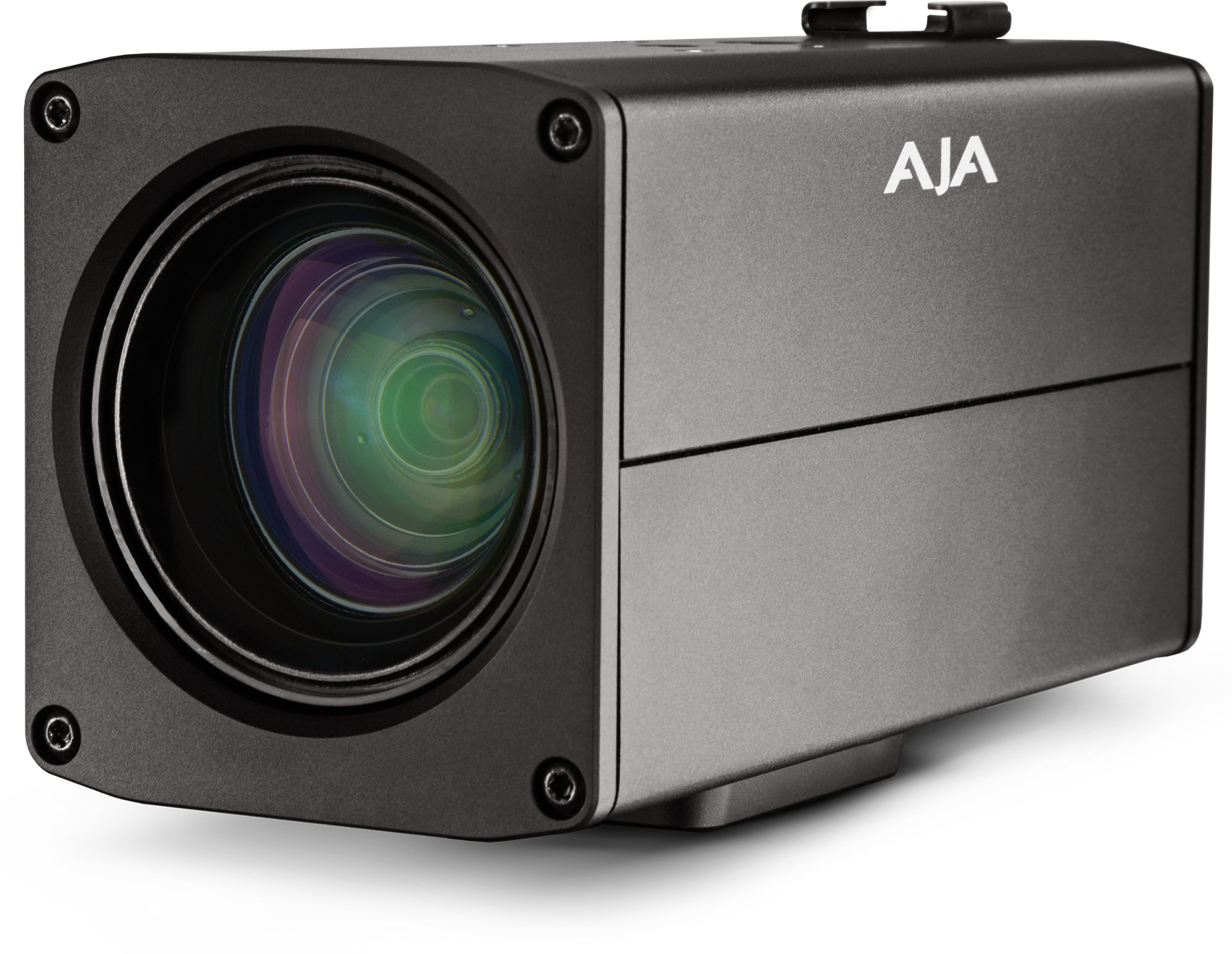

AJA Video Systems Inc RovoCam
Integrated Ultra HD/HD Camera w/HDbaseT (with PoH)

OUR PART #:  ROVOCAM

AJA's first compact block camera for corporate, industrial, security...
Learn More
Our Price: $2,495.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc RovoCam
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

AJA's first compact block camera for corporate, industrial, security, Broadcast, and ProAV applications, RovoCam works with an HDBaseT interface that supports control of 4K/UltraHD video, power, stereo audio, and RS-232 over a single Cat 5e/6 cable.

RovoRx-HDMI, the companion receiver (sold separately), provides the simplest integration with RovoCam, offering an HDMI output, stereo audio out, plus control and power.

AJA Video Systems Inc RovoCam Features:

  • Superior Optics, Simply Delivered
    The marriage of lensto delivery featured with RovoCam begins with superior Sony optics, complete with onboard 12x optical zoom and up to 20x zoom using Sony Super Resolution Zoom and autofocus or manual focus functionality; all easily controlled remotely with Sony's VISCA protocol.

Built around Sony’s 4K (Sony FCB-ER8300) camera module, RovoCam features Sony image processing, plus a back illuminated CMOS sensor for superb performance.

An integrated HDBaseT interface that supports uncompressed video, power, stereo audio, and RS-232 control over a single Cat 5e/6 cable running at lengths of up to 100 meters, helps to set RovoCam apart from other cameras inits category.

All this functionality and power delivered with single cable connectivity dramatically simplifies installation, camera setup, and footprint requirements.

  • Distance, Power and Control. All Over a Single Cable - HDBaseT iscentral to RovoCam.
    RovoCam itself includes a built-in HDBaseT transmitter. Not only does HDBaseT provide affordable long cable runs up to 100 meters over standard Cat5e/6 cables, it can also pass all of RovoCam's gorgeous UltraHD/HD imagery, 2-channel audio, camera control (including SonyVISCA protocol), plus power to the unit, all of which adds up to super installation versatility and simplicity.

Connectivity:
› 1 x HDBaseT connector (RJ-45) allowing camera interaction and control, uncompressed video, audio and power all over one Cat5e/6 cable
› 1 x 3.5mm Stereo Mic audio input
› 1 x 3.5mm RS-232input
› 1 x local power connector

Note: Power and RS-232 connections on RovoCam are not needed if those functions are supplied by the HDBaseT interface.

  • Robust, Reliable, Desirable
    Compactly encased inrugged anddurable aluminum, the reliable and practical RovoCam's small, lightweight form factor offers simple mounting in a wide variety of situations. From tripod, stage, and conference room, to security camera mounts, RovoCam can go wherever you need, and ships with a simple mount to get you going.

Compatible with Sony's popular SNCUNIHB/1 outdoor housing, RovoCam ensures reliable performance in all outdoor environments.

AJA Video Systems Inc RovoCam Specifications:

  • Camera Module: Sony FCB-ER8300
  • Video Formats:
    • (UltraHD) 3840 x 2160p 25, 29.97
    • (HD) 1080p 50, 59.94
    • (HD) 1080i 50, 59.94
    • (HD) 720p  50, 59.94
    • (SD) 720 x 480p 59.94
    • (SD) 720 x 576p 50
  • Pixel Format: YUV 4:2:2, RGB 4:4:4
  • Sensor: Progressive scan CMOS, 1/2.3 3840 x 2160 8.93 Mega Pixels
  • Lens: Focal Length: 3.9mm to 36.8mm
  • F value: 1.8 to 2.0
  • Horizontal Angle of View:
    • 70.7° (wide)
    • 6.2° (Tele)
  • Magnification: 12x optical, 20x with Super Resolution Zoom
  • Lens Control: Zoom, Focus, Iris, IRCS
  • White Balance: Auto, ATW, Indoor, Outdoor, One Push, Manual, Sodium lamp
  • Focus: Auto, Manual, One push trigger mode
  • Digital Zoom: 12x
  • Super Resolution Zoom:
    • UltraHD: 1.67x (max 20x combined with 12x optical zoom)
    • HD: 2.0x (max 24x combined with 12x optical zoom)
  • Image Processor:
    • Noise reduction (2D/3D)
    • Visibility Enhancer ICR (Day and Night) Slow AE
    • High Sensitivity
    • Gamma
    • Character Generator
    • Defog
    • Color Enhancement Picture Effect
    • Spherical Privacy Zone Masking
    • E-Flip
  • Video Output Digital:
    • HDBaseT (RJ-45, Requires Receiver Unit such as RovoRx-HDMI)
    • Cat 5e 70m (230 ft) or Cat 6a 100m (328 ft)
  • Audio Input Analog: 1 x 3.5mm TRS Input with 3V PiP (Plug in Power)
  • Control:
    • 1 x 3.5mm TRS Input for RS-232/VISCA camera control.
      NOTE: RS-232 can also pass the control from the RovoRx-HDMI unit as well.
  • User Interface: VISCA Compatible Control Software and Hardware
  • Size (WxLxH): 2.8" x 5.9" x 3.6" (Including tripod mount and coldshoe) (71 x 149.9 x  91.4mm)
  • Weight: 2.2 lbs (1 kg)
  • Power:
    • 10-12Vdc 2 pin pluggable terminal block, 0.6A max
    • 6W typical, 8W max or Power over HDBaseT
    • Conforming to IEEE802.3af-2003 mode A, 6W typical, 8W max
  • Environment:
    • Safe Operating Temperature Range: 23°F to 140°F (-5°C to 60°C)

NOTE: For more information, please refer to items under the "Documentation" tab above, or contact your Sales Pro.
