Product Overview

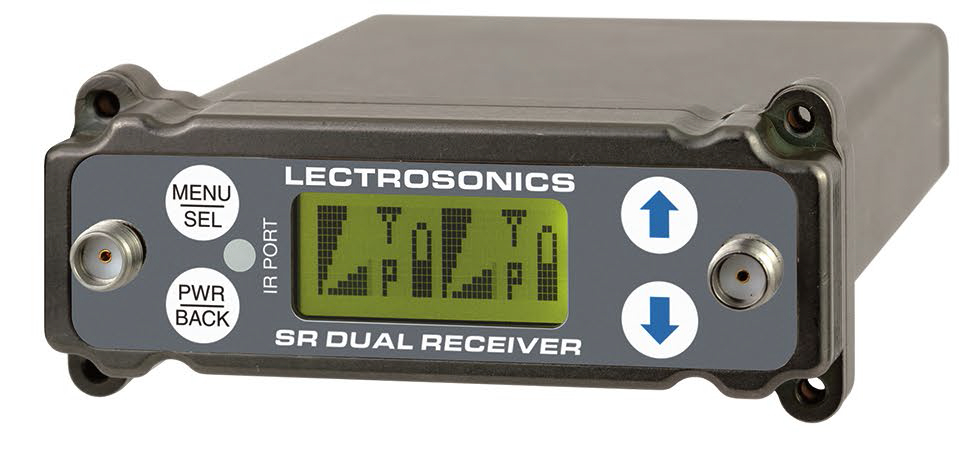

The Lectrosonics SRC consists of two separate receivers built into a single, ultra compact housing with adapters for video camera receiver slots and for stand-alone use. Digital Hybrid Wireless® technology provides superb, compandor-free audio quality and compatibility with other wireless systems. The RF performance is extremely stable over a very wide temperature range, making the receiver perfectly suited to the rough environmental conditions found in field production.
DSP compatibility modes allow the receiver to be used with a variety of Lectrosonics systems, other brands of wireless systems and with Lectrosonics IFB transmitters.
Features
- Fits camera “slots,” Lectrosonics Duopack adapter and Octopackmulti coupler, and operates stand-alone with various adapters
- Tunes over a 75 MHz range (3 blocks)
- Dual receiver design for two channels with phaseswitched diversity or single channel with ratio diversity operation
- Digital Hybrid Wireless® with compatibility modes foruse with other transmitters
- Tracking front-end filters for high performance intough RF environments
- LCD with RF spectrum scanning
- SmartSquelchTM DSP-controlled, noise based filteringand squelch
- DSP-based pilot tone for squelch control
- IR sync port for quick transmitter setup (LMb, LT,HHa, HMa, & SSM)
- SmartTune operation for quick and confident frequency selection
Specifications
- Operating Frequencies:
- Band A1: 470.100 - 537.575 MHz
- Band B1: 537.600 - 614.375 MHz
- Band C1: 614.400 - 691.175 MHz
- Block 941: 941.525 - 959.825 MHz
- Frequency selection steps: Selectable; 100 kHz or 25 kHz
- Receiver Type: Dual conversion, superheterodyne
- IF Frequencies:
- Ch. 1: 248.450 MHz and 350.000 kHz
- Ch. 2: 243.950 MHz and 250.000 kHz
- Frequency Stability: ±0.001 %
- Front end bandwidth: 20 MHz @ -3 dB
- Sensitivity:
- 20 dB SINAD: 1.0 uV (-107 dBm), A weighted
- 60 dB Quieting: 2.2 uV (-100 dBm), A weighted
- Squelch quieting: Greater than 100 dB typical
- AM rejection: Greater than 60 dB, 4 uV to 1 Volt
- Modulation acceptance: 85 kHz
- Image and spurious rejection: 85 dB
- Third order intercept: 0 dBm
- Diversity methods:
- SmartDiversityTM phased antenna combining with two seperate audio channels
- Ratio Diversity using both receivers for a single audio channel
- FM Detector: Digital Pulse Counting Detector operating at 250 and 350 kHz
- RF spectrum analyzer: Coarse and fine scanning modes for RF spectrum site survey
- Antenna inputs: 50 Ohm; SMA female connectors
- Audio output connectors:
- Interchangeable D connector adapters or camera slot interfaces
- Dual TA3 male (mini XLR) balanced output adapter
- Balanced output adapter with fixed cables
- Front panel audio output (5P model): Control panel TA5M with two balanced outputs
- Audio output level: Adjustable -50 to +5 dBu in 1 dB steps; unbalanced output is 6 dB lower
- Audio channel crosstalk: -80 dB or better
- Front Panel Controls and Indicators:
- Sealed panel with membrane switches
- LCD monitors pilot tone; antenna phase, receiver battery level; transmitter battery status; audio level, RF level
- Audio test tone: 1 kHz, -50 dBu to +5 dBu output (bal); 1% THD
- Phase invert: Audio output phase normal or inverted
- SmartNR (noise reduction): OFF, NORMAL, FULL modes (available in Digital Hybrid mode only)
- Audio Performance (overall system):
- Frequency Response: 32 Hz to 20 kHz (+/- 1dB)
- THD: 0.15% (system) typical in Digital Hybrid mode
- Powering and current consumption; Min. 7 V to max. 18 Volts DC; 2.6 W:
- 145 mA at 18 VDC
- 290 mA at 7 VDC
- Transmitter battery type Selection: 9V alkaline, 9V lithium, AA alkaline, AA lithium, NiMH
- Runtime with SRBATTSLED adapter: 7.2 V, 2200 mAH “L” style battery will typically provide over 7 hours of operation
- Transmitter battery level tracking: LCD display with battery icon or timer readout
- Operating temperature: -20°C to +50°C
- Weight: 225 grams (7.9 ozs.) with SREXT adapter
- Overall dimensions (W x H x D): 2.92 x 1.22 x 4.93 in. (74 x 31 x 125 mm)
