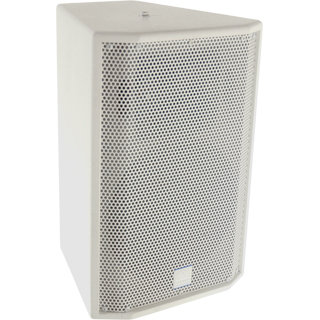

Grundorf AC-10-W-U Altar Clarity Series 10" 2-Way Loudspeaker with U-Bracket, White

OUR PART #: AC-10-W-U MFR #: AC-10-W-U

Copied to clipboard

Grundorf's AC-10-W-U is the Altar Clarity™ Series AC-10 loudspeaker finished in white and supplied with a U-Bracket. ...Read more

Grundorf AC-10-W-U Altar Clarity Series 10" 2-Way Loudspeaker With U-Bracket, White Image 1
Grundorf AC-10-W-U Altar Clarity Series 10" 2-Way Loudspeaker With U-Bracket, White Image 2
Grundorf AC-10-W-U Altar Clarity Series 10" 2-Way Loudspeaker With U-Bracket, White
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Grundorf's AC-10-W-U is the Altar Clarity™ Series AC-10 loudspeaker finished in white and supplied with a U-Bracket. This loudspeaker employs a two-pole crossover and a pattern-controlled rotatable horn for accurate and smooth sounding musical performances and the spoken word. This AC-10 also features a 13-ply Baltic Birch enclosure and component concealing grille for visual aesthetics and protection, and is well suited for houses of worship, smaller meeting/presentation facilities, and similar spaces where live music production demands a higher output performance.

Grundorf AC-10 Altar Clarity Series Loudspeaker Specifications:

  • Power Handling:
    • RMS: 150 Watts
    • Program: 300 Watts
    • Peak to Peak: 600 Watts
  • Frequency Response: 70 Hz - 18 kHz
  • Sensitivity (1 W @ 1 M): 99dB SPL
  • Nominal Impedance: 8 Ohms
  • Dispersions:
    • Horizontal 90°
    • Vertical 40°
  • Components:
    • Low Frequency Driver: 10" cone
    • Magnet Material: Ferrite
    • Cone Material: Weather-Treated paper
  • Components:
    • High Frequency Driver: 1" Compression Driver
    • High Freuqncy Horn: 90° x 40°
  • Crossover Type: Passive
  • Crossover Frequency: 2.8 kHz
  • Enclosure Type: Trapezoidal 15°
  • Enclosure Material: 13-ply Baltic Birch
  • Enclosure Construction: Dado and Rabbet Joinery
  • Enclosure Finish: Textured Black
  • Grille: Cloth covered, powder-coated, perforated steel
  • Connectors: 5-way binder
  • Dimensions: 19.25" H x 12.63" W x 12.75" D (488.95 x 320.80 x 323.85 mm)
  • Weight: 26.5 lbs (11.9 kg)
  • Shipping dimensions: 22.25" H x 16.75" W x 16.00" D (565.15 x 425.45 x 406.40 mm)
  • Shipping weight: 32.5 lbs (14.6 kg)
