Product Overview

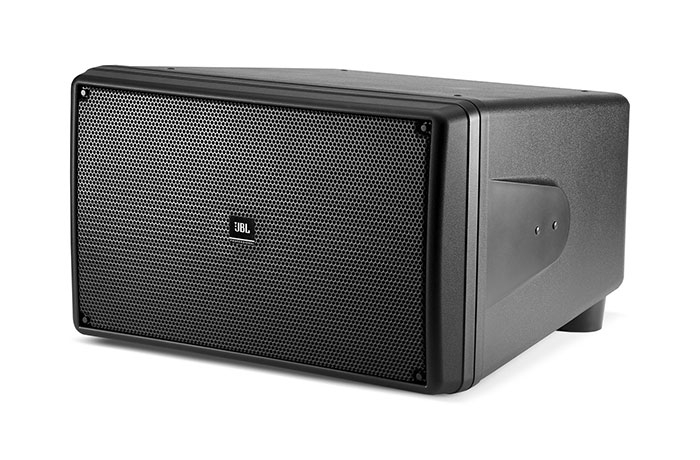

The JBL Control SB2210 provides low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market.
Includes
- 1 pc MTC-PC2 input panel cover, 4 pcs floor standing feet 4 pcs beveled washer
- MTC-210UB (Black) or MTC210WH (White) mounting U-Bracket (Sold Separately)
- MTC-SBT300 70V/100V Transformer, 300W multi-tap, installs onto inside of back input panel using included 4 studs (Sold Separately)
JBL Control SB2210 Features:
- (2) 250 mm (10 in.) Woven Fiberglass Cone LF Drivers
- 500 Watts Power handling
- Frequency Response Down to 38 Hz
- (13) M6 Insert Points Including Inserts for Optiona lU-Bracket
- Compact, Low Profile Design
JBL Control SB2210 Specifications:
- Frequency Range (-10 dB): 38 Hz - 500 Hz
- Frequency Response (-3 dB): 48 Hz - 95 Hz
- Power Rating:
- 500W (2000W peak) Continuous Pink Noise (2 hrs)
- 1000W Continuous Program (2 hrs)
- 400W (1600W peak) Continuous Pink Noise (100 hrs)
- Maximum Input Voltage: 60.0VRMS (2 hrs), 120V peak
- Sensitivity: 95 dB, 1W @ 1m in half-space (2p loading, average 50 – 90 Hz)
- Max SPL: 122 dB in half-space (2p loading)
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 7.2 Ohms at 160 Hz
- Recommended Filter: 45 Hz, 24 dB/oct high-pass filter
- Low Frequency: Two 250 mm (10 inch) diameter LFdrivers, long-excursion design, woven fiberglass cone, highly damped butylrubber surround, linear suspension spider , high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring.
- Enclosure Material: High Impact PolyStyrene (HIPS) with 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance.
- Grille: Thermoset composite coated steel,zinc-plated, 3-layer foam backing.
- Environmental: P-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity,salt spray, temperature and UV. Passes Mil-STd-202F for salt spray.
- Terminals: Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection.
- Agency Rating: ROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876.
- Dimensions (H x W x D): 355 x 590 x 570 mm (14 x 23.3x 22.5 in.)
- Net Weight: 23.31 kg (51.4 lb)
- Shipping Weight: 25.85 kg (57.0 lb)
- Included Accessories: 1 pc MTC-PC2 input panel cover, 4 pcs floor standing feet 4 pcs beveled washers.
