ILA Support Extension Bar in Black Finish


Sale Price: $613.45
List Price: $970.00
You save 37%! (Low Price Guarantee)
In Stock

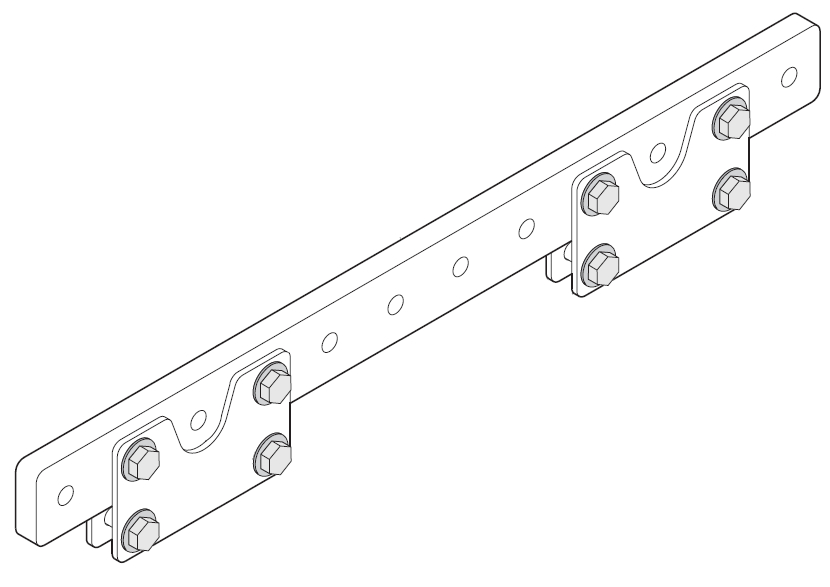

Designed for use with QSC's Installation Line Array (ILA) products, the EB2082-i extension bar allows for the WL118-sw* to be suspended behind WL2082-i* in situations where trim height is limited, and can also support suspension where the center of gravity is beyond the limits of the FB2082-i*.

Shackle holes accept 3/4" (20 mm) screw pin anchor shackles.

*Sold separately.

Note: This listing is for a single EB2082-i extension bar only. All speakers and other array suspension products shown in photo above are sold separately

This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

QSC EB2082-i Specifications:

  • Material: Aluminum 6061-T6
  • Finish: Black powder coat
  • Weight: 38 lbs (17.3 kg)
  • Working Load Limit Information (static loads only)†:
    • 7:1 Design Factor: 1714 lbs (779.2 kg)
    • 10:1 Design Factor: 1200 lbs (545.5 kg)
    • 12:1 Design Factor: 1000 lbs (454.5 kg)

†Note: Working Load Limits are per fastener loaded in double shear. Data is for informational purposes only.


Add to Cart

We're sorry, only of this item available

Call a Sales Pro at 800-356-5844 for more information
