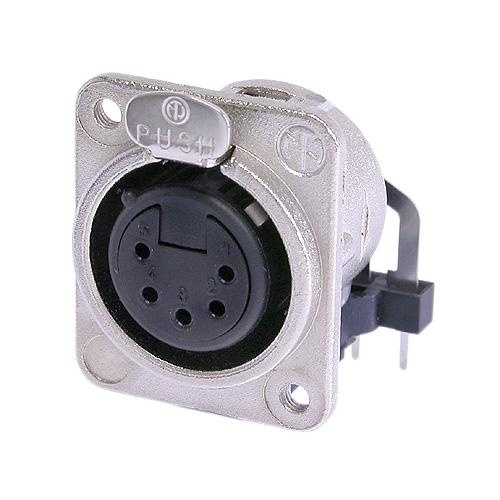

Neutrik NC5FDM3-H
5 Pin Female XLR Panel Mount Connector, Nickel

OUR PART #:  NC5FDM3-H

Neutrik's NC5FDM3-H is a universal D-size, 5-pin XLR-F panel mount connector.
Learn More
Sale Price: $8.99
List Price: $13.99
You save 36%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC5FDM3-H
Qty:
Similar Products

Neutrik's NC5FDM3-H is a universal D-size, 5-pin XLR-F panel mount connector. This 5-pole XLR female receptacle features silver contacts, M3 mounting holes, and comes in a nickel housing.

Neutrik NC5FDM3-H Female XLR Panel Mount Connector Features:

  • Robust "D" metal shell
  • Standardized 24 mm panel cutout
  • PCB mount termination

Neutrik NC5FDM3-H Female XLR Panel Mount Connector Specifications:

Electrical Specifications

  • Capacitance between contacts: = 7 pF
  • Contact resistance: = 5 mOhms
  • Dielectric strength: 1.5 kVdc
  • Insulation resistance: > 10 GOhms (initial)
  • Rated current per contact: 7.5 A
  • Rated voltage: < 50 V

Mechanical Specifications

  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: Horizontal PCB mount
  • Locking device: Latch lock
  • Mounting direction: Rear mounting
  • Chassis shape: D
  • Mounting: Mounting holes with M3 threads

Material Specifications

  • Contact plating: 2 µm Ag over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30% GR)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel

Environmental Specifications

  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30°C to +80°C (-22ºF to +176ºF)
