RDL DB-J2 Line Input Assembly, RCA Jacks, Terminal Block, Black

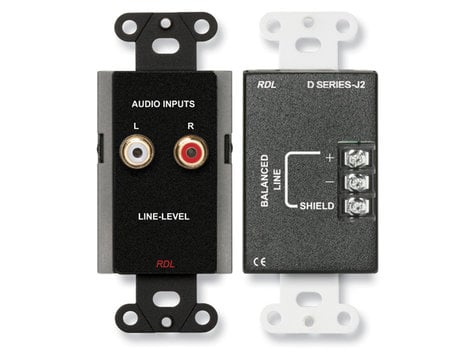

The DB-J2 from RDL is a complete unbalanced audio input panel assembly. The front panel features two phono jacks intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. A balanced line-level output is provided on the rear-panel terminal block for connection to 10 kOhm or higher input impedance line level module or equipment inputs. The back of this line input assembly is finished with a metal enclosure clearly labeled for easy installation.

The DB-J2 fits directly into back boxes (sold separately) to fit cabinets or US or international walls. They may be mounted directly into cabinets or most standard US single gang electrical boxes.

RDL DB-J2 Line Input Assembly Features:

• Wall mounted line-level audio input panel
• Gold plated phono jacks
• Hum cancellation on unbalanced line inputs
• Transformer isolation for unbalanced line inputs
• Balanced output for unbalanced line inputs

RDL DB-J2 Line Input Assembly Specifications:

• Finish: Black
• Input Connectors (2): Phono jacks with gold contacts
• Output Connector: Terminal block
• Output Connections (3): +, -, SHIELD
• Frequency Response (line in): 30 Hz to 20 kHz (±1 dB)
• Power Requirement: Passive
• Dimensions: 4.13" H x 1.7" W x 2.15" D (10.49 x 4.32 x 5.47 cm)
• Mounting Box Req.: 1.80" W x 1.75" D (4.57 x 4.45 cm)
• Shipping Weight: 0.475 lbs (0.216 kg)
• WEEE weight: 0.325 lbs (0.148 kg)
• Tariff code: 8536.69.4030
