Manfrotto 504HD PROMO

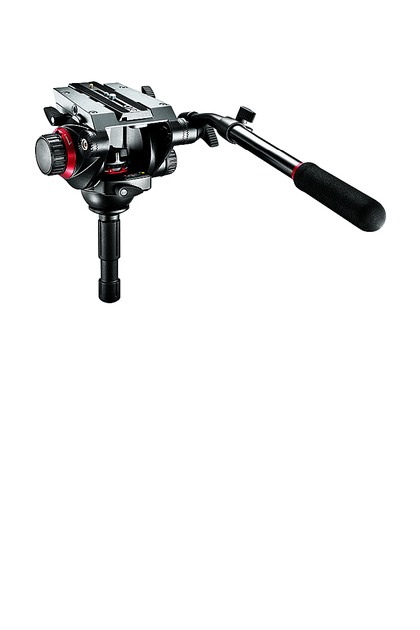

Pro Fluid Video Head with 75mm Hemisphere

OUR PART #:  504HD-PROMO

The Manfrotto 504HD video fluid head is a perfect balance of design and performance.
Learn More
Our Price: $399.99
List Price: $440.00
You save 9%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Manfrotto 504HD PROMO
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Manfrotto 504HD video fluid head is a perfect balance of design and performance. The bridge design improves the head's rigidity and its PAN friction control is fast, simple to fine-tune and protected from knocks. All structural components are made from aluminium, with the PAN axis rotation unit using ball bearings to obtain smooth, totally vibration-free controlled movements that can be directly adjusted using the head's FDS variable friction system. FDS on both the PAN and TILT axes also ensures that the head works perfectly at all temperatures, with all types of equipment and under all loads. Ergonomically improved lever and dial designs combine with the new friction index to give you complete control over the 504HD.

NOTE: This is a special promotion for a limited time. For more information on this and other products, please contact your Sales Pro.

The 504HD has been designed to offer a load capacity of up to 7.5kg (16.5lb) making it suitable for a huge range of camera equipment.  The CBS counterbalance system has 4 presets for a full range of camera weights (0, 2.5kg-5.5lb, 5kg-11lb and 7.5kg-16.5lb). Leveling the head is easy thanks to the 75mm diameter hemisphere and the back-lit bubble level. Two 3/8” threads on the top plate allow accessories (such as monitors and arms) to be directly and securely attached to the head, which helps cut down set-up time, keeps your camera hot shoe free and, saves you from using another clamp. The 504HD is suitable for Manfrotto PRO series video tripods with mid-level or ground spreaders and for carbon fiber single-leg MPRO tripods.

Manfrotto 504HD Features:

  • Wider, longer platform for your camera and accessories.
  • High rigidity structure delivers maximum response and strength.
  • Ergonomic controls for easy use in all conditions.
  • Easy-link connections for accessories.
  • 4-step counterbalance system ensures a quick set-up with optimal balance.
  • Ball Bearing drag system for precise, smooth movements.
  • Light weight modern materials for optimum balance of strength and weight.

Manfrotto 504HD Specifications:

  • Additional Pan Handle: 509HLV
  • Attachment: 3/8'' male thread
  • Attachment Number: 1/4'' and 3/8'' screws
  • Balance Control: 4 step: 0 lbs - 5.5 lbs - 11lbs - 16.5 lbs
  • Center Of Gravity: 2.16" (55 mm)
  • Counter Balanced Weight: 16.53 lbs (7.5 kg)
  • Front Tilt: -60° / +90° tilt range
  • Half Ball Diameter: 2.95" (75 mm)
  • Independent Pan Lock: yes
  • Independent Tilt Lock: yes
  • Levelling Bubble:  illuminated
  • Maximum Working Temperature: 140° F
  • Minimum Working Temperature: -4° F
  • Pan Bar Positions: 2
  • Pan Bars Included: 1
  • Pan Drag: continuously adjustable from 0 to max level
  • Panoramic Rotation: 360°
  • Plate Type: 504PLONG
  • Quick Release: yes
  • Safety Payload Weight: 26.46 lbs (12 kg)
  • Secondary Safety System: yes
  • Sliding Travel of Plate: 3.27" (83 mm)
  • Tilt Drag: continuously adjustable from 0 to max level
  • Weight: 6.39 lbs (2.9 kg)
  • Working Height: 6.1" (15.5 cm)
