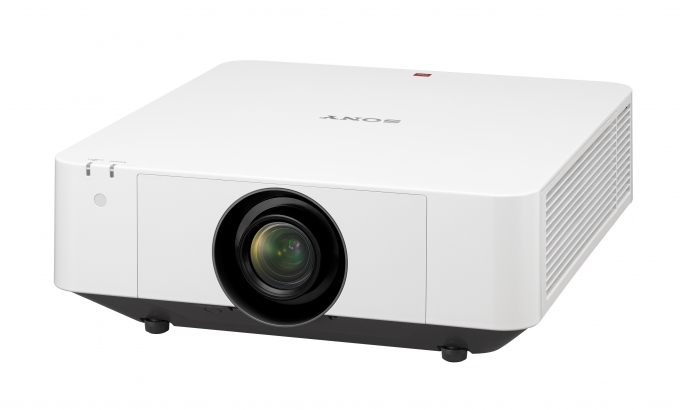

Sony VPLFW60
5800 Lumen XGA LCD Projector, with 1.6x Lens

OUR PART #  VPLFW60

Our Price: $2,799.00
List Price: $4,500.00
You save 38%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Sony VPL-FW60 installation projector is ideal for a wide range of business, education and entertainment applications. The energy-efficient High Pressure Mercury (HPM) lamp source is teamed with Sony's advanced BrightEra 3LCD projection engine to deliver extremely bright, crisp WXGA resolution images with powerful 5200 lumens maximum light output and rich, stable colours. Reality Creation and Contrast Enhancer technologies fine-tune image quality even further to assure exceptional clarity and realism with every presentation.

Sony VPL-FW60 Projector Features:

  • Very high image quality with BrightEra 3LCD projection engine
  • Advanced picture refinement technologies
  • Crisp WXGA image quality
  • Hassle-free automatic filter cleaning
  • Energy-saving Lamp Dimming mode
  • Powered Wide Lens Shift
  • Included powered standard zoom lens plus wide choice of lens options
  • Supports HDBaseT
  • Create super-size displays with Edge Blending
  • Project onto non-flat surfaces with Image Warping
  • Quiet operation
  • Slim, attractive blend-in design
  • Picture Mode
  • Simple set-up with friendly Installation menu
  • Project Side by Side

Sony VPL-FW60 Projector Specifications:

  • Display System: 3 LCD system
  • Size of effective display area: 0.76” (19 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
  • Number of pixels: 3,072,000 (1280 x 800 x 3) pixels
  • Focus: Powered
  • Zoom - Powered/Manual: Powered (Approx. 1.6 x)
  • Throw Ratio: 1.39:1 to 2.23:1
  • Light Source:
    • Type: Ultra high pressure mercury lamp
    • Wattage: 280 W
  • Screen size: 30" to 300"(0.76 m to 7.62 m) (measured diagonally)
  • Light Output:
    • Lamp mode:
      • High: 5200 lm
      • Standard: 3400 lm
  • Color Light Output:
    • Lamp mode:
      • High: 5200 lm
      • Standard: 3400 l
  • Keystone correction: +/- 30°
  • Input:
    • INPUT A:
      • RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
      • Audio input connector: Stereo mini jack
    • INPUT B:
      • RGB input connector: Mini D-sub 15-pin (female)
      • Audio input connector: Stereo mini jack
    • INPUT C:
      • HDMI input connector: HDMI 19-pin, HDCP support
      • Audio input connector: HDMI audio support
    • INPUT D:
      • HDMI input connector: HDMI 19-pin, HDCP support
      • Audio input connector: HDMI audio support
    • VIDEO IN:
      • Video input connector: BNC
      • Audio input connector: Shared with INPUT A
    • OUTPUT A:
      • Monitor output for INPUT A connector: Mini D-sub 15-pin (female)
      • Audio output connector: Stereo mini jack
    • OUTPUT B:
      • Monitor output for INPUT B connector: DVD-D 24-pin (single link), HDCP not supported
      • Audio output Monitor out connector: Stereo mini jack
    • REMOTE: D-sub 9-pin (male) / RS232C
    • LAN: RJ45, 10BASE-T/100BASE-TX
    • IR (Control S): Stereo mini jack, Plug in power DC5V
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature: -4°F to +140°F (-10 °C to +60°C)
  • Power requirements: AC 100 V to 240 V, 3.1 A to 1.4 A, 50 Hz / 60 Hz
  • Dimensions (WxHxD): 460 x 169 x 515 mm
  • Weight: 28 lb (13 kg)
