DBX CT3 Advanced Cable Tester

OUR PART #: CT3 MFR #: DBXCT3

Copied to clipboard

The CT3 advanced cable tester from dbx goes offers much more than the run-of-the-mill cable tester. ...Read more

DBX CT3 Advanced Cable Tester Image 1
DBX CT3 Advanced Cable Tester Image 2
DBX CT3 Advanced Cable Tester Image 3
DBX CT3 Advanced Cable Tester Image 4
DBX CT3 Advanced Cable Tester
Our Price: $189.00
List Price: $228.99
You save 17%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$6/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

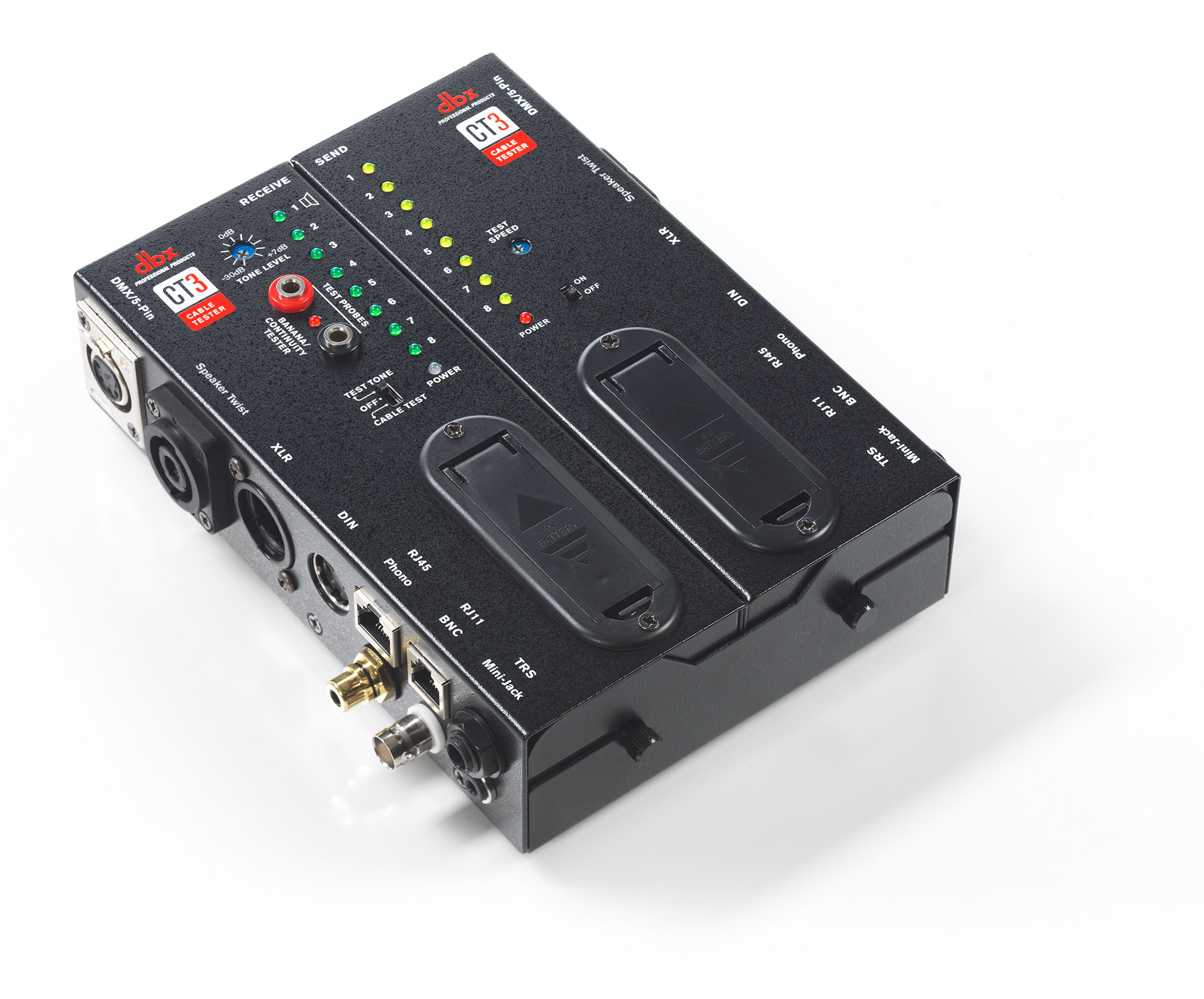

The CT3 advanced cable tester from dbx goes offers much more than the run-of-the-mill cable tester. It offers 10 of the most common connector types to test up to 8-pin cables—and can even test adapter cables and others that have different connectors on each end. It also boasts a unique "split" feature which divides the tester in two (all inputs on one part, all outputs on the other), which you can use for testing preinstalled cables. All-in-all, this portable device fits a ton of cable testing options into on rugged chassis.

Features

  • Tests up to 8-pin cables
  • Two piece chassis for testing installed cables
  • Test Tone Generator
  • Allows connection between different format connectors with ease
  • ‘Banana’ connector continuity tester with beeper and LED indicator
  • Super-rugged construction for durability and longer life
  • (2) DMX (5-pin) connectors for testing of 5 pin connections
  • (2) BNC connectors for testing of 2 pin connections
  • (2) RCA Phono connectors for testing of 2 pin connections
  • (2) XLR connectors ((1) Male, (1) Female) for testing of 3 pin connections
  • (2) MIDI (5-pin DIN) connectors for testing of 5 pin connections
  • (2) Speaker Twist connectors for testing of 4 pin connections
  • (2) Banana connectors for testing of 1 pin connections
  • (2) 1/4” (6.3mm) TRS/TS connectors for testing of 3 pin connections
  • (2) RJ45 connectors for testing of 8P8C modular connections
  • (2) 1/8” (3.5mm) TRS/TS connectors for testing of 3 pin connections

Specifications

  • Power Requirements: (2) 9V batteries, one per side (batteries sold separately)
  • Dimensions (H x W x D): 1.5" x 3.5" x 5.5" (14cm x 3.7cm x 8.9cm)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download

Product Reviews

Reviewed by 1 customer
(1 is Verified Buyers.)

Write a Review

There are no reviews to display with the selected filters.

Brandon K on 07/11/2023 Verified - This reviewer has purchased this product

I love this tester! I wish I knew it was available sooner. This comes with me everywhere I go!
