Pathway Connectivity P4850-8

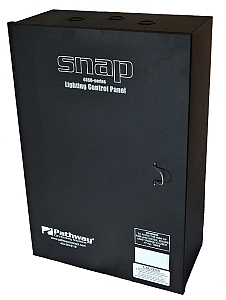

SNAP 8-Channel Relay Panel

OUR PART #  P4850-8

Our Price: $1,733.52
List Price: $1,805.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Pathway Connectivity's SNAP lighting control panel provides unified DMX512 control of 0-10V analog outputs and relay switching, all within a single enclosure.  Intended for use with fully isolated LED fixture drivers requiring mains switching and 0-10V dimming, and for Mark VII type electronic fluorescent ballasts.

Each SNAP panel consists of an LC&D GR1400-series Blue Box relay panel with a Pathway Connectivity eDIN SNAP Panel Interface card.  The interface provides single DMX channel control over the relay and analog output pairs, or allows separate DMX control of relays and analog outputs.  The interface also provides a full, non-sequential DMX soft-patch for maximum flexibility.

Pathway Connectivity 4850-8 SNAP Relay Panel Features:

  • Eight normally closed (NC) single-pole relays
  • Sixteen 0-10V analog outputs - sinking or sourcing
  • Front panel configuration or remote configuration using E1.20 RDM
  • Adjustable global DMX start address, or each output may be assigned a non-sequential DMX address
  • Analog outputs may be paired with relays for unified DMX channel control, or control of relays and analog outputs may be split by assigning different DMX addresses to each
  • Outputs may be patched to the Auxiliary Input dry contract closures
  • User-settable relay trigger thresholds
  • Test features include on-board relay test and review of incoming DMX signal
  • DMX THRU connector and termination switch
  • Relays rated for 120VAC and 277VAC - mixed voltages allowed in cabinet in accordance with NEC and local codes
  • Analog outputs rated at 100mA (sinking) and 10mA (sourcing)
  • UL-listed
  • UL924-listed

Pathway Connectivity 4850-8 SNAP Relay Panel Specifications:

  • Normally Closed (NC) Single Pole Relay ratings:
    • 30A @ 277VAC Ballast
    • 20A @ 120VAC Tungsten
    • 20A @ 347VAC Ballast
    • SCCR 18kA @ 277VAC
    • Rated for 250,000 cycles
  • 120V/277V transformer line voltage input
  • Mixed voltages allowed in cabinet in accordance with NEC and local code requirements
  • Analog Outputs rated for 100mA per channel, sinking control
  • Analog Outputs rated for 10mA (ten mA) per channel, sourcing
