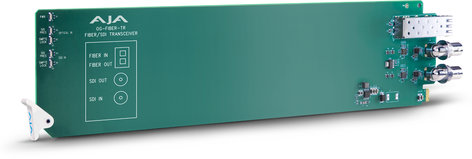

AJA Video Systems Inc OG-FIBER-TR
openGear 1-Channel SDI/Fiber to Fiber/SDI Converter

OUR PART #:  OG-FIBER-TR

The AJA OG-FIBER-TR is an openGear-compatible, state-of-the-art SDI/Fiber transceiver, with both SDI-to-Fiber and Fiber-to-SDI conversions supported.
Learn More
Our Price: $645.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc OG-FIBER-TR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA OG-FIBER-TR is an openGear-compatible, state-of-the-art SDI/Fiber transceiver, with both SDI-to-Fiber and Fiber-to-SDI conversions supported.

openGear Compatibility
The openGear standard provides assurance that AJA cards are compatible with openGear products from various other certified openGear partners. A growing list of products ensures that openGear is the future of rackframe products.

Connectivity
re-clocked with best-in-class input jitter tolerance, both Fiber and SDI inputs support SDI rates of 270Mb, 1.5Gb, and 3Gb. The 2 signal paths are independent and can be of differing rates. Also compatible with single mode fiber cable.

AJA OG-FIBER-TR Features:

  • Automatic detection and re-clocking of 270Mb, 1.5Gb, and 3Gb SDI datarates
  • Inputs: SDI, BNC connector; Fiber, LC connector
  • Outputs: SDI, BNC connector; Fiber, LC connector
  • Bypass mode: 50mb to 3gb – auto bypassing for non SMPTE rates
  • Wavelength: 1310 nm
  • Optical Power: -2dBm typical
  • Power: 2.5 watts
  • Hot-swap capable
  • Compatible with DFR-8321 and OG3 openGear frames

AJA OG-FIBER-TR Technical Specifications:

  • Video Formats: 125Mbps - 3Gbps, format agnostic
  • Video Input Digital:
    • 1 x 3G-SDI BNC, SMPTE-259/292/424
    • 1 x Single mode optical fiber, LC connector, SMPTE-297
    • Frequency: 1260-1620nm
    • Minimum Input Power:
      • 270Mbps, 1.5Gbps: -20 dBm
      • 3.0Gbps: -18 dBm
  • Video Output Digital:
    • 1 x 3G-SDI BNC, SMPTE-259/292/424
    • 1 x Single mode optical fiber, LC connector, SMPTE-297
    • Frequency: 1310nm +/-40nm
    • Typical Output Power: -5dBm
  • Cable Equalization (Belden 1694A coax):
    • 270Mbps, 350m
    • 1.5Gbps, 200m
    • 3Gbps, 120m
  • Reclocking:
    • 270Mbps, 1.483Gbps, 1.485Gbps, 2.966Gbps, 2.970Gbps - Auto Select
      All other rates are passed through and not re-clocked
  • Physical:
    • Size: openGear standard form-factor, front slot and rear card
    • Slots: 2 slots required for each card
    • Power: openGear frame compatible, 2.5 watts max per card
    • Safe Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
    • Safe Storage Temperature Range (power OFF): -40°F to 140°F (-40°C to 60°C)
    • Operating Relative Humidity :10-90% non-condensing
    • Operating Altitude: <10,000ft (<3,000m)
