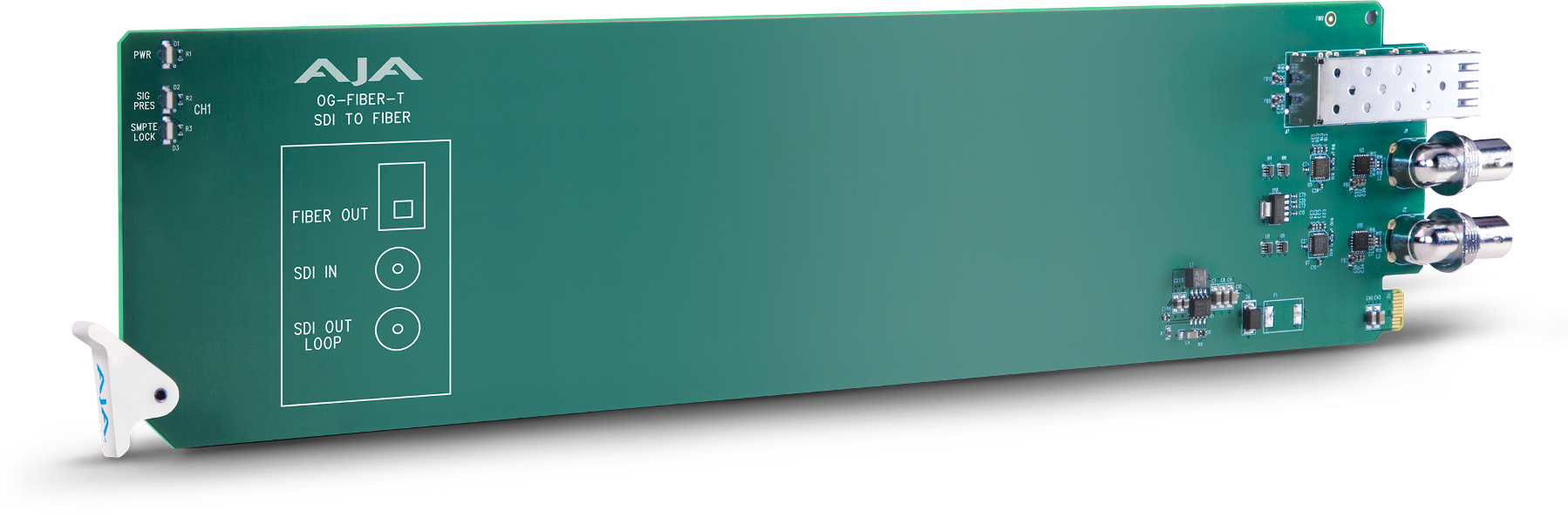

AJA Video Systems Inc OG-FIBER-T
openGear 1-Channel SDI to Fiber Converter

OUR PART #:  OG-FIBER-T

With the AJA OG-FIBER-T, you get an openGear-compatible...
Learn More
Our Price: $445.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc OG-FIBER-T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

With the AJA OG-FIBER-T, you get an openGear-compatible, state-of-the-art SDI to Fiber converter that enables the extending of SDI signals up to 10km over standard single-mode fiber optic cable. Its SDI input provides re-clocking with best-in-class input jitter tolerance. It also comes with a re-clocked looping SDI output, as well as support for 270Mb, 1.5Gb, and 3Gb SDI rates, along with single mode fiber cable.

The AJA openGear Series - Compatibility
The openGear specification ensures that AJA cards compatibility with openGear products from other certified openGear partners. An ever-growing product list gives assurance that the openGear spec is the future of rackframe products.

AJA OG-FIBER-T Features:

  • Automatic detection and re-clocking of 270Mb, 1.5Gb, and 3Gb SDI data rates
  • Inputs: SDI, BNC connector
  • Outputs: Single mode optical fiber, LC connector; SDI, BNC (loop of input)
  • Bypass mode: 50mb to 3gb – auto bypassing for non SMPTE rates
  • Wavelength: 1310 nm
  • Optical Power: -2dBm typical
  • Power: 2.5 watts
  • Hot-swap capable
  • Compatible with DFR-8321 and OG3 openGear frames

AJA OG-FIBER-T Specifications:

  • Video Formats: 125Mbps - 3Gbps, format agnostic
  • Video Input Digital: 1 x 3G-SDI BNC, SMPTE-259/292/424
  • Video Output Digital:
    • 1 x Single mode optical fiber, LC connector, SMPTE-297
    • Frequency: 1310nm +/-40nm
    • Typical Output Power: -5dBm
  • Cable Equalization (Belden 1694A coax):
    • 270Mbps, 350m
    • 1.5Gbps, 200m
    • 3Gbps, 120m
  • Reclocking:
    • 270Mbps, 1.483Gbps, 1.485Gbps, 2.966Gbps, 2.970Gbps - Auto Select
      All other rates are passed through and not re-clocked
  • Physical:
    • Size: openGear standard form-factor, front slot and rear card
    • Slots: 2 slots required for each card
    • Power: openGear frame compatible, 2.5 watts max per card
    • Safe Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
    • Safe Storage Temperature Range (power OFF): -40°F to 140°F (-40°C to 60°C)
    • Operating Relative Humidity: 10-90% non-condensing
    • Operating Altitude: <10,000ft (<3,000m)
