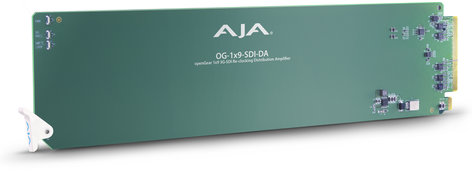

AJA Video Systems Inc OG-1x9-SDI-DA
openGear 1x9 3G-SDI Re-Clocking Distribution Amp

OUR PART #:  OG-1X9-SDI-DA

The AJA OG-1x9-SDI-DA, an openGear-compatible, state-of-the-art...
Learn More
Our Price: $495.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc OG-1x9-SDI-DA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA OG-1x9-SDI-DA, an openGear-compatible, state-of-the-art, 3G-SDI distribution amplifier provides re-clocking and distribution of incoming SD, HD, or 3G signals to each of its (9) 3G-SDI outputs. It then allows this same signal to be simultaneously sent to multiple destinations.

Connectivity
The 3G-SDI input equalizes and re-clocks with best-in-class input jitter tolerance and cable length capability, with support for SDI rates of 270Mb, 1.5Gb, and 3Gb. The card's I/O provides (1) SDI input and (9) SDI outputs. Also included is a 10-BNC rear openGear connector module.

The AJA openGear Series - Compatibility
The openGear standard gives assurance that AJA cards will be compatible with openGear products from other certified openGear partners. With an ever-expanding product list, openGear look to be the future of rackframe products.

AJA OG-1x9-SDI-DA Features:

  • Automatic detection and re-clocking of 270Mb, 1.5Gb, and 3Gb SDI data rates
  • Excellent input jitter tolerance and low jitter re-clocked outputs
  • Excellent input/output return loss
  • "Input Present" and "Input SMPTE Lock" LEDs
  • Hot-swap capable
  • Compatible with DFR-8321 and OG3 openGear frames

AJA OG-1x9-SDI-DA Specifications:

  • Video Formats: 125Mbps - 3Gbps, format agnostic
  • Video Input Digital: 1 x 3G-SDI BNC, SMPTE-259/292/424
  • Video Output Digital:
    • 9 x 3G-SDI BNC, SMPTE-259/292/424
    • (5) non-inverting outputs
  • Cable Equalization (Belden 1694A coax):
    • 270Mbps, 350m
    • 1.5Gbps, 200m
    • 3Gbps, 120m
  • Reclocking:
    • 270Mbps, 1.483Gbps, 1.485Gbps, 2.966Gbps, 2.970Gbps - Auto Select
      All other rates are passed through and not re-clocked
  • Physical:
    • Size: openGear standard form-factor, front slot and rear card
    • Slots: 2 slots required for each card
    • Power: openGear frame compatible, 2.0 watts max per card
    • Safe Operating Temperature Range: 0C to 40C (32F to 104F)
    • Safe Storage Temperature Range (power OFF):-40C to 60C (-40F to 140F)
    • Operating Relative Humidity :10-90% non-condensing
    • Operating Altitude: <3,000m (<10,000ft)
